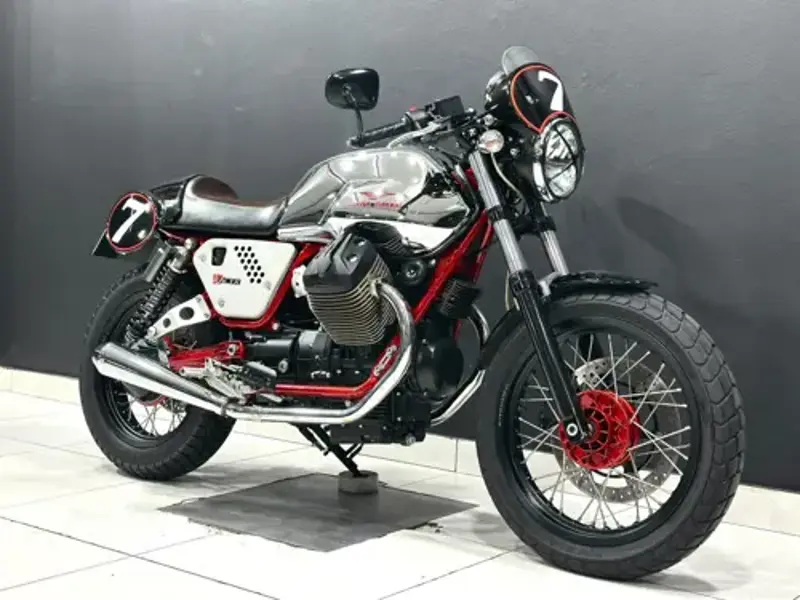

Moto Guzzi V7 Racer Specs

2013 • 1 variants

Moto Guzzi has built the V7 Racer, a classic motorcycle, across 1 variant since 2013. Under the tank sits a 90° V-twin, 744.0 cc in capacity. Torque tops out at 54.7 Nm.

About the Moto Guzzi V7 Racer

The V7 Racer represents Moto Guzzi's contribution to the Classic motorcycle segment, spanning the 2011 to 2019 production run. Our database contains detailed technical specifications for each model year, covering powertrain details, chassis geometry, suspension and braking systems, fuel capacity, and certified weight figures. Use the year navigation above to drill into year-specific data. All specifications are referenced from official Moto Guzzi documentation.

Moto Guzzi V7 Racer by Year

2013 Moto Guzzi V7 Racer View specs →

Spec Evolution

How key specs changed across production years.

Specification	2011	2012	2013	2014	2015	2019
Displacement (cc)	744.00 cc	744.00 cc	744.00 cc	744.00 cc	-	744.0 cc
Bore x Stroke (mm)	80.0 x 74.0 mm	80.0 x 74.0 mm	87.5 x 82.0 mm ↑	72.5 x 66.8 mm ↓	-	80.0 x 74.0 mm
Bore x Stroke (in,)	3.1 x 2.9 inches	3.1 x 2.9 inches	3.4 x 3.2 inches ↑	2.9 x 2.6 inches ↓	-	3.1 x 2.9 inches
Comments	Chinese made bike.	Made in China.	-	Chinese brand. Cooperating with Carpimotor in Europe.	-	-
Fuel Control	OHC	OHC	-	Single Overhead Cams (SOHC)	-	-
Seat Height	805 mm / 31.7 in.	805 mm / 31.7 in.	780 mm / 30.7 in. ↓	780 mm / 30.7 in.	780 mm / 30.7 in.	770 mm / 30.3 in. ↓
Frame Type	ALS steel tubular dismountable twin cradle	ALS steel tubular dismountable twin cradle	Double cradle tubular frame in ALS steel with detachable rear subframe	Double cradle tubular frame in ALS steel with detachable rear subframe	Double cradle tubular frame in ALS steel with detachable rear subframe	Double cradle tubular frame in ALS steel with detachable rear subframe
Dry Weight	182 kg / 401.2 lbs	182 kg / 401.2 lbs	179.2 kg / 395.0 lbs ↓	173 kg / 381.4 lbs ↓	-	-
Brakes - Front	Single disc. Bremo stainless steel disc 4 opposed calipers of differing diameters	Single disc. Bremo stainless steel disc 4 opposed calipers of differing diameters	Single disc. Brembo caliper with 4 differentiated pistons	Single disc. Brembo caliper with 4 differentiated pistons	Single disc. Brembo caliper with 4 differentiated pistons	Single disc. Brembo caliper with 4 differentiated pistons
Engine Detail	V 90 twin	V 90 twin	90° V-twin	90° V-twin	90° V-twin	90° V-twin
Wheelbase	1,200 mm / 47.2 in.	1,180 mm / 46.5 in. ↓	1,490 mm / 58.7 in. ↑	1,535 mm / 60.4 in. ↑	-	-
Fuel Capacity	17.00 litres / 4.49 gallons	17.00 litres / 4.49 gallons	21.95 litres / 5.80 gallons ↑	21.95 litres / 5.80 gallons	21.95 litres / 5.80 gallons	20.82 litres / 5.50 US gallons ↓
Brakes - Rear	Single disc. Bremo	Single disc. Bremo	Single disc. Floating disc. Two-piston calipers.	Single disc. Floating disc. Two-piston calipers.	Single disc. Floating disc. Two-piston calipers.	Single disc. Floating disc. Two-piston calipers.
Suspension - Front	Marzocchi forks	Marzocchi forks	Telescopic hydraulic fork with 40 mm stanchions	Telescopic hydraulic fork with 40 mm stanchions	Telescopic hydraulic fork with 40 mm stanchions	Telescopic hydraulic fork with 40 mm stanchions
Suspension - Rear	Oscillating light alloy swingarm with 2 pre-load adjustable shock absorbers.	Oscillating light alloy swingarm with 2 pre-load adjustable shock absorbers.	Die cast light alloy swing arm with 2 spring preload adjustable shock absorbers	Die cast light alloy swing arm with 2 spring preload adjustable shock absorbers	Die cast light alloy swing arm with 2 spring preload adjustable shock absorbers	Die cast light alloy swing arm with 2 spring preload adjustable shock absorbers
Top Speed	90.0 km/h / 55.9 mph	95.0 km/h / 59.0 mph ↑	70.0 km/h / 43.5 mph ↓	-	-	-
Fuel System	Injection. Weber-Marelli	Injection	Injection. Weber-Marelli electronic fuel injection.	Injection. Weber-Marelli	Injection. Weber-Marelli	Injection. Weber-Marelli
Colours	Silver/red/white	Silver/red/black	Gray	Gray	Gray/red	Racer
Final Drive	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan) (final drive)
Height	1,115 mm / 43.9 in.	1,115 mm / 43.9 in.	1,113 mm / 43.8 in.	1,113 mm / 43.8 in.	1,113 mm / 43.8 in.	1113 mm / 43.8 in. ↑
Rims	14 inch wheels	21x7-10? ↑	Spoked polished aluminium rims	Aluminium spoked black anodised rims	Aluminium spoked black anodised rims	Aluminium spoked black anodised rims
Length	2,185 mm / 86.0 in.	2,185 mm / 86.0 in.	2,184 mm / 86.0 in.	2,184 mm / 86.0 in.	2,184 mm / 86.0 in.	2184 mm / 86.0 in. ↑
Wet Weight	198.0 kg / 436.5 lbs	198.0 kg / 436.5 lbs	-	179.0 kg / 394.6 lbs	179.0 kg / 394.6 lbs	213.0 kg / 469.6 lbs ↑
Warranty	-	-	Two-year manufacturer?s warranty and roadside assistance for one year	Two-year manufacturer?s warranty and roadside assistance for one year	Two-year manufacturer?s warranty and roadside assistance for one year	Two-year manufacturer’s warranty and roadside assistance for one year
Compression Ratio	9.6:1	9.6:1	10.2:1 ↑	9.0:1 ↓	-	-
Emissions	Three-way catalyzer with lambda probe.	3-way catalytic converter and oxygen sensor.	-	Euro 3	-	-
Tyres - Front	110/90-18	110/90-18	100/90-18 ↓	100/90-18	100/90-18	100/90-18
Engine Lubrication	By lobes with pressure pump	By lobes with pressure pump	Forced circulation with lobe pump - circuit capacity: 1.78 Kg	Forced circulation with lobe pump - circuit capacity: 1.78 Kg	Forced circulation with lobe pump - circuit capacity: 1.78 Kg	Forced circulation with lobe pump - circuit capacity: 1.78 Kg
Width	805 mm / 31.7 in.	805 mm / 31.7 in.	800 mm / 31.5 in. ↓	800 mm / 31.5 in.	800 mm / 31.5 in.	800 mm / 31.5 in.
Tyres - Rear	130/80-17	130/80-17	270/60-12 ↑	130/80-17 ↓	130/80-17	-
Primary Drive	Helicoidal gears, ratio 16/21=1:1.3125. Final drive: Shaft drive, ratio 4.825.	Helicoidal gears, ratio 16/21=1:1.3125. Final drive: Shaft drive, ratio 4.825.	CA.R.C. Compact Reactive Shaft Drive	CA.R.C. Compact Reactive Shaft Drive	CA.R.C. Compact Reactive Shaft Drive	CA.R.C. Compact Reactive Shaft Drive
Fuel Reserve	2.50 litres / 0.66 gallons	2.50 litres / 0.66 gallons	3.79 litres / 1.00 gallons ↑	3.79 litres / 1.00 gallons	3.79 litres / 1.00 gallons	3.79 litres / 1.00 US gallons
Ignition	-	CDI	ECU	-	-	-
Max Torque	54.70 Nm (5.6 kgf-m or 40.3 ft.lbs) @ 3600	54.70 Nm (5.6 kgf-m or 40.3 ft.lbs) @ 3600	57.90 Nm (5.9 kgf-m or 42.7 ft.lbs) @ 5000 ↑	57.90 Nm (5.9 kgf-m or 42.7 ft.lbs) @ 5000	57.90 Nm (5.9 kgf-m or 42.7 ft.lbs) @ 5000 Revolutions	60.0 Nm (6.1 kgf-m or 44.3 ft.lbs) @ 4900 Revolutions ↑
Power-to-Weight Ratio	0.1710 HP/kg	0.2616 HP/kg ↑	0.2769 HP/kg ↑	-	-	-
