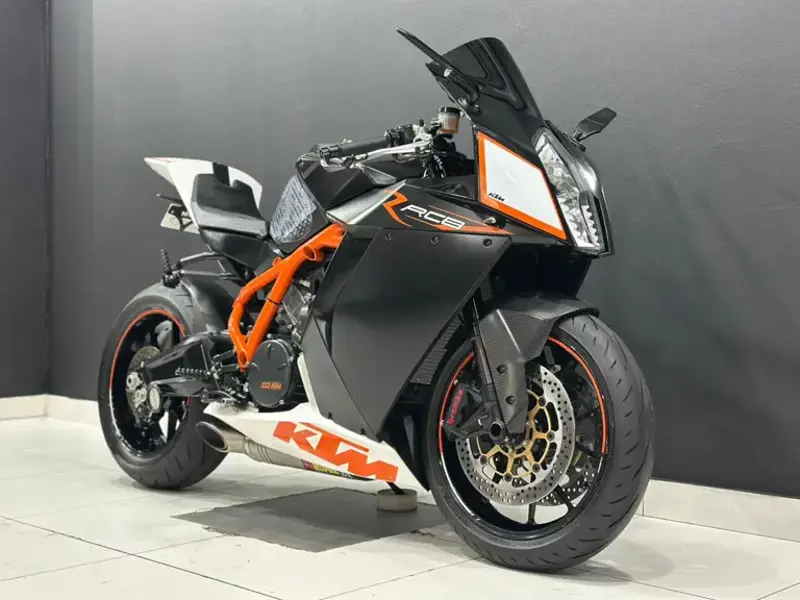

2010 KTM RC8R 1190 Specifications

Name: 2010 KTM RC8R 1190
Brand: KTM

Sport • Specs last verified 13 July 2026

No images available

Tap to enlarge

2010 KTM RC8R 1190 Overview

The 2010 KTM RC8R 1190 is a sport motorcycle built around 1195 cc of displacement. Under the tank sits a Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder engine, a compression ratio of 13.5 :1. 2010 KTM RC8R 1190 delivers 167.6 hp @ 10250 rpm of peak power and 12.5 kgf-m @ 8000 rpm of torque. The factory-quoted top speed stands at 271.4 km/h, making it a capable performer in its class. From a practical standpoint, the 2010 RC8R 1190 tips the scales at 182 kg, carries a 16.5-litre fuel tank, offers a seat height of 805 mm and spans a 1425 mm wheelbase. That's roughly 20.7 kg lighter than the average sport motorcycle in our database. Scroll down for the complete 2010 KTM RC8R 1190 spec sheet covering every technical detail from suspension travel to tyre sizes.

2010 RC8R 1190 - Pros & Cons

Strengths

Strong power output: 2010 KTM RC8R 1190 makes 167.6 hp @ 10250 rpm with 12.5 kgf-m @ 8000 rpm of torque - competitive figures for its class.

Considerations

Chain final drive upkeep: Chain final drive needs regular cleaning, lubrication and tension checks to get full life out of the sprockets.

Wear Points & Servicing Notes

Cooling system servicing

The Liquid cooling system on the RC8R 1190 needs a coolant change roughly every two years (or per the service schedule) - skipping it lets the coolant turn acidic and corrode the aluminium water passages over time.

Brake disc and pad wear

The 2x 320mm discs 4 piston calipers front brake gives strong, progressive stopping power. Disc thickness and pad depth are worth checking at every tyre change, since worn pads can score the disc surface.

Suspension condition on used examples

Up front, the RC8R 1190 runs 43mm WP Upside down adjustable and WP shock, fully adjustable at the rear. On a used example, check fork seals for weeping oil and test the rear linkage for play - seals are a relatively cheap fix but useful when negotiating price.

Final drive maintenance

Final drive is by chain - expect to clean and lube it every few hundred kilometres and check tension regularly; a neglected chain wears the sprockets faster than the chain itself.

Frame & chassis check

The frame is Chromium-Molybdenum trellis frame, powder-coated Subframe Aluminium - worth a visual check for corrosion or impact damage around the head-stock and swingarm pivot on any used example, since frame damage is far costlier to fix than any service item.

RC8R 1190 - Buying & Maintenance Guide

What to check before buying

When inspecting a used 2010 KTM RC8R 1190, start with the basics: check the service book for oil change frequency, inspect the chain and sprockets for wear, and look for oil seepage around the engine casings and rocker covers. A cold start test is invaluable - a well-maintained RC8R 1190 should fire up cleanly and settle to a smooth idle within a few seconds.

Oil and filter changes

Regular oil changes are the single most important maintenance task on any RC8R 1190. Stick to the manufacturer's interval - typically every 6,000 km or once a year, whichever comes first. Always use the correct viscosity grade as specified in the owner's manual.

2010 KTM RC8R 1190 - Frequently Asked Questions

What engine does the 2010 KTM RC8R 1190 have?

The 2010 KTM RC8R 1190 uses a Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder engine with 1195 cc of displacement. It is liquid cooling.

What is the top speed of the 2010 KTM RC8R 1190?

The 2010 KTM RC8R 1190 has a factory-quoted top speed of 271.4 km/h. Real-world speeds vary depending on rider weight, conditions and state of tune.

How much does the 2010 KTM RC8R 1190 weigh?

The 2010 KTM RC8R 1190 weighs 182 kg. This is the manufacturer's dry figure.

How much power does the 2010 KTM RC8R 1190 make?

The 2010 KTM RC8R 1190 produces 167.6 hp @ 10250 rpm of power and 12.5 kgf-m @ 8000 rpm of torque. These are peak figures.

What is the fuel tank capacity of the 2010 KTM RC8R 1190?

The 2010 KTM RC8R 1190 has a 16.5-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 275-330 km between stops.

Is the 2010 KTM RC8R 1190 suitable for shorter riders?

The 2010 KTM RC8R 1190 has a seat height of 805 mm. This is a moderate seat height that suits a wide range of rider heights.

What brakes does the 2010 KTM RC8R 1190 have?

The 2010 KTM RC8R 1190 uses 2x 320mm discs 4 piston calipers at the front and Single 240mm disc at the rear.

What tyre sizes does the 2010 KTM RC8R 1190 use?

The 2010 KTM RC8R 1190 runs 120/70 ZR17 front and 190/55 ZR17 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

What gearbox does the 2010 KTM RC8R 1190 have?

The 2010 KTM RC8R 1190 is fitted with a 6 Speed transmission.

KTM RC8R 1190 Spec Evolution

The KTM RC8R 1190 was produced across 8 model years (2008-2015). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	2008	2009	2010	2011	2012	2013	2014	2015
Max Power	125 kW @ 10250 rpm	167.6 hp / 122.4 kW) @ 10250 rpm	167.6 hp / 122.4 kW) @ 10250 rpm	129 kW / 175 hp @ 10250 rpm	129 kW / 175 hp @ 10250 rpm	129 kW / 175 hp @ 10250 rpm	129 kW / 175 hp @ 10250 rpm	129 kW / 175 hp @ 10250 rpm
Dry Weight	-	182 kg / 405.23 lb (no fuel)	182 kg / 405.23 lb (no fuel)	186.0 kg / 410.1 lbs	186.0 kg / 410.1 lbs	186.0 kg / 410.1 lbs	186.0 kg / 410.1 lbs	186.0 kg / 410.1 lbs
Engine Detail	Liquid cooling, four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder	Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder	Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder	Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder	Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder	Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder	Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder	Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder
Seat Height	805 mm / 825 mm	805 mm / 825 mm	805 mm / 825 mm	805 mm - 825 mm / 31.69in - 32.48in	805 mm - 825 mm / 31.69in - 32.48in	805 mm - 825 mm / 31.69in - 32.48in	805 mm - 825 mm / 31.69in - 32.48in	805 mm - 825 mm / 31.69in - 32.48in
Fuel Capacity	16.5 Litres / 4.3 gal	16.5 Litres / 3.5 gal	16.5 Litres / 3.5 gal	16.5 Litres / 4.3 gal	16.5 Litres / 4.3 gal	16.5 Litres / 4.3 gal	16.5 Litres / 4.3 gal	16.5 Litres / 4.3 gal
Frame Type	Chromium-Molybdenum trellis frame, powder-coated Subframe Aluminium	Chromium-Molybdenum trellis frame, powder-coated Subframe Aluminium	Chromium-Molybdenum trellis frame, powder-coated Subframe Aluminium	Chromium-Molybdenum trellis frame, powder-coated Subframe Aluminium Handlebar Aluminium stump handlebar	Chromium-Molybdenum trellis frame, powder-coated Subframe Aluminium Handlebar Aluminium stump handlebar	Chromium-Molybdenum trellis frame, powder-coated Subframe Aluminium Handlebar Aluminium stump handlebar	Chromium-Molybdenum trellis frame, powder-coated Subframe Aluminium Handlebar Aluminium stump handlebar	Chromium-Molybdenum trellis frame, powder-coated Subframe Aluminium Handlebar Aluminium stump handlebar
Displacement	1195	1195 cc / 73.0 cu-in	1195 cc / 73.0 cu-in	1195 cc / 73.0 cu-in	1195 cc / 73.0 cu-in	1195 cc / 73.0 cu-in	1195 cc / 73.0 cu-in	1195 cc / 73.0 cu-in
Brakes - Front	2x 320mm discs Brembo 4 piston calipers	2x 320mm discs 4 piston calipers	2x 320mm discs 4 piston calipers	2x 320mm discs 4 piston calipers	2x 320mm discs 4 piston calipers	2x 320mm discs 4 piston calipers	2x 320mm discs 4 piston calipers	2x 320mm discs 4 piston calipers

Key Specifications

Engine

Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder

Power

167.6 hp / 122.4 kW) @ 10250 rpm

Torque

12.5 kgf-m / 90.7 ft.lbs @ 8000 rpm

Top Speed

271.4 km/h

Weight

182 kg / 405.23 lb (no fuel)

Fuel Capacity

16.5 Litres / 3.5 gal

Full 2010 KTM RC8R 1190 Specifications

Year 2010

Make Model KTM RC8R 1190

Seat Height 805 mm / 825 mm

Wheelbase 1425 mm / 56.1 in

Ground Clearance 110 mm / 4.3 in

Dry Weight 182 kg / 405.23 lb (no fuel)

Fuel Capacity 16.5 Litres / 3.5 gal

Top Speed 271.4 km/h

Max Power 167.6 hp / 122.4 kW) @ 10250 rpm

Max Torque 12.5 kgf-m / 90.7 ft.lbs @ 8000 rpm

Standing Start ¼ Mile 10.8 sec

Displacement 1195 cc / 73.0 cu-in

Engine Detail Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder

Bore x Stroke 105 x 69 mm

Compression Ratio 13.5 :1

Cooling System Liquid cooling

Engine Lubrication , SAE 10W-50

Engine Management Keihin EMS

Fuel Mixture Keihin EFI (throttle body 52 mm (2.05")) Control 4 V/DOHC

Lubrication System lubrication with 3 Eaton pumps

Starter Electric

Clutch Wet multi-disc clutch, operated hydraulically

Final Drive 17:37 | Chain 5/8 x 5/16" X Ring

Primary Drive 40:76

Transmission / Drive 6 Speed

Frame Type Chromium-Molybdenum trellis frame, powder-coated Subframe Aluminium

Suspension - Front 43mm WP Upside down adjustable

Suspension - Rear WP shock, fully adjustable

Trail 97 mm / 3.82 in

Wheel Travel - Front 120 mm / 4.7 in

Wheel Travel - Rear 125 mm / 4.9 in

Brakes - Front 2x 320mm discs 4 piston calipers

Brakes - Rear Single 240mm disc

Tyres - Front 120/70 ZR17

Tyres - Rear 190/55 ZR17

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
