Key Specifications
Engine
Single cylinder, four-stroke
Weight
292.1 kg / 643.9 lbs
Fuel Capacity
8.50 litres / 2.25 gallons
Advertisement

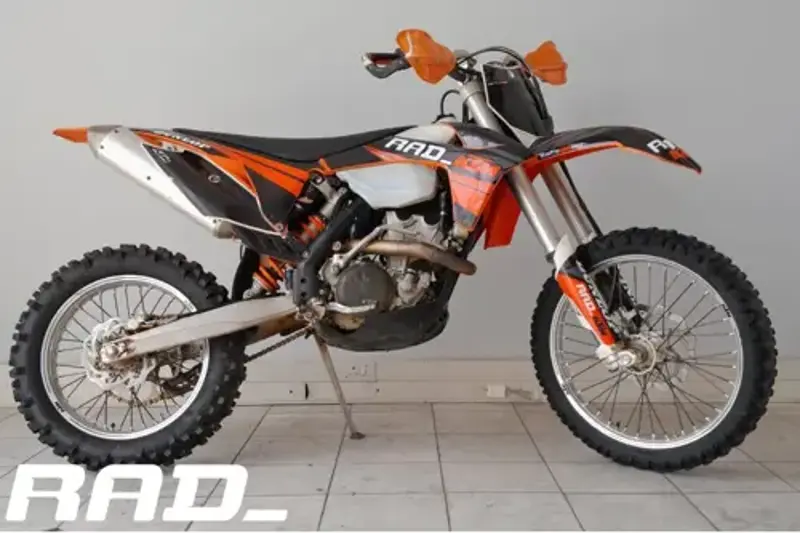

Full 2012 KTM 350 XCF-W Specifications
Colours
Orange/black/white
Warranty
12 Months
Ground Clearance (mm)
345 mm
Ground Clearance (in.)
13.6 inches
Seat Height
970 mm / 38.2 in.
Wheelbase
1,482 mm / 58.3 in.
Height
1,146 mm / 45.1 in.
Length
2,065 mm / 81.3 in.
Width
1,204 mm / 47.4 in.
Dry Weight
107 kg / 235.9 lbs
Fuel Capacity
8.50 litres / 2.25 gallons
Wet Weight
292.1 kg / 643.9 lbs
Fuel Control
Single Overhead Cams (SOHC)
Engine Type
Single cylinder, four-stroke
Displacement (ci)
21.34 cubic inches
Displacement (cc)
349.70 cc
Bore x Stroke (mm)
88.0 x 57.5 mm
Bore x Stroke (in,)
3.5 x 2.3 inches
Engine Detail
Titanium valves
Fuel System
Injection
Compression Ratio
13.2:1
Engine Lubrication
Pressure circulation lubrication with two Eaton pumps
Ignition
Contactless controlled fully electronic ignition with digital ignition adjustment
Starter
Electric & kick
Clutch
Multidisc clutch in oil bath/hydraulically activated
Final Drive
Chain
Gearbox
6-speed
Primary Drive
Primary transmission 24:73 Final drive 13:52.
Frame Type
Central tube frame made of chrome molybdenum steel tubing
Suspension - Front
WP Suspension Up Side Down 4860 MXMA PA
Suspension - Rear
WPSuspension PDS 5018 DCC
Rake
26.5°
Wheel Travel - Front
300 mm / 11.8 in.
Wheel Travel - Rear
335 mm / 13.2 in.
Lighting system
30W x 2 halogen
Brakes - Front Diameter (in.)
10.2 inches
Brakes - Front Diameter (mm)
260 mm
Brakes - Rear Diameter (in.)
8.7 inches
Brakes - Rear Diameter (mm)
220 mm
Brakes - Front
Single disc
Brakes - Rear
Single disc
Rims
Excel AL7 rims with silver anodized stripes,
Tyres - Front
25/8-12
Tyres - Front
80/100-21
Tyres - Rear
100/90-19
