Key Specifications
Fuel Capacity
30.00 litres
Advertisement

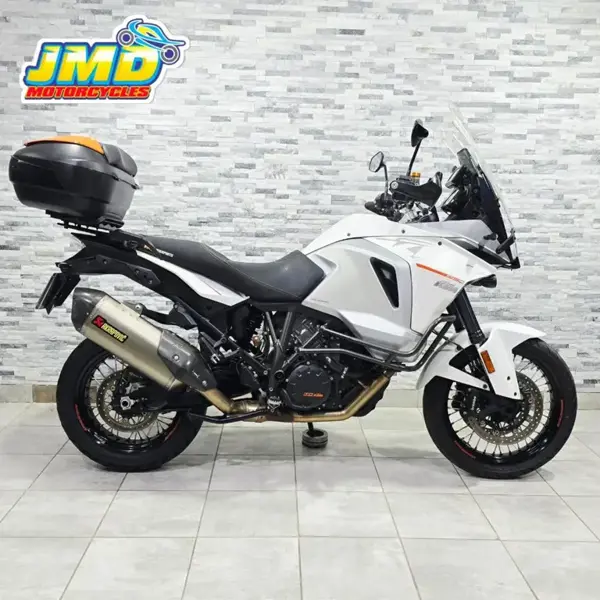

Full 2015 KTM 1290 Super Adventure Specifications
Comments
Small windscreen. Ride-by-wire system.
Colours
White
Wheelbase (mm)
1,560 mm
Wheelbase (in.)
61.4 inches
Seat Heigth -Alternate (mm)
875 mm
Seat Heigth -Alternate (in.)
34.4 inches
Seat Height (mm)
860 mm
Seat Height (in.)
33.9 inches
Ground Clearance (mm)
220 mm
Ground Clearance (in.)
8.7 inches
Fuel Capacity (l)
30.00 litres
Fuel Capacity (gal.)
7.93 gallons
Dry Weight (lbs.)
504.9 pounds
Dry Weight (kg)
229
Engine Type
V2, four-stroke
Bore x Stroke (in,)
4.3 x 3.0 inches
Bore x Stroke (mm)
108.0 x 75.0 mm
Engine Detail
75° V arrangement
Fuel System
Injection
Engine Lubrication
Forced oil lubrication with 3 rotor pumps
Ignition
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Starter
Electric
Clutch
PASC anti-hopping clutch/ hydraulically operated
Final Drive
Chain
Gearbox
6-speed
Primary Drive
5/8 x 5/16 X Ring. Primary drive: 40:76.
Wheel Travel - Front (in.)
7.9 inches
Wheel Travel - Front (mm)
200 mm
Wheel Travel - Rear (in.)
7.9 inches
Wheel Travel - Rear (mm)
200 mm
Frame Type
Tubular space frame made from chrome molybdenum steel, powder-coated
Suspension - Front
WP Semi-active Suspension USD ? 48 mm
Suspension - Rear
WP Semi-active Suspension PDS Monoshock
Rake
26.0°
Brakes - Rear Diameter (in.)
10.5 inches
Brakes - Rear Diameter (mm)
267 mm
Brakes - Front Diameter (mm)
320 mm
Brakes - Front Diameter (in.)
12.6 inches
Brakes - Front
Double disc. ABS. Four-piston calipers. Radially mounted.
Brakes - Rear
Single disc. ABS. Two-piston calipers.
