Key Specifications
Engine
Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder
Power
147.5 hp / 107.7 kW @ 9500 rpm
Torque
92.2 lb-ft / 124.8 Nm @ 7500 rpm
Weight
217 kg / 478.4 lbs
Fuel Capacity
23 Litres / 6.08 US gal
Advertisement

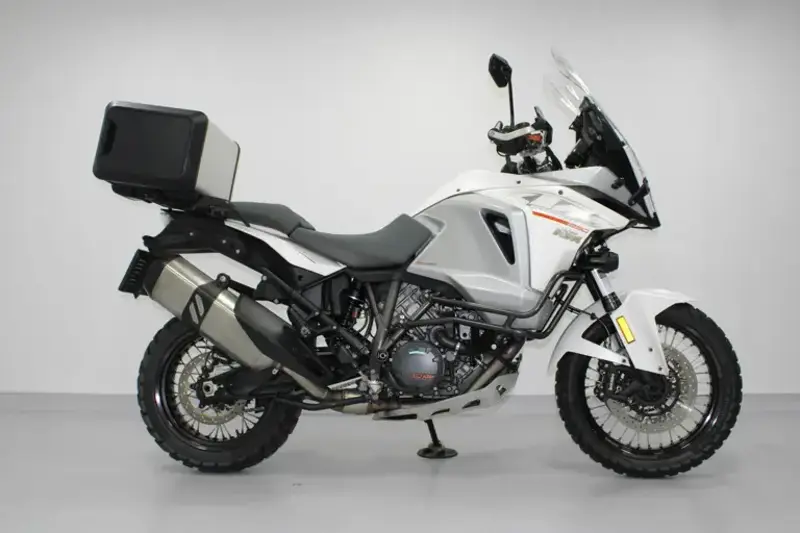

Full 2016 KTM 1190 Adventure Specifications
Year
2016
Make Model
KTM 1190 Adventure
Seat Height
861 mm - 876 mm / 33.9 in - 34.5 in.
Wheelbase
1600 mm / 63.0 in
Ground Clearance
220 mm / 8.7 in
Dry Weight (kg)
217
Dry Weight
217 kg / 478.4 lbs
Fuel Capacity
23 Litres / 6.08 US gal
Displacement
1195 cc / 72.9 cu-in
Engine Detail
Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder
Bore x Stroke
105 x 69 mm
Compression Ratio
12.5:1
Cooling System
Liquid cooling
Fuel Induction
EFI, ride by wire
Ignition
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Lubrication
Forced oil lubrication with 3 rotor pumps
Starter
Electric
Clutch
Wet multi-disc clutch, hydraulically operated
Final Drive
Chain 5/8 x 5/16" X Ring
Primary Drive Ratios
40:76
Secondary Drive Ratio
17:42
Transmission / Drive
6 Speed
Frame Type
Tubular space frame made from chrome molybdenum steel, powder-coated
Suspension - Front
48mm WP USD forks
Suspension - Rear
WP-PDS rear shock, hydraulic spring preload.
Rake
26.0°
Steering Head Angle
64°
Trail
119.8 mm / 4.72 in.
Wheel Travel - Front
190 mm / 7.5 in
Wheel Travel - Rear
210 mm / 8.2 in
Brakes - Front
2x 320mm discs 4 piston calipers
Brakes - Rear
Single 267mm disc 2 piston caliper
Tyres - Front
120/70ZR-19
Tyres - Rear
170/60ZR-17
Wheels - Front
Spoked aluminum, 3.50 x 19 in.
Wheels - Rear
Spoked aluminum, 5.00 x 17 in.
