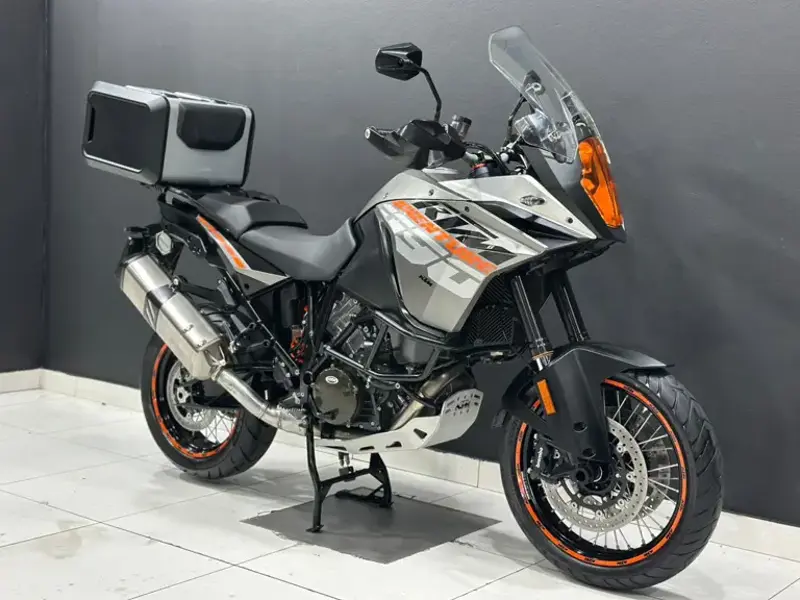

2015 KTM 1190 Adventure Overview
The 2015 KTM 1190 Adventure is an enduro / off-road motorcycle built around 1195 cc of displacement. Under the tank sits a Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder engine, a compression ratio of 12.5:1. 2015 KTM 1190 Adventure delivers 147.5 hp @ 9500 rpm of peak power and 92.2 lb-ft @ 7500 rpm of torque. From a practical standpoint, the 2015 1190 Adventure tips the scales at 217 kg, carries a 23-litre fuel tank, offers a seat height of 861 mm - 876 mm and spans a 1600 mm wheelbase. That's roughly 18.2 kg heavier than the average enduro / off-road motorcycle in our database. Scroll down for the complete 2015 KTM 1190 Adventure spec sheet covering every technical detail from suspension travel to tyre sizes.
2015 1190 Adventure - Pros & Cons
Strengths
-
⚡
Strong power output: 2015 KTM 1190 Adventure makes 147.5 hp @ 9500 rpm with 92.2 lb-ft @ 7500 rpm of torque - competitive figures for its class.
-
🔧
Fuel injection: The fuel injection system delivers crisp throttle response and reliable cold starts regardless of altitude or temperature.
-
⛽
Large fuel range: The 23-litre tank is generously sized, translating to extended range between stops - ideal for touring or longer commutes.
Considerations
-
📏
Tall seat height: The 861 mm - 876 mm seat height will challenge shorter riders - tiptoeing at low speeds is something to factor into your decision.
-
⚙️
Chain final drive upkeep: Chain final drive needs regular cleaning, lubrication and tension checks to get full life out of the sprockets.
Wear Points & Servicing Notes
Cooling system servicing
The Liquid cooling system on the 1190 Adventure needs a coolant change roughly every two years (or per the service schedule) - skipping it lets the coolant turn acidic and corrode the aluminium water passages over time.
Fuelling & injector care
Fuelling comes from fuel injection. Systems like this are largely maintenance-free beyond keeping fuel quality decent and injectors clear - a fuel-system cleaner every service interval is cheap insurance.
Brake disc and pad wear
The 2x 320mm discs 4 piston calipers front brake gives strong, progressive stopping power. Disc thickness and pad depth are worth checking at every tyre change, since worn pads can score the disc surface.
Suspension condition on used examples
Up front, the 1190 Adventure runs 48mm WP USD forks and WP-PDS rear shock, hydraulic spring preload at the rear. On a used example, check fork seals for weeping oil and test the rear linkage for play - seals are a relatively cheap fix but useful when negotiating price.
Final drive maintenance
Final drive is by chain - expect to clean and lube it every few hundred kilometres and check tension regularly; a neglected chain wears the sprockets faster than the chain itself.
Frame & chassis check
The frame is Tubular space frame made from chrome molybdenum steel, powder-coated - worth a visual check for corrosion or impact damage around the head-stock and swingarm pivot on any used example, since frame damage is far costlier to fix than any service item.
1190 Adventure - Buying & Maintenance Guide
What to check before buying
When inspecting a used 2015 KTM 1190 Adventure, start with the basics: check the service book for oil change frequency, inspect the chain and sprockets for wear, and look for oil seepage around the engine casings and rocker covers. A cold start test is invaluable - a well-maintained 1190 Adventure should fire up cleanly and settle to a smooth idle within a few seconds.
Oil and filter changes
Regular oil changes are the single most important maintenance task on any 1190 Adventure. Stick to the manufacturer's interval - typically every 6,000 km or once a year, whichever comes first. Always use the correct viscosity grade as specified in the owner's manual.
Carburetor upkeep
Keep the carburetors clean and free of deposits. If the 1190 Adventure has been stored, strip and clean the carb float bowls before attempting to start it. Pilot jets are the first to block and the last to be checked - always include them in any carb rebuild.
2015 KTM 1190 Adventure - Frequently Asked Questions
What engine does the 2015 KTM 1190 Adventure have?
The 2015 KTM 1190 Adventure uses a Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder engine with 1195 cc of displacement. It is liquid cooling.
How much does the 2015 KTM 1190 Adventure weigh?
The 2015 KTM 1190 Adventure weighs 217 kg. This is the manufacturer's dry figure.
How much power does the 2015 KTM 1190 Adventure make?
The 2015 KTM 1190 Adventure produces 147.5 hp @ 9500 rpm of power and 92.2 lb-ft @ 7500 rpm of torque. These are peak figures.
What is the fuel tank capacity of the 2015 KTM 1190 Adventure?
The 2015 KTM 1190 Adventure has a 23-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 383-460 km between stops.
Is the 2015 KTM 1190 Adventure suitable for shorter riders?
The 2015 KTM 1190 Adventure has a seat height of 861 mm - 876 mm. This is towards the tall end of the spectrum and will require most riders under 175 cm to tiptoe at stops.
What brakes does the 2015 KTM 1190 Adventure have?
The 2015 KTM 1190 Adventure uses 2x 320mm discs 4 piston calipers at the front and Single 267mm disc 2 piston caliper at the rear.
What tyre sizes does the 2015 KTM 1190 Adventure use?
The 2015 KTM 1190 Adventure runs 120/70ZR-19 front and 170/60ZR-17 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.
What gearbox does the 2015 KTM 1190 Adventure have?
The 2015 KTM 1190 Adventure is fitted with a 6 Speed transmission.
Key Specifications
Engine
Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder
Power
147.5 hp / 107.7 kW @ 9500 rpm
Torque
92.2 lb-ft / 124.8 Nm @ 7500 rpm
Top Speed
Not published by manufacturer
Weight
217 kg / 478.4 lbs
Fuel Capacity
23 Litres / 6.08 US gal
Advertisement
Full 2015 KTM 1190 Adventure Specifications
Year
2015
Make Model
KTM 1190 Adventure
Seat Height
861 mm - 876 mm / 33.9 in - 34.5 in.
Wheelbase
1600 mm / 63.0 in
Ground Clearance
220 mm / 8.7 in
Dry Weight
217 kg / 478.4 lbs
Fuel Capacity
23 Litres / 6.08 US gal
Displacement
1195 cc / 72.9 cu-in
Engine Detail
Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder
Bore x Stroke
105 x 69 mm
Compression Ratio
12.5:1
Cooling System
Liquid cooling
Fuel Induction
EFI, ride by wire
Ignition
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Lubrication
Forced oil lubrication with 3 rotor pumps
Starter
Electric
Clutch
Wet multi-disc clutch, hydraulically operated
Final Drive
Chain 5/8 x 5/16" X Ring
Primary Drive Ratios
40:76
Secondary Drive Ratio
17:42
Transmission / Drive
6 Speed
Frame Type
Tubular space frame made from chrome molybdenum steel, powder-coated
Suspension - Front
48mm WP USD forks
Suspension - Rear
WP-PDS rear shock, hydraulic spring preload.
Rake
26.0°
Steering Head Angle
64°
Trail
119.8 mm / 4.72 in.
Wheel Travel - Front
190 mm / 7.5 in
Wheel Travel - Rear
210 mm / 8.2 in
Brakes - Front
2x 320mm discs 4 piston calipers
Brakes - Rear
Single 267mm disc 2 piston caliper
Tyres - Front
120/70ZR-19
Tyres - Rear
170/60ZR-17
Wheels - Front
Spoked aluminum, 3.50 x 19 in.
Wheels - Rear
Spoked aluminum, 5.00 x 17 in.
Specifications are compiled from manufacturer documentation and cross-referenced
technical sources, and corrected on an ongoing basis.
