Key Specifications
Engine
Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder
Power
93.8 hp / 68.6 kW @ 6200 rpm
Torque
107 Nm / 79 lb-ft @ 5750 rpm
Weight
212 kg / 467.3 lbs
Fuel Capacity
23 Litres / 6.08 gal

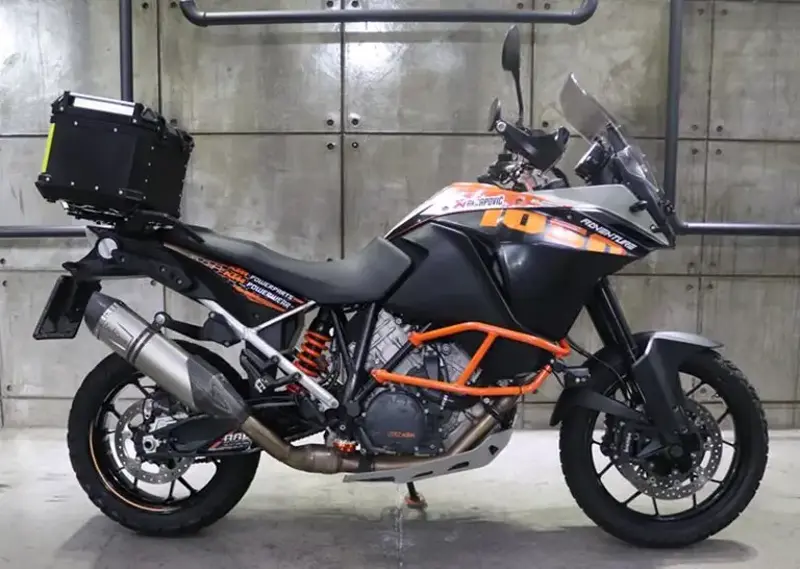

Full 2015 KTM 1050 Adventure Specifications
Year
2015
Make Model
KTM 1050 Adventure
Seat Height
850 mm / 33.4 in
Wheelbase
1600 mm / 63.0 in
Ground Clearance
220 mm / 8.7 in (unloaded)
Dry Weight (kg)
212
Dry Weight
212 kg / 467.3 lbs
Fuel Capacity
23 Litres / 6.08 gal
Displacement
1050 cc / 64.0 cu-in
Engine Detail
Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder
Bore x Stroke
103 x 63 mm
Cooling System
Liquid cooling system, continuous circulation of cooling liquid with water pump
Fuel Induction
EFI, ride by wire
Ignition
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Lubrication
Forced oil lubrication with 3 rotor pumps
Starter
Electric
Clutch
PASC anti-hopping clutch/ hydraulically operated
Final Drive
Chain 5/8 x 5/16" X Ring
Primary Drive Ratios
40:76
Secondary Drive Ratio
17:42
Transmission / Drive
6 Speed
Frame Type
Tubular space frame made from chrome molybdenum steel, powder-coated
Suspension - Front
WP Suspension Up Side Down
Suspension - Rear
WP Suspension monoshock
Rake
26.0°
Steering Head Angle
64°
Trail
119.8 mm / 4.72 in.
Wheel Travel - Front
182 mm / 7.1 in
Wheel Travel - Rear
190 mm / 7.4 in
Brakes - Front
2x 320mm discs 4 piston calipers
Brakes - Rear
Single 267mm disc 2 piston caliper
Tyres - Front
120/70ZR-19
Tyres - Rear
170/60ZR-17
