2016 Kawasaki KX65 Specifications

Cross / motocross

Advertisement
No images available
Tap to enlarge

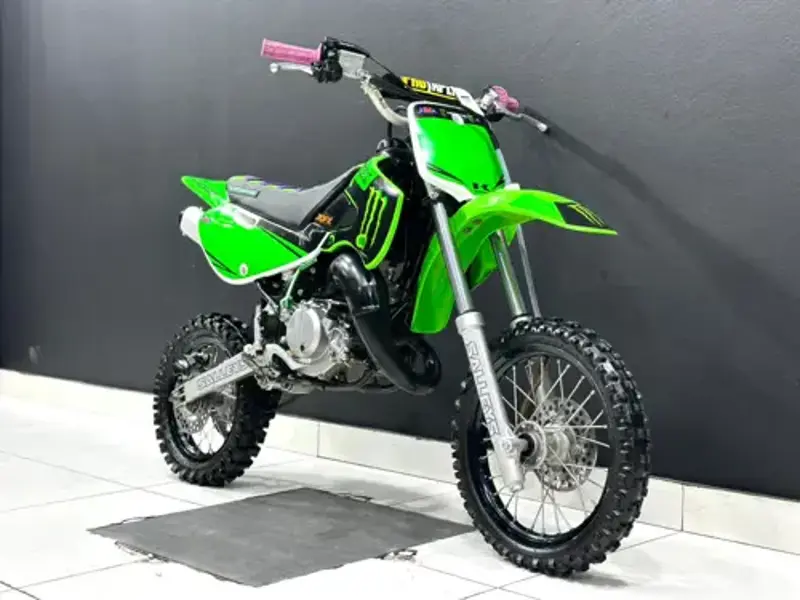

2016 Kawasaki KX65 Overview

The 2016 Kawasaki KX65 is a cross / motocross motorcycle. Under the tank sits a Single cylinder, two-stroke engine, a compression ratio of 8.4:1. The bore and stroke measures 44.5 x 41.6 mm. From a practical standpoint, the 2016 KX65 tips the scales at 60 kg, carries a 3.79-litre fuel tank, offers a seat height of 759 mm and spans a 1,120 mm wheelbase. Scroll down for the complete 2016 Kawasaki KX65 spec sheet covering every technical detail from suspension travel to tyre sizes.

2016 KX65 - Pros & Cons

Strengths

  • Accessible seat height: At 759 mm, the seat height is approachable for a wide range of rider heights and builds confidence in low-speed manoeuvring.

Considerations

  • Carburetor fuelling: Carbureted engines need occasional jetting attention and can be reluctant in cold weather or at altitude compared to modern fuel-injected alternatives.

Owner Experiences & Common Issues

Carburetor maintenance

Carburetors on the 2016 Kawasaki KX65 benefit from a clean and re-jet if the bike has been stored, run on stale fuel, or modified with an aftermarket exhaust. Owners frequently mention that fresh jets and float needle clips transforms throttle response from flat to crisp.

KX65 - Buying & Maintenance Guide

What to check before buying

When inspecting a used 2016 Kawasaki KX65, start with the basics: check the service book for oil change frequency, inspect the chain and sprockets for wear, and look for oil seepage around the engine casings and rocker covers. A cold start test is invaluable - a well-maintained KX65 should fire up cleanly and settle to a smooth idle within a few seconds.

Oil and filter changes

Regular oil changes are the single most important maintenance task on any KX65. Stick to the manufacturer's interval - typically every 6,000 km or once a year, whichever comes first. Always use the correct viscosity grade as specified in the owner's manual.

Carburetor upkeep

Keep the carburetors clean and free of deposits. If the KX65 has been stored, strip and clean the carb float bowls before attempting to start it. Pilot jets are the first to block and the last to be checked - always include them in any carb rebuild.

2016 Kawasaki KX65 - Frequently Asked Questions

What engine does the 2016 Kawasaki KX65 have?
The 2016 Kawasaki KX65 is powered by a Single cylinder, two-stroke engine.
How much does the 2016 Kawasaki KX65 weigh?
The 2016 Kawasaki KX65 weighs 60 kg. This is the manufacturer's wet figure.
What is the fuel tank capacity of the 2016 Kawasaki KX65?
The 2016 Kawasaki KX65 has a 3.79-litre fuel tank.
Is the 2016 Kawasaki KX65 suitable for shorter riders?
The 2016 Kawasaki KX65 has a seat height of 759 mm. This is a comfortable, accessible height for most riders.
What brakes does the 2016 Kawasaki KX65 have?
The 2016 Kawasaki KX65 uses Single disc. Hydraulic. at the front and Single disc at the rear.
What tyre sizes does the 2016 Kawasaki KX65 use?
The 2016 Kawasaki KX65 runs 60/100-14 front and 80/100-12 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.
What fuel system does the 2016 Kawasaki KX65 use?
The 2016 Kawasaki KX65 uses Carburettor. Mikuni VM24SS, providing precise fuelling across the rev range and reliable cold-start behaviour.

Kawasaki KX65 Spec Evolution

The Kawasaki KX65 was produced across 21 model years (2002-2023). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification 2002 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 2020 2021 2022 2023
Dry Weight 57 kg / 125.7 lbs 57 kg / 125.7 lbs 57 kg / 125.6 lbs 57 kg / 125.6 lbs 57 kg / 125.6 lbs 57 kg / 125.6 lbs - - - 275 kg / 606.3 lbs - - - - - - - - - - -
Engine Detail - - - - - - - - - 90 degree V-twin - Reed valve. Four-petal reed valve Reed valve Reed valve Reed valve Reed valve Reed valve Reed valve Reed valve Reed valve
Engine Type Single cylinder, two-stroke Single cylinder, two-stroke Single cylinder, two-stroke Single cylinder Single cylinder Single cylinder Single cylinder Single cylinder, two-stroke Single cylinder, two-stroke Single cylinder, two-stroke Single cylinder, two-stroke Single cylinder, two-stroke Single cylinder, two-stroke Single cylinder, two-stroke Single cylinder, two-stroke Single cylinder, two-stroke Single cylinder, two-stroke Single cylinder, two-stroke Single cylinder, two-stroke Single cylinder, two-stroke Single cylinder, two-stroke
Fuel Capacity - - 3.78 litres / 1.00 gallons 3.78 litres / 1.00 gallons 3.78 litres / 1.00 gallons 3.78 litres / 1.00 gallons 3.78 litres / 1.00 gallons 3.78 litres / 1.00 gallons 3.79 litres / 1.00 gallons 3.79 litres / 1.00 gallons 3.79 litres / 1.00 gallons 3.79 litres / 1.00 gallons 3.79 litres / 1.00 gallons 3.79 litres / 1.00 gallons 3.79 litres / 1.00 gallons 3.79 litres / 1.00 gallons 3.79 litres / 1.00 US gallons 3.79 litres / 1.00 US gallons 3.79 litres / 1.00 US gallons 3.79 litres / 1.00 US gallons 3.79 litres / 1.00 US gallons
Displacement (cc) 64.00 cc 64.00 cc 64.70 cc 64.70 cc 64.70 cc 64.70 cc 64.70 cc 64.70 cc 64.00 cc 64.00 cc 64.70 cc 64.70 cc - - 64.70 cc - 64.7 cc 64.7 cc 64.7 cc 64.7 cc 64.7 cc
Displacement (ci) 3.91 cubic inches 3.91 cubic inches 3.95 cubic inches 3.95 cubic inches 3.95 cubic inches 3.95 cubic inches 3.95 cubic inches 3.95 cubic inches 3.91 cubic inches 3.91 cubic inches 3.95 cubic inches 3.95 cubic inches - - 3.95 cubic inches - 3.95 cubic inches 3.95 cubic inches 3.95 cubic inches 3.95 cubic inches 3.95 cubic inches
Ground Clearance (in.) - - 0.5 inches 12.0 inches 12.0 inches 12.0 inches 12.0 inches 12.0 inches 12.0 inches 12.0 inches 12.0 inches 12.0 inches 12.0 inches 12.0 inches 12.0 inches 12.0 inches 12.0 inches 12.0 inches 12.0 inches 12.0 inches 12.0 inches
Ground Clearance (mm) - - 12 mm 305 mm 305 mm 305 mm 305 mm 305 mm 305 mm 305 mm 305 mm 305 mm 305 mm 305 mm 305 mm 305 mm 305 mm 305 mm 305 mm 305 mm 305 mm

Key Specifications

Engine

Single cylinder, two-stroke

Power

N/A

Torque

N/A

Top Speed

N/A

Weight

60.0 kg / 132.2 lbs

Fuel Capacity

3.79 litres / 1.00 gallons

Advertisement

Full 2016 Kawasaki KX65 Specifications

Colours Lime Green
Bore x Stroke (in,) 1.8 x 1.6 inches
Bore x Stroke (mm) 44.5 x 41.6 mm
Engine Type Single cylinder, two-stroke
Engine Detail Reed valve
Fuel System Carburettor. Mikuni VM24SS
Compression Ratio 8.4:1
Ignition CDI w/digital advance
Starter Kick
