Key Specifications
Engine
Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Power
78.3 kW / 105 hp @ 8000 rpm
Torque
100 Nm / 73.7 lb-ft @ 6500 rpm
Fuel Capacity
19 Litres / 5.0 US gal

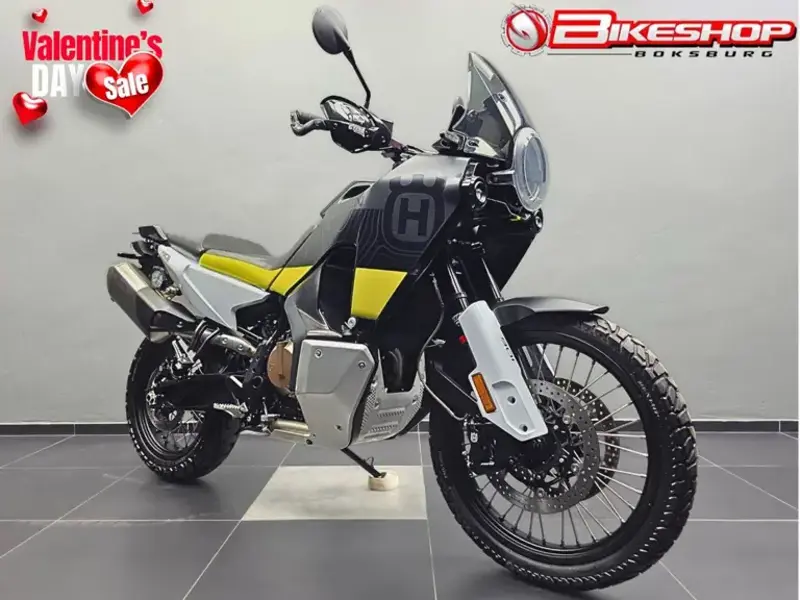

Full 2022 Husqvarna Norden 901 Specifications
Year
2022
Make Model
Husqvarna Norden 901
Seat Height
854 - 874 mm / 33.6 - 34.4 in
Wheelbase
1513 mm / 56.5 in
Ground Clearance
252 mm / 9.9 in
Wet Weight (kg)
204
Dry Weight (kg)
201
Dry Weight
201 kg / 449.7 without fuel
Fuel Capacity
19 Litres / 5.0 US gal
Wet Weight
204 kg / 480 lbs
Displacement
889 cc / 54.3 cu-in
Engine Detail
Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Bore x Stroke
90.7 x 68.8 mm
Compression Ratio
13.5:1
Cooling System
Liquid cooled with water/oil heat exchanger
Emissions
Euro 5
Engine Management
Bosch EMS with RBW
Exhaust
Stainless steel primary and secondary silencer
Fuel Induction
DKK Dell'Orto with 46mm throttle body
Lubrication
Pressure lubrication with 2 oil pumps
Starter
Electric
Clutch
Cable operated PASC Slipper clutch
Final Drive
Chain 520 X-Ring
Final Drive Ratio
16.45
Primary Drive Ratios
39.75
Transmission / Drive
6 Speed
Frame Type
Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Suspension - Front
43mm WP APEX-USD, compression, rebound, preload
Suspension - Rear
WP APEX-Monoshock, rebound, preload
Clamp Offset - Triple
30 mm / 1.1 in
Handlebar
Aluminium, tapered, Ø 28/22 mm
Rake
25.8°
Steering Head Angle
64.2°
Subframe
Chromium-Molybdenum-Steel trellis, powder coated
Trail
106.9 mm / 4.2 in
Wheel Travel - Front
220 mm / 8.6 in
Wheel Travel - Rear
215 mm / 8.4 in
Traction control
MTC (lean angle sensitive, 3-Mode, disengageable, Explorer mode optional)
Brakes - Front
2x 320mm discs, 4-piston radially mounted calipers
Brakes - Rear
Single 260mm disc, 2 piston floating caliper
ABS
Bosch 9.1 ME (incl. Cornering-ABS and Offroad mode, disengageable)
Tyres - Front
90/90 R 21 Pirelli Scorpion Rally STR
Tyres - Rear
150/70 R 18 Pirelli Scorpion Rally STR
Wheels
Tubeless Aluminium spoked wheels
Wheels - Front
2.50 x 21
Wheels - Rear
4.50 x 18
