Key Specifications
Fuel Capacity
18.93 litres

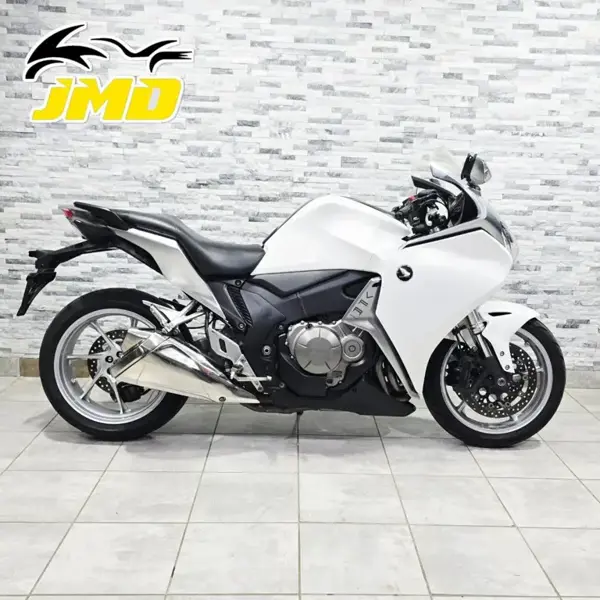

Full 2012 Honda VFR 1200F Specifications
Comments
Model ID: TRX90X
Colours
Candy Blue
Warranty
One year. Unlimited milage. Transferable.
Width (mm)
894 mm
Width (in.)
35.2 inches
Wheelbase (mm)
1,544 mm
Wheelbase (in.)
60.8 inches
Seat Height (mm)
810 mm
Seat Height (in.)
31.9 inches
Length (mm)
1,488 mm
Length (in.)
58.6 inches
Height (mm)
927 mm
Height (in.)
36.5 inches
Ground Clearance (mm)
99 mm
Ground Clearance (in.)
3.9 inches
Wet Weight (lbs.)
262.0 pounds
Wet Weight (kg)
118.8 kg
Fuel Capacity (l)
18.93 litres
Fuel Capacity (gal.)
5.00 gallons
Bore x Stroke (in,)
3.2 x 2.4 inches
Bore x Stroke (mm)
81.0 x 60.0 mm
Fuel Control
SOHC
Engine Type
V4, four-stroke
Displacement (cc)
1237.00 cc
Displacement (ci)
75.48 cubic inches
Engine Detail
76 degrees V-4
Fuel System
Injection. Programmed Fuel Injection (PGM-FI) with automatic enrichment circuit, 44mm throttle bodies and 12-hole injectors
Compression Ratio
12.0:1
Emissions
Meets current California Air Resources Board (CARB) and EPA standards.
Engine Lubrication
Dry sump
Ignition
Digital transistorized with electronic advance
Starter
Electric
Valve System
4
Clutch
Automatic
Final Drive
Shaft drive (cardan)
Gearbox
6-speed
Primary Drive
O-ring-sealed chain
Trail (in.)
4.0 inches
Trail (mm)
101 mm
Wheel Travel - Front (in.)
4.7 inches
Wheel Travel - Front (in.)
2.6 inches
Wheel Travel - Front (mm)
66 mm
Wheel Travel - Front (mm)
119 mm
Wheel Travel - Rear (in.)
2.6 inches
Wheel Travel - Rear (mm)
66 mm
Suspension - Front
43mm cartridge fork with spring-preload adjustability
Suspension - Rear
Pro Arm single-side swingarm with Pro-Link single gas-charged shock with remote spring-preload adjustability and rebound-damping adjustability
Rake
25.5°
Brakes - Rear Diameter (mm)
276 mm
Brakes - Rear Diameter (in.)
10.9 inches
Brakes - Front Diameter (mm)
320 mm
Brakes - Front Diameter (in.)
12.6 inches
Brakes - Front
Double disc. CBS six-piston calipers with ABS
Brakes - Rear
Single disc. CBS two-piston calipers with ABS
Tyres - Front
120/70-ZR17
Tyres - Front
20/7-8
Tyres - Rear
19/8-8
Tyres - Rear
190/55-ZR17
