Key Specifications
Engine
Single cylinder, four-stroke
Fuel Capacity
1.90 gallons
Advertisement

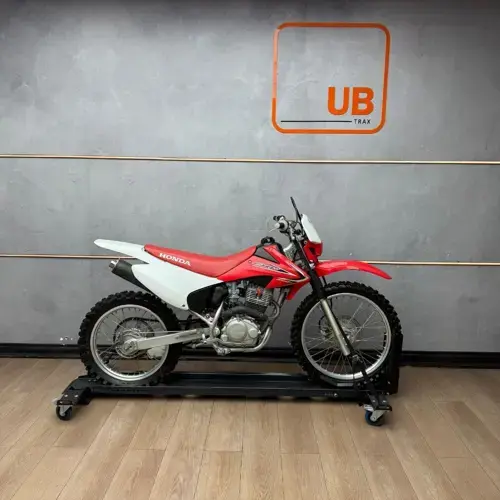

Full 2014 Honda CRF230F Specifications
Comments
Model ID: CRF230F
Colours
Red
Ground Clearance (in.)
11.7 inches
Ground Clearance (mm)
297 mm
Seat Height (in.)
34.1 inches
Seat Height (mm)
866 mm
Wheelbase (in.)
54.1 inches
Wheelbase (mm)
1,374 mm
Fuel Capacity (gal.)
1.90 gallons
Fuel Capacity (l)
7.19 litres
Wet Weight (kg)
112.9 kg
Wet Weight (lbs.)
249.0 pounds
Bore x Stroke (in,)
2.6 x 2.6 inches
Bore x Stroke (mm)
65.5 x 66.2 mm
Engine Type
Single cylinder, four-stroke
Fuel Control
Single Overhead Cams (SOHC)
Fuel System
Carburettor. 26mm piston-valve carburetor
Compression Ratio
9.0:1
Emissions
Meets current California Air Resources Board (CARB) and EPA off-road emissions standards.
Ignition
CD
Starter
Electric & kick
Final Drive
Chain
Gearbox
6-speed
Primary Drive
#520 O-ring-sealed chain; 13T/50T
Trail (in.)
4.4 inches
Trail (mm)
112 mm
Wheel Travel - Front (in.)
9.5 inches
Wheel Travel - Front (mm)
241 mm
Suspension - Front
37mm leading-axle Showa® fork; 9.5 inches travel
Suspension - Rear
Pro-Link® Showa single shock with spring-preload adjustability; 9.0 inches travel
Rake
27.3°
Brakes - Front Diameter (in.)
9.4 inches
Brakes - Front Diameter (mm)
240 mm
Brakes - Rear Diameter (in.)
8.8 inches
Brakes - Rear Diameter (mm)
223 mm
Brakes - Front
Single disc
Brakes - Rear
Expanding brake (drum brake)
Tyres - Rear
100/100-18
