Key Specifications
Engine
Single cylinder, four-stroke
Fuel Capacity
7.19 litres

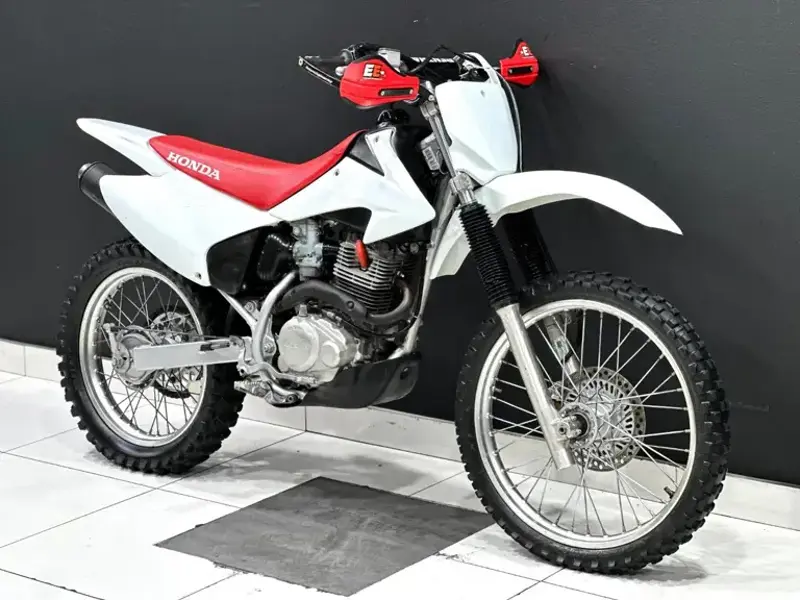

Full 2011 Honda CRF230F Specifications
Width (mm)
1,016 mm
Width (in.)
40.0 inches
Wheelbase (mm)
1,374 mm
Wheelbase (in.)
54.1 inches
Seat Height (mm)
866 mm
Seat Height (in.)
34.1 inches
Ground Clearance (mm)
297 mm
Ground Clearance (in.)
11.7 inches
Wet Weight (lbs.)
249.0 pounds
Wet Weight (kg)
112.9 kg
Fuel Capacity (l)
7.19 litres
Fuel Capacity (gal.)
1.90 gallons
Fuel Control
SOHC
Bore x Stroke (in,)
2.6 x 2.6 inches
Bore x Stroke (mm)
65.5 x 66.2 mm
Displacement (cc)
223.00 cc
Displacement (ci)
13.61 cubic inches
Engine Type
Single cylinder, four-stroke
Fuel System
Carburettor. 26mm piston-valve carburator
Compression Ratio
9.0:1
Emissions
Meets current CARB and EPA standards. California version differs slightly due to emissions equipment.
Ignition
CDI
Starter
Electric & kick
Valve System
4
Clutch
Wet, multiplate
Final Drive
Chain
Gearbox
6-speed
Primary Drive
#520 O-ring-sealed chain; 13T/50T
Trail (in.)
4.4 inches
Trail (mm)
112 mm
Wheel Travel - Front (in.)
9.5 inches
Wheel Travel - Front (in.)
11.8 inches
Wheel Travel - Front (mm)
241 mm
Wheel Travel - Front (mm)
300 mm
Wheel Travel - Rear (in.)
9.0 inches
Wheel Travel - Rear (mm)
229 mm
Frame Type
Aluminium
Suspension - Front
37mm leading-axle Showa fork
Suspension - Rear
Pro-Link Showa single-shock with spring-preload adjustability
Rake
27.3°
Brakes - Front Diameter (mm)
240 mm
Brakes - Front Diameter (in.)
9.4 inches
Brakes - Front
Single disc
Brakes - Rear
Expanding brake (drum brake)
Tyres - Front
80/100-21
Tyres - Rear
100/100-18
