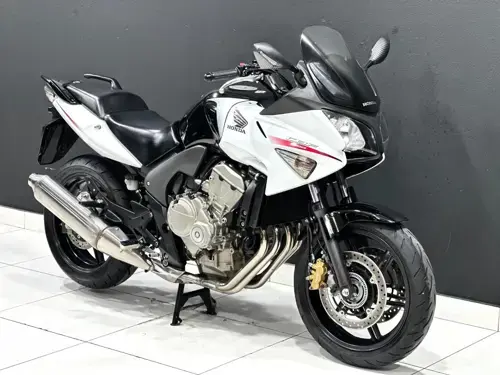

Honda CBF 600S Specs

2010 - 2011 • 2 variants

Honda has built the CBF 600S, an all-round motorcycle, across 2 variants since 2010, most recently updated for 2011. Under the tank sits a four stroke, transverse four cylinder, DOHC, 4 valve per cylinder., 599.00 cc in capacity. It makes 76.4 hp at peak. Torque tops out at 59 Nm.

About the Honda CBF 600S

Documented here are the full technical specifications for the Honda CBF 600S, a All-Round motorcycle with a production run from 2005 to 2012. Specification data includes engine type and displacement, maximum power and torque output, transmission details, frame construction, suspension travel front and rear, brake types and rotor dimensions, tyre sizes, and overall weight and dimension figures. Select a year above to view the complete spec sheet for that model year.

Honda CBF 600S by Year

2011 Honda CBF 600S View specs →

2010 Honda CBF 600S View specs →

Spec Evolution

How key specs changed across production years.

Specification	2005	2007	2008	2009	2010	2011	2012
Engine Type	In-line four	In-line four	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke
Displacement (ci)	36.55 cubic inches	36.61 cubic inches ↑	36.57 cubic inches ↓	36.57 cubic inches	-	36.57 cubic inches	36.57 cubic inches
Displacement (cc)	599.00 cc	600.00 cc ↑	599.30 cc ↓	599.30 cc	-	599.30 cc	599.30 cc
Bore x Stroke (mm)	65.0 x 45.0 mm	65.0 x 45.2 mm	-	67.0 x 42.5 mm	-	67.0 x 42.5 mm	67.0 x 42.5 mm
Bore x Stroke (in,)	2.6 x 1.8 inches	2.6 x 1.8 inches	-	2.6 x 1.7 inches	-	2.6 x 1.7 inches	2.6 x 1.7 inches
Seat Height	785 mm / 30.9 in.	785 mm / 30.9 in	-	785 mm / 30.9 in.	785 mm / 30.9 in	770 mm / 30.3 in. ↓	770 mm / 30.3 in.
Dry Weight	197 kg / 434.3 lbs	218 kg / 480 lbs ↑	222 kg / 489.4 lbs ↑	222 kg / 489.4 lbs	222 kg / 489.4 lbs	218 kg / 480.6 lbs ↓	88 kg / 194.0 lbs ↓
Frame Type	-	Mono-backbone; rectangular-section steel tube	Mono backbone	-	Mono-backbone; gravity die-cast aluminium	Aluminium	-
Brakes - Front	Double disc. Dual piston calipers	Double disc	Single disc	Double disc	2x 296mm discs 2 piston calipers (ABS)	Double disc	Double disc. Combined three-piston callipers and sintered metal pads
Wheelbase	-	1,480 mm / 58.3 in.	-	1,490 mm / 58.7 in.	1490 mm / 58.7 in ↑	1,490 mm / 58.7 in. ↓	1,490 mm / 58.7 in.
Fuel Capacity	19.00 litres / 5.02 gallons	19.00 litres / 5.02 gallons	20.00 litres / 5.28 gallons ↑	20.00 litres / 5.28 gallons	20 Liters / 5.2 US gal	20.00 litres / 5.28 gallons	20.00 litres / 5.28 gallons
Brakes - Rear	Single disc. Single piston caliper	Single disc	Single disc	Single disc	Single 240mm disc 1 piston caliper (ABS)	Single disc	Single disc. Combined single piston calliper and sintered metal pads
Suspension - Front	-	41mm telescopic fork, 120mm axle travel	-	41mm telescopic fork, 120mm axle travel	41mm telescopic fork	41mm telescopic fork, 120mm axle travel	41mm telescopic fork, 120mm axle travel
Suspension - Rear	-	Monoshock damper with 7-step adjustable preload, 125mm axle travel	-	Monoshock damper with 7-step adjustable preload, 125mm axle travel	Monoshock damper with 7-step adjustable preload	Monoshock damper with 7-step adjustable preload, 125mm axle travel	Monoshock damper with 7-step adjustable preload, 125mm axle travel
Fuel System	Carburettor	Carburettor. 4 x 36mm slanted flat-slide CV-type	Injection	Injection. PGM-FI electronic fuel injection	Injection. PGM-FI electronic fuel injection	Injection	Injection. PGM-FI
Colours	-	-	-	Red, black, grey, silver	Pearl Cool White/Black, Pearl Siena Red/Black, Dragon Green Metallic/Black, Pearl Nightstar Black	Black, red/black, white/black, gold/black	Black, red/black, white/black, green/black
Clutch	-	Wet, multiplate with coil springs	Mechanical; cable-actuated, Wet, multiplate with coil springs	-	Wet, multiplate with coil springs	Wet, multiplate	-
Height	1,240 mm / 48.8 in.	1240 mm / 48.8 in ↑	1,240 mm / 48.8 in. ↓	2,160 mm / 85.0 in. ↑	1240 mm / 48.8 in ↑	1,240 mm / 48.8 in. ↓	1,150 mm / 45.3 in. ↓
Length	2,170 mm / 85.4 in.	2,170 mm / 85.4 in.	2,160 mm / 85.0 in.	2,160 mm / 85.0 in.	2160 mm / 85.0 in ↑	2,160 mm / 85.0 in. ↓	2,160 mm / 85.0 in.
Tyres - Front	-	120/70 ZR17	120/70-ZR17	120/70-ZR17	120/70 ZR17	120/70-ZR17	120/70-ZR17
Gearbox	6-speed	6-speed	5-speed ↓	6-speed ↑	-	6-speed	6-speed
Width	760 mm / 29.9 in.	765 mm / 30.1 in ↑	765 mm / 30.1 in.	-	765 mm / 30.1 in	765 mm / 30.1 in.	765 mm / 30.1 in.
Tyres - Rear	-	160/60 ZR17	160/60-ZR17	160/60-ZR17	160/60 ZR17	160/60-ZR17	160/60-ZR17
Fuel Reserve	3.50 litres / 0.92 gallons	-	4.00 litres / 1.06 gallons	-	-	4.00 litres / 1.06 gallons	4.00 litres / 1.06 gallons
Trail	-	109 mm / 4.3 in.	-	-	110 mm / 4.3 in.	-	-
Wheel Travel - Front	-	120 mm / 4.7 in	-	-	120 mm / 4.7 in	300 mm / 11.8 in. ↑	-
Ignition	Computer controlled digital system	Computer controlled digital system	-	Computer-controlled digital transistorised with electronic advance	Computer-controlled digital transistorized	Computer-controlled digital transistorised with electronic advance	Computer-controlled digital transistorised with electronic advance
Max Torque	58.00	58.00 Nm (5.9 kgf-m or 42.8 ft.lbs) @ 8000	59.00 Nm (6.0 kgf-m or 43.5 ft.lbs) @ 8250 ↑	59.00 Nm (6.0 kgf-m or 43.5 ft.lbs) @ 8250	58 Nm / 42.7 lb-ft @ 8000 rpm ↓	59.00 Nm (6.0 kgf-m or 43.5 ft.lbs) @ 8250 ↑	59.00 Nm (6.0 kgf-m or 43.5 ft.lbs) @ 8250
Power-to-Weight Ratio	0.3858 HP/kg	0.3858 HP/kg	0.3443 HP/kg ↓	0.3443 HP/kg	0.3443 HP/kg	0.3506 HP/kg	0.0472 HP/kg ↓
