Key Specifications
Torque
98.99 Nm (10.1 kgf-m or 73.0 ft.lbs) @ 3500
Top Speed
45.0 km/h / 28.0 mph
Weight
251.7 kg / 555.0 lbs
Fuel Capacity
7.95 litres / 2.10 gallons
Advertisement

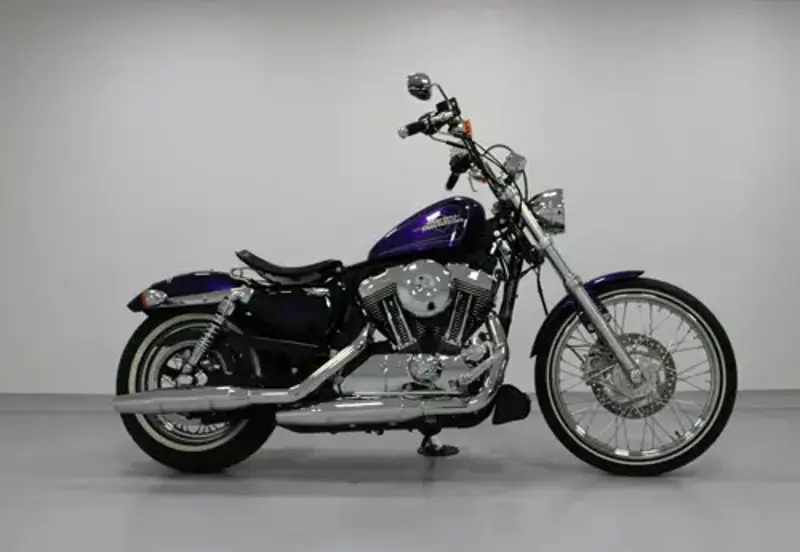

Full 2014 Harley-Davidson Sportster Seventy-Two Specifications
Comments
North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
Colours
Hard Candy Volcanic Orange Flake, Black Denim, Amber Whiskey, Hard Candy Voodoo Purple Flake
Ground Clearance (mm)
119 mm
Ground Clearance (in.)
4.7 inches
Seat Height
676 mm / 26.6 in.
Wheelbase
1,524 mm / 60.0 in.
Height
1,005 mm / 39.6 in.
Length
2,271 mm / 89.4 in.
Width
625 mm / 24.6 in.
Oil Capacity (Quarts)
0.17 quarts
Oil Capacity (l)
2.60 litres
Dry Weight
247.2 kg / 545.0 lbs
Fuel Capacity
7.95 litres / 2.10 gallons
Wet Weight
251.7 kg / 555.0 lbs
Engine Type
V2, four-stroke
Displacement (ci)
73.30 cubic inches
Displacement (cc)
1201.25 cc
Bore x Stroke (in,)
3.5 x 3.8 inches
Bore x Stroke (mm)
88.9 x 96.8 mm
CO2
113.7 CO
Engine Detail
Air-cooled, Evolution®
Fuel System
Injection. Electronic Sequential Port Fuel Injection
Compression Ratio
10.0:1
Emissions
Zero emission
Engine Lubrication
Dry sump
Exhaust
Chrome, staggered exhaust with slash-cut mufflers
Fuel Consumption
4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Starter
Electric
Clutch
Multi-plate with diaphragm spring in oil bath
Final Drive
Belt
Gearbox
6-speed
Primary Drive
Primary chain, 57/38 ratio
Frame Type
Steel tube
Suspension - Front
Dual Hydraulic Shock Absorber
Suspension - Rear
Single Hydraulic Shock Absorber
Rake
30.1°
Trail
135 mm / 5.3 in.
Instrumentation
Handlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights
Lighting system
High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional)
Brakes - Front
Single disc. Dual-piston
Brakes - Rear
Single disc. Single-piston
Rims
Chrome Steel Laced
Tyres - Front
80/100-10
Tyres - Front
MH90-21
Tyres - Rear
150/80-B16
