Key Specifications
Torque
98.99 Nm (10.1 kgf-m or 73.0 ft.lbs) @ 3500
Top Speed
45.0 km/h / 28.0 mph
Weight
251.7 kg / 555.0 lbs
Fuel Capacity
7.95 litres / 2.10 gallons
Advertisement

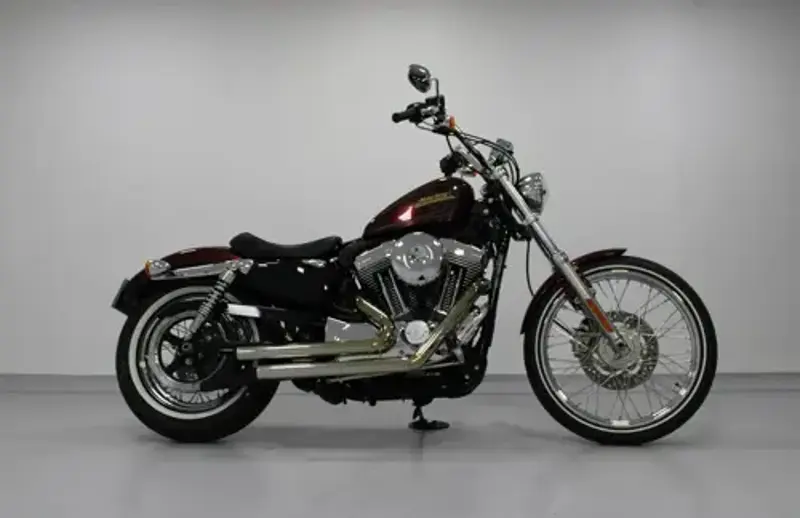

Full 2013 Harley-Davidson Sportster Seventy-Two Specifications
Comments
North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
Colours
Hard Candy Lucky Green Flake, Hard Candy Coloma Gold Flake, Hard Candy Big Red Flake, Chrome Yellow Pearl, Big Blue Pearl, Black Denim.
Ground Clearance (mm)
119 mm
Ground Clearance (in.)
4.7 inches
Seat Height
676 mm / 26.6 in.
Wheelbase
1,524 mm / 60.0 in.
Height
1,400 mm / 55.1 in.
Length
2,271 mm / 89.4 in.
Width
1,600 mm / 63.0 in.
Oil Capacity (Quarts)
0.17 quarts
Oil Capacity (l)
2.60 litres
Dry Weight
247.2 kg / 545.0 lbs
Fuel Capacity
7.95 litres / 2.10 gallons
Wet Weight
251.7 kg / 555.0 lbs
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
V2, four-stroke
Displacement (ci)
73.30 cubic inches
Displacement (cc)
1201.25 cc
Bore x Stroke (in,)
3.5 x 3.8 inches
Bore x Stroke (mm)
88.9 x 96.8 mm
CO2
113.7 CO
Engine Detail
Air-cooled, Evolution®
Fuel System
Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio
9.7:1
Engine Lubrication
Dry sump
Exhaust
Chrome, staggered exhaust with slash-cut mufflers
Fuel Consumption
4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Starter
Electric
Valve System
4
Clutch
Multi-plate with diaphragm spring in oil bath
Final Drive
Belt
Gearbox
6-speed
Primary Drive
Primary chain, 57/38 ratio
Suspension - Front
Independent coil springs and hydraulic dampers
Suspension - Rear
Independent coil springs and hydraulic dampers
Rake
30.1°
Trail
135 mm / 5.3 in.
Instrumentation
Handlebar-mounted electronic speedometer with odometer, time-of-day clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights
Lighting system
High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional)
Brakes - Front
Single disc. Dual-piston
Brakes - Rear
Single disc. Single-piston
Rims
Chrome Steel Laced
Tyres - Front
MH90-21
Tyres - Rear
150/80-B16
