Key Specifications
Engine
Four stroke, Twin Cam 103 TM Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder,
Torque
134 Nm / 99.5 lb-ft @ 3000 rpm
Fuel Capacity
18.9 Litres / 5.0 US gal
Advertisement

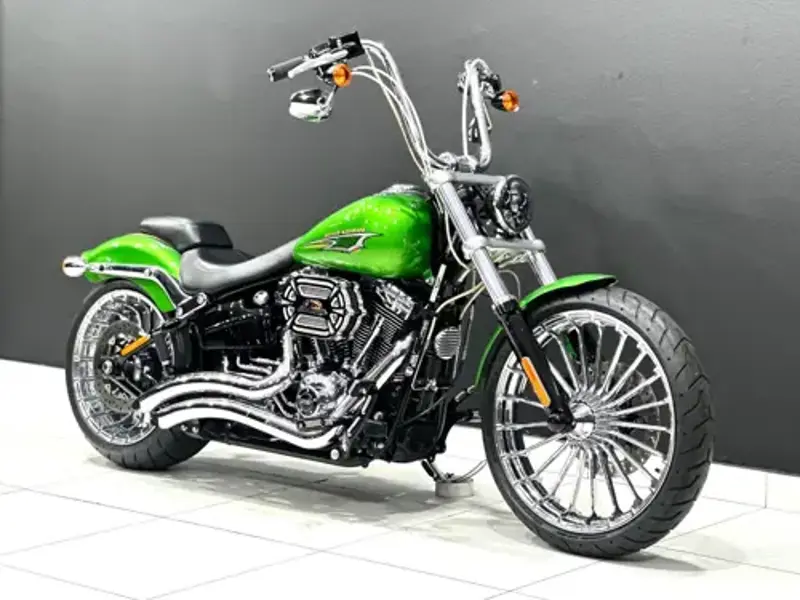

Full 2015 Harley-Davidson FXSB Softail Breakout Specifications
Year
2015
Make Model
Harley Davidson FXSB Softail Breakout
Seat Height
Laden2 2 627 mm / 24.7 in Unladen 660 mm / 26.0 in
Wheelbase
1710 mm / 67.3 in
Ground Clearance
120 mm / 4.7 in
Length
2445 mm / 96.3 in.
Dry Weight
308 kg / 681 lbs
Fuel Capacity
18.9 Litres / 5.0 US gal
Oil Capacity
3.3 Litres / 3.5 qt.
Wet Weight
322 kg / 710 lbs
Displacement
1690 cc / 103.1 cu in
Engine Detail
Four stroke, Twin Cam 103 TM Valves Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters; two valves per cylinder,
Bore x Stroke
98.4 x 111.1 mm
Compression Ratio
9.6:1
Cooling System
Air cooled
Fuel Induction
Fuel SystemElectronic Sequential Port Fuel Injection (ESPFI)
Ignition
Single-fire, non-wasted, map-controlled spark ignition
Starter
Electric
Clutch
Multi-plate, wet
Final Drive
Belt
Gear Ratios
1st.311 2nd 6.454 3r d4.793 4th 3.882 5th 3.307 6th 2.79
Primary Drive
Chain, 34/46 ratio
Transmission / Drive
6 Speed
Frame Type
Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded Swingarm Mild steel, round tube sections, forged junctions; MIG welded
Suspension - Front
41.3 mm telescopic, chrome dust covers,
Suspension - Rear
Hidden, horizontal-mounted, coil-over,
Rake
35°
Trail
145 mm / 5.7 in
Wheel Travel - Front
143 mm / 5.6 in
Wheel Travel - Rear
91 mm / 3.6 in
Brakes - Front
Single 292mm disc 4 piston caliper
Brakes - Rear
Single 292mm disc 2 piston caliper
Tyres - Front
130/60B21 63H
Tyres - Rear
240/40R18 79V
