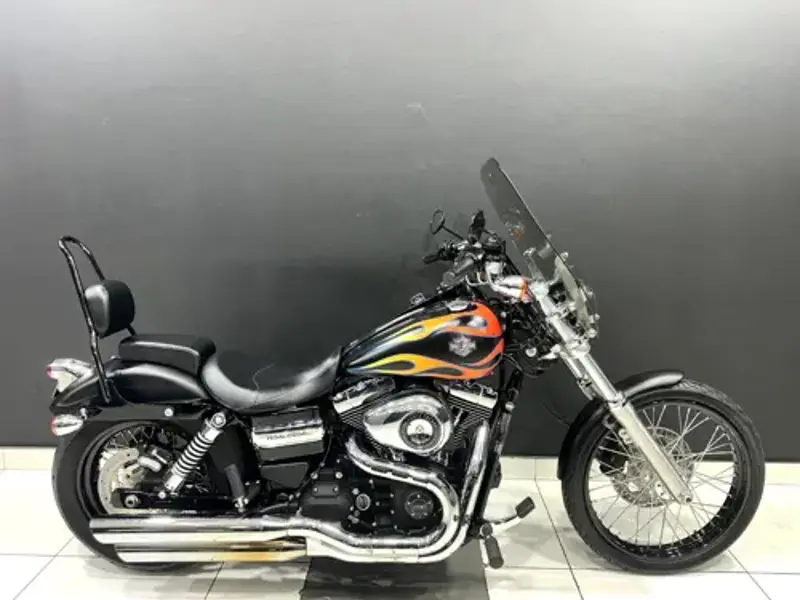

2017 Harley-Davidson Dyna Wide Glide Specifications

Name: 2017 Harley-Davidson Dyna Wide Glide
Brand: Harley-Davidson

Custom / cruiser • Specs last verified 13 July 2026

No images available

Tap to enlarge

2017 Harley-Davidson Dyna Wide Glide Overview

For 2017, Harley-Davidson offers the Dyna Wide Glide as a custom / cruiser motorcycle. The 2017 Harley-Davidson Dyna Wide Glide is built around a V2, four-stroke engine running Double Overhead Cams/Twin Cam (DOHC) valve actuation, a compression ratio of 9.7:1. Internally, bore and stroke are 98.4 x 111.3 mm. Out on the road, the Dyna Wide Glide delivers 130 Nm @ 3500 Revolutions of torque. In everyday use, the 2017 Dyna Wide Glide tips the scales at 307 kg, carries a 17.79-litre fuel tank, offers a seat height of 680 mm and spans a 1,715 mm wheelbase. That's roughly 6.4 kg heavier than the average custom / cruiser motorcycle in our database. Every technical detail, from suspension travel to tyre sizes, is covered in the full 2017 Harley-Davidson Dyna Wide Glide spec sheet below.

2017 Dyna Wide Glide - Pros & Cons

Strengths

Fuel injection: No choke, no jetting, no altitude compensation to think about - fuel injection just works across a wider range of conditions than carburetion.
Accessible seat height: At just 680 mm, flat-footing at a stop is easy for most riders - a genuine confidence builder for less experienced owners.
Low-maintenance final drive: Belt final drive is about as close to maintenance-free as motorcycle drivetrains get.

Considerations

Age-related wear: No particular mechanical concern flags for the Dyna Wide Glide - condition on any used example comes down to how well it's been looked after.

Wear Points & Servicing Notes

Fuelling & injector care

Fuelling on the Dyna Wide Glide comes from fuel injection. Cold starts and throttle response stay consistent across altitude and temperature, the main practical edge over a carbureted equivalent.

Valve clearance checks

Valve clearances on Double Overhead Cams/Twin Cam (DOHC)-equipped engines like the Dyna Wide Glide's drift slowly with mileage rather than failing suddenly - sticking to the service interval keeps it a non-issue.

Brake disc and pad wear

Single disc. 4-piston fixed. ABS. up front provides the primary stopping power; inspect disc thickness and pad wear at each tyre change to catch scoring before it becomes a rotor replacement.

Suspension condition on used examples

Suspension duties are handled by Telescopic fork up front and Twin shocks at the rear. Weeping fork seals aren't a dealbreaker on a used bike, but they're a fair basis for negotiating price.

Final drive maintenance

Belt final drive keeps day-to-day maintenance minimal on the Dyna Wide Glide - just periodic tension and wear checks rather than the regular cleaning a chain demands.

Handling the weight at a standstill

The Dyna Wide Glide's 307 kg kerb weight is worth factoring into how you handle it at a standstill - parking-lot manoeuvres need a bit more deliberate technique than on a lighter machine.

Dyna Wide Glide - Buying & Maintenance Guide

What to check before buying

A pre-purchase check on the 2017 Harley-Davidson Dyna Wide Glide should cover the same ground every time: service history, chain and sprocket condition, and any oil seepage around the casings. Start it from cold if you can - a well-kept Dyna Wide Glide settles to a smooth idle within seconds.

Oil and filter changes

Oil changes are the cheapest insurance you can buy for a Dyna Wide Glide's engine - keep to the manufacturer's interval rather than stretching it. The sump holds 2.80 litres, so budget for that volume of quality motorcycle-specific engine oil. Use the viscosity grade the manual specifies, not whatever's on sale.

Fuel system care

Injector systems like the Dyna Wide Glide's hold up well with basic care - decent fuel, an occasional cleaner additive, and draining old fuel before any layup longer than three months.

Valve clearance service

There's no reliable seat-of-the-pants way to tell if a Dyna Wide Glide's valve clearances are in spec - a light top-end tick is the only real warning sign, and by then some wear has already happened. Service records are the only proof.

2017 Harley-Davidson Dyna Wide Glide - Frequently Asked Questions

What engine does the 2017 Harley-Davidson Dyna Wide Glide have?

The 2017 Harley-Davidson Dyna Wide Glide is powered by a V2, four-stroke engine.

How much does the 2017 Harley-Davidson Dyna Wide Glide weigh?

The 2017 Harley-Davidson Dyna Wide Glide weighs 307 kg. This is the manufacturer's wet figure.

How much power does the 2017 Harley-Davidson Dyna Wide Glide make?

The 2017 Harley-Davidson Dyna Wide Glide produces 130 Nm @ 3500 Revolutions of torque.

What is the fuel tank capacity of the 2017 Harley-Davidson Dyna Wide Glide?

The 2017 Harley-Davidson Dyna Wide Glide has a 17.79-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 296-355 km between stops.

Is the 2017 Harley-Davidson Dyna Wide Glide suitable for shorter riders?

The 2017 Harley-Davidson Dyna Wide Glide has a seat height of 680 mm. This is a comfortable, accessible height for most riders.

What brakes does the 2017 Harley-Davidson Dyna Wide Glide have?

The 2017 Harley-Davidson Dyna Wide Glide uses Single disc. 4-piston fixed. ABS. at the front and Single disc. 2-piston torque-free floating. ABS. at the rear.

What tyre sizes does the 2017 Harley-Davidson Dyna Wide Glide use?

The 2017 Harley-Davidson Dyna Wide Glide runs 80/90-21 front and 180/60-B17 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

How much oil does the 2017 Harley-Davidson Dyna Wide Glide take?

The 2017 Harley-Davidson Dyna Wide Glide takes 2.80 litres of engine oil at a full oil and filter change. Always verify against the dipstick or sight glass after filling.

Harley-Davidson Dyna Wide Glide Spec Evolution

The Harley-Davidson Dyna Wide Glide was produced across 9 model years (1996-2017). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	1996	1997	1998	2001	2013	2014	2015	2016	2017
Wet Weight	-	-	-	300.0 kg / 661.4 lbs	309.8 kg / 683.0 lbs	309.8 kg / 683.0 lbs	309.8 kg / 683.0 lbs	307.0 kg / 676.8 lbs	307.0 kg / 676.8 lbs
Dry Weight	271 kg / 597.5 lbs	271 kg / 597.5 lbs	271 kg / 597.5 lbs	-	294.8 kg / 650.0 lbs	294.8 kg / 650.0 lbs	294.8 kg / 650.0 lbs	295 kg / 650.4 lbs	295 kg / 650.4 lbs
Engine Detail	-	-	-	-	Air-cooled, Twin Cam 103?	Air-cooled, Twin Cam 103?	Air-cooled, Twin Cam 103?	-	High Output Twin Cam 103
Engine Type	V2	V2	V2	V2	V2, four-stroke	V2, four-stroke	V2, four-stroke	V2, four-stroke	V2, four-stroke
Top Speed	-	165.0 km/h / 102.5 mph	165.0 km/h / 102.5 mph	170.0 km/h / 105.6 mph	45.0 km/h / 28.0 mph	45.0 km/h / 28.0 mph	-	-	-
Seat Height	754 mm / 29.7 in.	680 mm / 26.8 in.	679 mm / 26.7 in.	679 mm / 26.7 in.	648 mm / 25.5 in.	648 mm / 25.5 in.	648 mm / 25.5 in.	680 mm / 26.8 in.	680 mm / 26.8 in.
Fuel Capacity	-	-	-	18.60 litres / 4.91 gallons	17.79 litres / 4.70 gallons	17.79 litres / 4.70 gallons	17.79 litres / 4.70 gallons	17.79 litres / 4.70 gallons	17.79 litres / 4.70 gallons
Ground Clearance (mm)	-	-	-	-	102 mm	102 mm	102 mm	100 mm	100 mm

Key Specifications

Engine

V2, four-stroke

Power

Not published by manufacturer

Torque

130.00 Nm (13.3 kgf-m or 95.9 ft.lbs) @ 3500 Revolutions

Top Speed

Not published by manufacturer

Weight

307.0 kg / 676.8 lbs

Fuel Capacity

17.79 litres / 4.70 gallons

Full 2017 Harley-Davidson Dyna Wide Glide Specifications

Colours Black Quartz with flames, Vivid Black, Velocity Red Sunglo with flames, Black Denim with flames.

Ground Clearance (in.) 3.9 inches

Ground Clearance (mm) 100 mm

Seat Height 680 mm / 26.8 in.

Wheelbase 1,715 mm / 67.5 in.

Length 2,445 mm / 96.3 in.

Oil Capacity (l) 2.80 litres

Oil Capacity (Quarts) 0.18 quarts

Dry Weight 295 kg / 650.4 lbs

Fuel Capacity 17.79 litres / 4.70 gallons

Wet Weight 307.0 kg / 676.8 lbs

Max Torque 130.00 Nm (13.3 kgf-m or 95.9 ft.lbs) @ 3500 Revolutions

Power-to-Weight Ratio 0.2712 HP/kg

Bore x Stroke (in,) 3.9 x 4.4 inches

Bore x Stroke (mm) 98.4 x 111.3 mm

CO2 129.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Engine Type V2, four-stroke

Fuel Control Double Overhead Cams/Twin Cam (DOHC)

Engine Detail High Output Twin Cam 103

Fuel System Injection. Electronic Sequential Port Fuel Injection

Compression Ratio 9.7:1

Exhaust Chrome, Tommy Gun 2-1-2 collector exhaust with dual mufflers.

Fuel Consumption 5.60 litres/100 km (17.9 km/l or 42.00 mpg)

Starter Electric

Clutch Multi-plate with diaphragm spring in oil bath

Final Drive Belt

Gearbox 6-speed

Primary Drive Primary chain, 34/46 ratio

Suspension - Front Telescopic fork

Suspension - Rear Twin shocks

Rake 34.0°

Trail 132 mm / 5.2 in.

Instrumentation Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/Gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicat

Lighting system High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system(optional), 6-speed, low fuel warnings

Brakes - Front Single disc. 4-piston fixed. ABS.

Brakes - Rear Single disc. 2-piston torque-free floating. ABS.

Rims Black, Laced Steel

Tyres - Front 80/90-21

Tyres - Rear 180/60-B17

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
