2016 Harley-Davidson Dyna Wide Glide Specifications

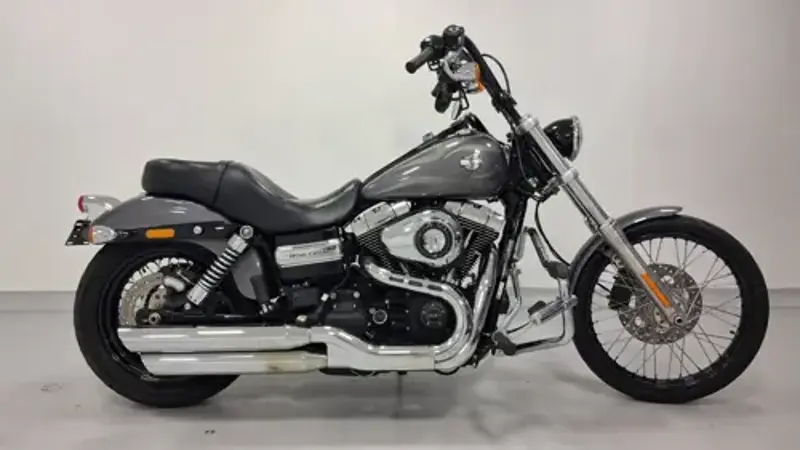

Name: 2016 Harley-Davidson Dyna Wide Glide
Brand: Harley-Davidson

Custom / cruiser • Specs last verified 13 July 2026

No images available

Tap to enlarge

2016 Harley-Davidson Dyna Wide Glide Overview

Harley-Davidson Dyna Wide Glide is a custom / cruiser motorcycle. Power comes from a V2, four-stroke engine running Double Overhead Cams/Twin Cam (DOHC) valve actuation, a compression ratio of 10.0:1. Bore and stroke come in at 98.4 x 111.3 mm. On the performance side, it delivers 132 Nm @ 3250 Revolutions of torque. On the road, the 2016 Dyna Wide Glide tips the scales at 307 kg, carries a 17.79-litre fuel tank, offers a seat height of 680 mm and spans a 1,715 mm wheelbase. That's roughly 26.1 kg heavier than the average custom / cruiser motorcycle in our database. The full 2016 Harley-Davidson Dyna Wide Glide spec sheet below covers every technical detail, from suspension travel to tyre sizes.

2016 Harley-Davidson Dyna Wide Glide compared with other bikes in the Custom / cruiser category

We checked the recorded figures for the 2016 Harley-Davidson Dyna Wide Glide against up to 1316 bikes in the Custom / cruiser category in our database, counting each model once at the model year nearest to this one.

Only 323 of the other 1052 bikes in the Custom / cruiser category have a higher torque than the 132 Nm of the Dyna Wide Glide.
With 680 mm, the Dyna Wide Glide has the joint 408th lowest seat height of 1316 bikes in the Custom / cruiser category.
Narrowing the field to the 567 models within five model years of it, the torque of 132 Nm is higher than that of 322 of the other 566.

Versus the 2015 model

Compared with the 2015 model, wet weight fell from 309.8 kg to 307 kg (-2.8 kg) and seat height rose from 648 mm to 680 mm (+32 mm). Peak torque is unchanged.

2016 Dyna Wide Glide - Pros & Cons

Strengths

Fuel injection: Fuel injection means consistent cold starts and clean throttle response without the fussiness of a carbureted setup.
Strong front braking: Stopping power up front is strong thanks to the single disc setup, with plenty of room to upgrade further with braided lines.
ABS fitted: ABS comes fitted from the factory - one less thing to worry about in a sudden stop on a slippery surface.
Accessible seat height: A 680 mm seat height keeps this manageable for most riders, which helps confidence at parking-lot speeds.
Low-maintenance final drive: Running a belt final drive cuts out the regular chain cleaning and tensioning that most bikes need.

Considerations

Age-related wear: Nothing specific stands out as a weak point on the Dyna Wide Glide - the usual used-bike checks (service history, consumables, tyres) apply.

Wear Points & Servicing Notes

Fuelling & injector care

The fuel injection on the Dyna Wide Glide needs little beyond good fuel and periodic use of an injector-cleaner additive - no jetting or float-bowl maintenance to worry about.

Valve clearance checks

With Double Overhead Cams/Twin Cam (DOHC) valve gear, the Dyna Wide Glide needs periodic clearance checks; caught early they're a cheap adjustment, left unchecked they accelerate valve seat wear.

Brake disc and pad wear

Braking up front comes from single disc with 4-piston fixed and ABS - solid stopping power, with disc and pad wear best checked on the same schedule as tyre changes.

Suspension condition on used examples

The Dyna Wide Glide's suspension runs Telescopic fork at the front. The rear uses Twin shocks. Fork-seal condition and rear linkage play are the two things worth checking before buying used.

Final drive maintenance

The Dyna Wide Glide runs belt final drive: no lubrication or frequent adjustment like a chain, though belt tension and wear are worth a periodic look.

Handling the weight at a standstill

307 kg puts the Dyna Wide Glide toward the heavier end of its class. It's most noticeable at walking pace; once underway the mass settles into the handling rather than fighting it.

Dyna Wide Glide - Buying & Maintenance Guide

What to check before buying

Before handing over money for a used 2016 Harley-Davidson Dyna Wide Glide custom / cruiser, cover the fundamentals: service book and oil change history, drivetrain wear, and any sign of oil weeping around the casings. This model runs belt final drive, so check belt tension and tooth wear - a cracked or glazed belt is a clear sign of neglect. Now 10 years old, this custom / cruiser is as likely to show age-related wear (perished rubber, seized fasteners, degraded seals) as mileage-related wear. Cold-starting it yourself tells you a lot - a healthy Dyna Wide Glide should catch quickly and settle into a smooth idle.

Oil and filter changes

Nothing protects the Dyna Wide Glide's v2, four-stroke engine like disciplined oil changes - stay on the manufacturer's schedule (roughly every 6,000 km or annually). The sump holds 2.80 litres, so budget for that volume of quality motorcycle-specific engine oil. With a 10.0:1 compression ratio, running the octane grade specified in the manual matters more than on a lower-compression engine. Match the viscosity grade to what the owner's manual specifies, not what's cheapest.

Fuel system care

Fuel injection on the Dyna Wide Glide needs little attention beyond decent fuel and an occasional system-cleaner additive. Anything left standing for three months or more should have its fuel drained and replaced before it varnishes the injectors.

Valve clearance service

Valve clearances are easy to overlook on a used Dyna Wide Glide since a bike out of spec doesn't always feel obviously wrong - but the wear it causes is real. Ask the seller for documentation before assuming it's been done.

2016 Harley-Davidson Dyna Wide Glide - Frequently Asked Questions

What engine does the 2016 Harley-Davidson Dyna Wide Glide have?

The 2016 Harley-Davidson Dyna Wide Glide is powered by a V2, four-stroke engine.

How much does the 2016 Harley-Davidson Dyna Wide Glide weigh?

The 2016 Harley-Davidson Dyna Wide Glide weighs 307 kg. This is the manufacturer's wet figure.

How much torque does the 2016 Harley-Davidson Dyna Wide Glide produce?

The 2016 Harley-Davidson Dyna Wide Glide produces 132 Nm @ 3250 Revolutions of torque.

What is the fuel tank capacity of the 2016 Harley-Davidson Dyna Wide Glide?

The 2016 Harley-Davidson Dyna Wide Glide has a 17.79-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 296-355 km between stops.

Is the 2016 Harley-Davidson Dyna Wide Glide suitable for shorter riders?

The 2016 Harley-Davidson Dyna Wide Glide has a seat height of 680 mm. This is a comfortable, accessible height for most riders.

What brakes does the 2016 Harley-Davidson Dyna Wide Glide have?

The 2016 Harley-Davidson Dyna Wide Glide uses single disc with 4-piston fixed and ABS at the front and single disc with 2-piston torque-free floating and ABS at the rear.

What tyre sizes does the 2016 Harley-Davidson Dyna Wide Glide use?

The 2016 Harley-Davidson Dyna Wide Glide runs 80/90-H21 front and 180/60-B17 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

How much oil does the 2016 Harley-Davidson Dyna Wide Glide take?

The 2016 Harley-Davidson Dyna Wide Glide takes 2.80 litres of engine oil at a full oil and filter change. Always verify against the dipstick or sight glass after filling.

Harley-Davidson Dyna Wide Glide Spec Evolution

The Harley-Davidson Dyna Wide Glide was produced across 9 model years (1996-2017). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	1996	1997	1998	2001	2013	2014	2015	2016	2017
Wet Weight	-	-	-	300.0 kg / 661.4 lbs	309.8 kg / 683.0 lbs	309.8 kg / 683.0 lbs	309.8 kg / 683.0 lbs	307.0 kg / 676.8 lbs	307.0 kg / 676.8 lbs
Dry Weight	271 kg / 597.5 lbs	271 kg / 597.5 lbs	271 kg / 597.5 lbs	-	294.8 kg / 650.0 lbs	294.8 kg / 650.0 lbs	294.8 kg / 650.0 lbs	295 kg / 650.4 lbs	295 kg / 650.4 lbs
Engine Detail	-	-	-	-	Air-cooled, Twin Cam 103?	Air-cooled, Twin Cam 103?	Air-cooled, Twin Cam 103?	-	High Output Twin Cam 103
Engine Type	V2	V2	V2	V2	V2, four-stroke	V2, four-stroke	V2, four-stroke	V2, four-stroke	V2, four-stroke
Top Speed	-	165.0 km/h / 102.5 mph	165.0 km/h / 102.5 mph	170.0 km/h / 105.6 mph	45.0 km/h / 28.0 mph	45.0 km/h / 28.0 mph	-	-	-
Seat Height	754 mm / 29.7 in.	680 mm / 26.8 in.	679 mm / 26.7 in.	679 mm / 26.7 in.	648 mm / 25.5 in.	648 mm / 25.5 in.	648 mm / 25.5 in.	680 mm / 26.8 in.	680 mm / 26.8 in.
Fuel Capacity	-	-	-	18.60 litres / 4.91 gallons	17.79 litres / 4.70 gallons	17.79 litres / 4.70 gallons	17.79 litres / 4.70 gallons	17.79 litres / 4.70 gallons	17.79 litres / 4.70 gallons
Ground Clearance (mm)	-	-	-	-	102 mm	102 mm	102 mm	100 mm	100 mm

Key Specifications

Engine

V2, four-stroke

Power

Not recorded

Torque

132.00 Nm (13.5 kgf-m or 97.4 ft.lbs) @ 3250 Revolutions

Top Speed

Not recorded

Weight

307.0 kg / 676.8 lbs

Fuel Capacity

17.79 litres / 4.70 gallons

Full 2016 Harley-Davidson Dyna Wide Glide Specifications

Colours Black Quartz with flames, Charcoal Pearl with flames, Vivid Black, Velocity Red Sunglo with flames, Black Denim with flames.

Ground Clearance (in.) 3.9 inches

Ground Clearance (mm) 100 mm

Seat Height 680 mm / 26.8 in.

Wheelbase 1,715 mm / 67.5 in.

Length 2,445 mm / 96.3 in.

Oil Capacity (l) 2.80 litres

Oil Capacity (Quarts) 0.18 quarts

Dry Weight 295 kg / 650.4 lbs

Fuel Capacity 17.79 litres / 4.70 gallons

Wet Weight 307.0 kg / 676.8 lbs

Max Torque 132.00 Nm (13.5 kgf-m or 97.4 ft.lbs) @ 3250 Revolutions

Power-to-Weight Ratio 0.2675 HP/kg

Bore x Stroke (in,) 3.9 x 4.4 inches

Bore x Stroke (mm) 98.4 x 111.3 mm

CO2 129.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Engine Type V2, four-stroke

Fuel Control Double Overhead Cams/Twin Cam (DOHC)

Fuel System Injection. Electronic Sequential Port Fuel Injection

Compression Ratio 10.0:1

Exhaust Chrome, Tommy Gun 2-1-2 collector exhaust with dual mufflers.

Fuel Consumption 5.60 litres/100 km (17.9 km/l or 42.00 mpg)

Starter Electric

Clutch Multi-plate with diaphragm spring in oil bath

Final Drive Belt

Gearbox 6-speed

Primary Drive Primary chain, 34/46 ratio

Suspension - Front Telescopic fork

Suspension - Rear Twin shocks

Rake 34.0°

Trail 132 mm / 5.2 in.

Instrumentation Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/Gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicat

Lighting system High beam, directional light bar, neutral, low oil pressure, engine diagnostics, turn signals, security system(optional), 6-speed, low fuel warnings

Brakes - Front Single disc. 4-piston fixed. ABS.

Brakes - Rear Single disc. 2-piston torque-free floating. ABS.

Rims Black, Laced Steel

Tyres - Front 80/90-H21

Tyres - Rear 180/60-B17

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
