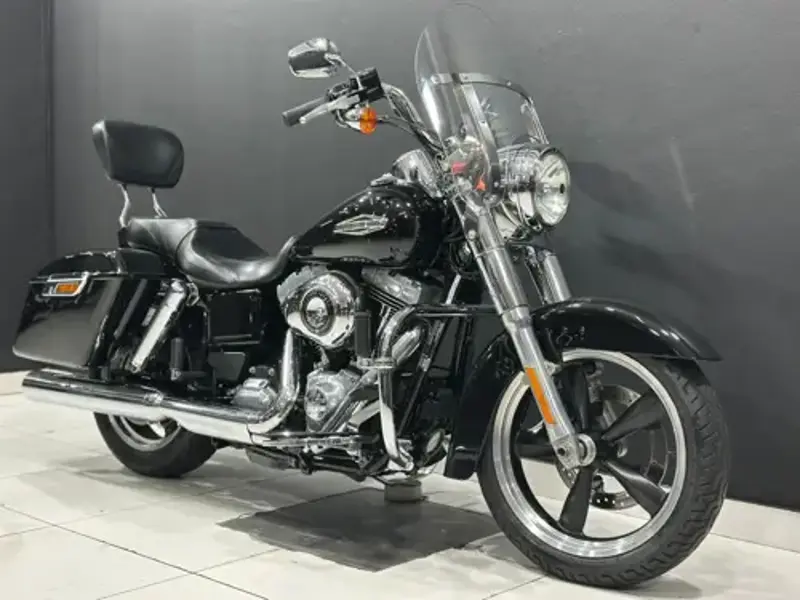

2016 Harley-Davidson Dyna Switchback Specifications

Name: 2016 Harley-Davidson Dyna Switchback
Brand: Harley-Davidson

Touring • Specs last verified 13 July 2026

No images available

Tap to enlarge

2016 Harley-Davidson Dyna Switchback Overview

Harley-Davidson Dyna Switchback is a touring motorcycle. Power comes from a V2, four-stroke engine running Double Overhead Cams/Twin Cam (DOHC) valve actuation, a compression ratio of 9.6:1. Bore and stroke come in at 98.4 x 111.3 mm. On the performance side, it delivers 126 Nm @ 3500 Revolutions of torque. On the road, the 2016 Dyna Switchback tips the scales at 325.7 kg, carries a 17.79-litre fuel tank, offers a seat height of 695 mm and spans a 1,595 mm wheelbase. The full 2016 Harley-Davidson Dyna Switchback spec sheet below covers every technical detail, from suspension travel to tyre sizes.

2016 Dyna Switchback - Pros & Cons

Strengths

Fuel injection: Fuel injection means consistent cold starts and clean throttle response without the fussiness of a carbureted setup.
Accessible seat height: A 695 mm seat height keeps this manageable for most riders, which helps confidence at parking-lot speeds.
Low-maintenance final drive: Running Belt final drive cuts out the regular chain cleaning and tensioning that most bikes need.

Considerations

Age-related wear: Nothing specific stands out as a weak point on the Dyna Switchback - the usual used-bike checks (service history, consumables, tyres) apply.

Wear Points & Servicing Notes

Fuelling & injector care

The fuel injection on the Dyna Switchback needs little beyond good fuel and periodic use of an injector-cleaner additive - no jetting or float-bowl maintenance to worry about.

Valve clearance checks

With Double Overhead Cams/Twin Cam (DOHC) valve gear, the Dyna Switchback needs periodic clearance checks; caught early they're a cheap adjustment, left unchecked they accelerate valve seat wear.

Brake disc and pad wear

Braking up front comes from Double disc. 4-piston fixed. ABS. - solid stopping power, with disc and pad wear best checked on the same schedule as tyre changes.

Suspension condition on used examples

The Dyna Switchback's suspension runs Telescopic fork at the front. The rear uses Twin shocks. Fork-seal condition and rear linkage play are the two things worth checking before buying used.

Final drive maintenance

The Dyna Switchback runs belt final drive: no lubrication or frequent adjustment like a chain, though belt tension and wear are worth a periodic look.

Handling the weight at a standstill

325.7 kg puts the Dyna Switchback toward the heavier end of its class. It's most noticeable at walking pace; once underway the mass settles into the handling rather than fighting it.

Dyna Switchback - Buying & Maintenance Guide

What to check before buying

Before handing over money for a used 2016 Harley-Davidson Dyna Switchback, cover the fundamentals: service book and oil change history, chain and sprocket wear, and any sign of oil weeping around the casings. Cold-starting it yourself tells you a lot - a healthy Dyna Switchback should catch quickly and settle into a smooth idle.

Oil and filter changes

Nothing protects a Dyna Switchback's engine like disciplined oil changes - stay on the manufacturer's schedule (roughly every 6,000 km or annually). The sump holds 2.80 litres, so budget for that volume of quality motorcycle-specific engine oil. Match the viscosity grade to what the owner's manual specifies, not what's cheapest.

Fuel system care

Fuel injection on the Dyna Switchback needs little attention beyond decent fuel and an occasional system-cleaner additive. Anything left standing for three months or more should have its fuel drained and replaced before it varnishes the injectors.

Valve clearance service

Valve clearances are easy to overlook on a used Dyna Switchback since a bike out of spec doesn't always feel obviously wrong - but the wear it causes is real. Ask the seller for documentation before assuming it's been done.

2016 Harley-Davidson Dyna Switchback - Frequently Asked Questions

What engine does the 2016 Harley-Davidson Dyna Switchback have?

The 2016 Harley-Davidson Dyna Switchback is powered by a V2, four-stroke engine.

How much does the 2016 Harley-Davidson Dyna Switchback weigh?

The 2016 Harley-Davidson Dyna Switchback weighs 325.7 kg. This is the manufacturer's wet figure.

How much power does the 2016 Harley-Davidson Dyna Switchback make?

The 2016 Harley-Davidson Dyna Switchback produces 126 Nm @ 3500 Revolutions of torque.

What is the fuel tank capacity of the 2016 Harley-Davidson Dyna Switchback?

The 2016 Harley-Davidson Dyna Switchback has a 17.79-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 296-355 km between stops.

Is the 2016 Harley-Davidson Dyna Switchback suitable for shorter riders?

The 2016 Harley-Davidson Dyna Switchback has a seat height of 695 mm. This is a comfortable, accessible height for most riders.

What brakes does the 2016 Harley-Davidson Dyna Switchback have?

The 2016 Harley-Davidson Dyna Switchback uses Double disc. 4-piston fixed. ABS. at the front and Single disc. 2-piston torque-free floating. at the rear.

What tyre sizes does the 2016 Harley-Davidson Dyna Switchback use?

The 2016 Harley-Davidson Dyna Switchback runs 130/70-B18 front and 160/70-B17 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

How much oil does the 2016 Harley-Davidson Dyna Switchback take?

The 2016 Harley-Davidson Dyna Switchback takes 2.80 litres of engine oil at a full oil and filter change. Always verify against the dipstick or sight glass after filling.

Harley-Davidson Dyna Switchback Spec Evolution

The Harley-Davidson Dyna Switchback was produced across 4 model years (2013-2016). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	2013	2014	2015	2016
Seat Height	663 mm / 26.1 in.	663 mm / 26.1 in.	663 mm / 26.1 in.	695 mm / 27.4 in.
Ground Clearance (mm)	109 mm	109 mm	109 mm	110 mm
Comments	Amphibian.	Lithium Iron Phosphate 48V/20Ah battery, 16.8 kg. Range 60 km. Recharging time: 4 hours. Made in Taiwan.	-	Windscreen
CO2	129.9 CO	129.9 CO	129.9 CO2 g/km. (CO2 - Carbon dioxide emission)	129.9 CO2 g/km. (CO2 - Carbon dioxide emission)
Brakes - Front	Double disc. 4-piston fixed	Double disc. 4-piston fixed	Double disc. 4-piston fixed. ABS.	Double disc. 4-piston fixed. ABS.
Brakes - Rear	Single disc. 2-piston torque-free floating	Single disc. 2-piston torque-free floating	Single disc. 2-piston torque-free floating.	Single disc. 2-piston torque-free floating.
Suspension - Front	Independent coil springs and hydraulic dampers	Dual Hydraulic Shock Absorber	-	Telescopic fork
Suspension - Rear	Independent coil springs and hydraulic dampers	Single Hydraulic Shock Absorber	-	Twin shocks

Key Specifications

Engine

V2, four-stroke

Power

Not published by manufacturer

Torque

126.00 Nm (12.8 kgf-m or 92.9 ft.lbs) @ 3500 Revolutions

Top Speed

Not published by manufacturer

Weight

325.7 kg / 718.0 lbs

Fuel Capacity

17.79 litres / 4.70 gallons

Full 2016 Harley-Davidson Dyna Switchback Specifications

Comments Windscreen

Colours Deep Jade Pearl, Velocity Red Sunglo, Vivid Black

Ground Clearance (in.) 4.3 inches

Ground Clearance (mm) 110 mm

Storage Saddle bags

Seat Height 695 mm / 27.4 in.

Wheelbase 1,595 mm / 62.8 in.

Length 2,360 mm / 92.9 in.

Oil Capacity (l) 2.80 litres

Oil Capacity (Quarts) 0.18 quarts

Dry Weight 315.7 kg / 696.0 lbs

Fuel Capacity 17.79 litres / 4.70 gallons

Wet Weight 325.7 kg / 718.0 lbs

Max Torque 126.00 Nm (12.8 kgf-m or 92.9 ft.lbs) @ 3500 Revolutions

Power-to-Weight Ratio 0.2411 HP/kg

Bore x Stroke (in,) 3.9 x 4.4 inches

Bore x Stroke (mm) 98.4 x 111.3 mm

CO2 129.9 CO2 g/km. (CO2 - Carbon dioxide emission)

Engine Type V2, four-stroke

Fuel Control Double Overhead Cams/Twin Cam (DOHC)

Fuel System Injection. Electronic Sequential Port Fuel Injection (ESPFI)

Compression Ratio 9.6:1

Exhaust 2-into-1 chrome exhaust with straight-cut muffler

Fuel Consumption 5.60 litres/100 km (17.9 km/l or 42.00 mpg)

Starter Electric

Clutch Multi-plate with diaphragm spring in oil bath

Final Drive Belt

Gearbox 6-speed

Primary Drive Primary chain, 34/46 ratio

Suspension - Front Telescopic fork

Suspension - Rear Twin shocks

Rake 29.9°

Trail 148 mm / 5.8 in.

Instrumentation Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/Gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicat

Lighting system High beam, neutral, low oil pressure, engine diagnostics, turn signals, low fuel warning, ABS (optional), low battery, body controller diagnostics

Brakes - Front Double disc. 4-piston fixed. ABS.

Brakes - Rear Single disc. 2-piston torque-free floating.

Rims Black, 5-Spoke Cast Aluminum

Tyres - Front 130/70-B18

Tyres - Rear 160/70-B17

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
