Key Specifications
Torque
135.60 Nm (13.8 kgf-m or 100.0 ft.lbs) @ 3500
Top Speed
45.0 km/h / 28.0 mph
Weight
325.7 kg / 718.0 lbs
Fuel Capacity
17.79 litres / 4.70 gallons
Advertisement

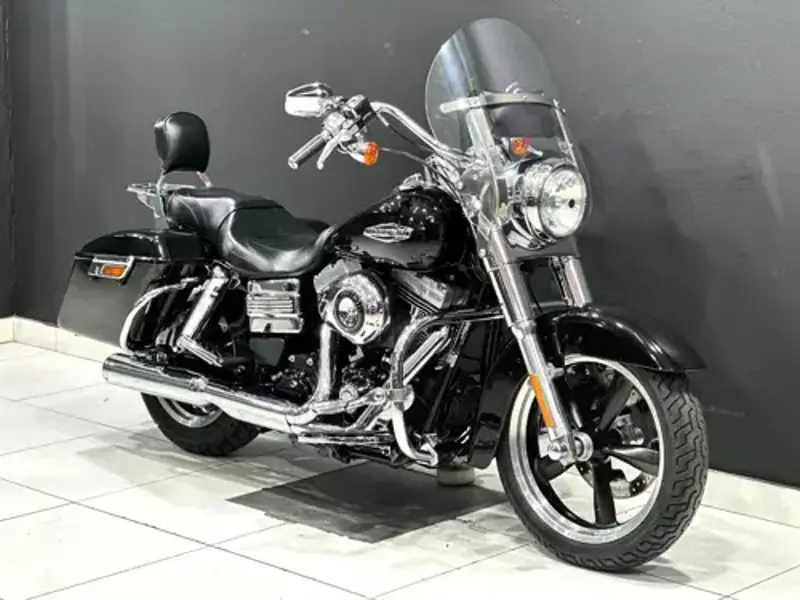

Full 2013 Harley-Davidson Dyna Switchback Specifications
Comments
Amphibian.
Colours
Ember Red Sunglo, Vivid Black, Big Blue Pearl
Ground Clearance (mm)
109 mm
Ground Clearance (in.)
4.3 inches
Seat Height
663 mm / 26.1 in.
Wheelbase
1,595 mm / 62.8 in.
Height
1,400 mm / 55.1 in.
Length
2,360 mm / 92.9 in.
Width
1,600 mm / 63.0 in.
Oil Capacity (Quarts)
0.18 quarts
Oil Capacity (l)
2.80 litres
Dry Weight
315.7 kg / 696.0 lbs
Fuel Capacity
17.79 litres / 4.70 gallons
Wet Weight
325.7 kg / 718.0 lbs
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
V2, four-stroke
Displacement (ci)
103.00 cubic inches
Displacement (cc)
1687.97 cc
Bore x Stroke (in,)
3.9 x 4.4 inches
Bore x Stroke (mm)
98.4 x 111.3 mm
CO2
129.9 CO
Engine Detail
Air-cooled, Twin Cam 103?
Fuel System
Injection. Electronic Sequential Port Fuel Injection (ESPFI)
Compression Ratio
9.6:1
Exhaust
2-into-1 chrome exhaust with straight-cut muffler
Fuel Consumption
5.60 litres/100 km (17.9 km/l or 42.00 mpg)
Starter
Electric
Valve System
4
Clutch
Multi-plate with diaphragm spring in oil bath
Final Drive
Belt
Gearbox
6-speed
Primary Drive
Primary chain, 34/46 ratio
Suspension - Front
Independent coil springs and hydraulic dampers
Suspension - Rear
Independent coil springs and hydraulic dampers
Rake
29.9°
Trail
147 mm / 5.8 in.
Instrumentation
Tank-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual tripmeter, RPM/Gear display, fuel gauge with low fuel warning light and countdown feature, low oil pressure indicator light, engine diagnostics readout, LED indicat
Lighting system
High beam, neutral, low oil pressure, engine diagnostics, turn signals, low fuel warning, ABS (optional), low battery, body controller diagnostics
Brakes - Front
Double disc. 4-piston fixed
Brakes - Rear
Single disc. 2-piston torque-free floating
Rims
Black, 5-Spoke Cast Aluminum
Tyres - Front
130/70-B18
Tyres - Rear
160/70-B17
