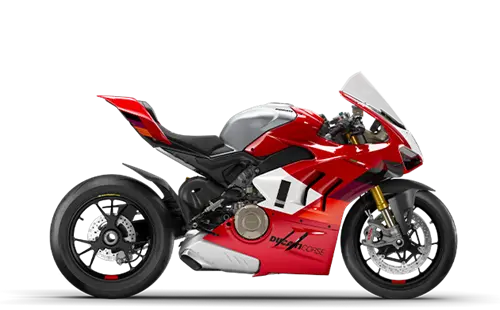

Ducati Panigale V4 R Specs

2023 • 1 variants

The Ducati Panigale V4 R is a sport motorcycle produced from 2023 across 1 variant. Peak power output is 231 hp.

About the Ducati Panigale V4 R

As a Sport motorcycle, the Ducati Panigale V4 R was offered from the 2019 through to the 2026 model year. The technical data presented here covers the complete specification range for this model, including all engine variants, chassis dimensions, suspension travel, brake specifications, and weight figures. This information is useful for prospective buyers, current owners, and mechanics working on the Ducati Panigale V4 R.

AdSense - 728Ã90

Ducati Panigale V4 R by Year

2023 Ducati Panigale V4 R View specs →

Spec Evolution

How key specs changed across production years.

Specification	2019	2023	2026
Seat Height	830 mm / 32.4 in Single seat	850 mm / 33.4 Single seat ↑	850 mm / 33.4 Single seat
Brakes - Front	2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc Stylema (M4.30) 4-piston callipers with Bosch Cornering ABS EVO	2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc Stylema, (M4.30) 4-piston callipers. Self bleeding master cylinder	2 x 330 mm semi-floating discs, radially mounted Brembo Monobloc Hypure, 4-piston calipers. Self bleeding master cylinder
Brakes - Rear	Single 245 mm disc, 2-piston calliper with Bosch Cornering ABS EVO	Single 245 mm disc, 2-piston calliper with Bosch Cornering ABS EVO	Single 245 mm disc, 2-piston caliper
Fuel Capacity	16 Litres / 4.3 US gal / 3.9 Imp gal	17 Litres / 4.49 US gal ↑	17 Litres / 4.49 US gal
Suspension - Front	Fully adjustable 43 mm Öhlins NPX 25/30 pressurized fork with TiN treatment	Fully adjustable 43 mm Öhlins NPX 25/30 pressurized fork with TiN treatment	43 mm Fully adjustable Öhlins NPX pressurized fork with TiN treatment
Suspension - Rear	Fully adjustable Öhlins TTX36 unit. Aluminium single-sided swingarm. Adjustable pivot position +/- 3 mm	Fully adjustable Öhlins TTX 36 unit with hydraulic spring preload adjuster	Fully adjustable Öhlins TTX 36 unit with hydraulic spring preload adjuster
ABS	-	Bosch Cornering ABS EVO	Cornering ABS with eCBS
Clutch	Hydraulically controlled slipper and self-servo wet multiplate clutch	Hydraulically controlled slipper dry clutch. Self bleeding master cylinder.	Hydraulically controlled slipper dry clutch. Self bleeding master cylinder.
Final Drive	Chain, Front sprocket 15, Rear sprocket 42	Chain; Front sprocket 15; Rear sprocket 42	Chain 520; Front sprocket 16; Rear sprocket 43 ↑
Equipment / Features	Ducati Power Launch (DPL), Ducati Quick Shift (DQS) up/down EVO, Full LED lighting with Daytime Running Light (DRL), GPS module, Lap Timer EVO, PIT limiter, Ohlins steering damper, Quick adjustment buttons, Lithium-ion battery, Auto-off indicators, Marchesini aluminium forged wheels, Carbon fiber heatshield and front mudguard, High-flow air filter	Racing style handle grips, Chain guard, Carbon fiber front mudguard, Carbon fiber heatshield, Carbon fiber wings, Billet aluminum steering stem with bike number, High-flow air filter, Machined mirror block-off plates, License plate mount removal plug, Ducati Data Analyser+ (DDA+) with GPS module \| Riding Modes, Power Modes, Cornering ABS EVO, Ducati Traction Control (DTC) EVO 3, Ducati Wheelie Control (DWC) EVO, Ducati Slide Control (DSC), Engine Brake Control (EBC) EVO 2, Auto tyre calibration, Ducati Power Launch (DPL), Ducati Quick Shift (DQS) up/down EVO 2, Full LED	Öhlins suspension, Lithium-ion battery, Quick adjustment buttons, Forged aluminium wheels, Coming home, Single seat configuration, Ducati Power Launch (DPL DVO, TFT colour display, Full LED lighting system,Full LED headlight, Daytime Running Light (DRL), Self cancelling turning indicators, Lap Timer, Pit Limiter, Rear suspension rod with adjustable length, Ducati Racing Gearbox (DRG) with Ducati Neutral Lock (DNL), Ducati Quick Shift (DQS) up/down 2.0, Billet aluminium steering stem with bike number, Öhlins SD20 steering damper. ↓
Wet Weight	193 kg / 425 lbs	193.5 kg / 426.5 lbs 188.5 kg / 415.5 lbs with full racing exhaust ↑	186.5 kg / 411.2 lbs ↓
Gear Ratios	1st 38/14 2nd 36/17 3rd 33/19 4th 32/21 5th 30/22 6th 30/24	1st 36/15 2nd 34/17 3rd 33/19 4th 32/21 5th 30/22 6th 27/22	1st = 36/15, 2nd = 34/17, 3rd = 33/19, 4th = 32/21, 5th = 30/22, 6th = 27/22
Safety Equipment	Riding Modes, Power Modes, Bosch Cornering ABS EVO, Ducati Traction Control (DTC) EVO, Ducati Wheelie Control (DWC) EVO, Ducati Slide Control (DSC), Engine Brake Control (EBC) EVO, Auto tyre calibration	Riding Modes, Power Modes, Bosch Cornering ABS EVO, Ducati Traction Control (DTC) EVO, Ducati Wheelie Control (DWC) EVO, Ducati Slide Control (DSC), Engine Brake Control (EBC) EVO, Auto tyre calibration	Riding Modes, Power Modes, Bosch Cornering ABS, Ducati Traction Control (DTC) EVO, Ducati Wheelie Control (DWC) EVO, Ducati Slide Control (DSC), Engine Brake Control (EBC) DVO, Auto tyre calibration, Race brake control, Road eCBS
Tyres - Front	Pirelli Diablo Supercorsa SP 120/70 ZR17	Pirelli Diablo Supercorsa SP 120/70 ZR17	120/70 ZR17, Pirelli Diablo Supercorsa SP-V4
Tyres - Rear	Pirelli Diablo Supercorsa SP 200/60 ZR17	Pirelli Diablo Supercorsa SP 200/60 ZR17	200/60 ZR17, Pirelli Diablo Supercorsa SP-V4
Primary Drive	Straight cut gears, Ratio 1.80:1	Straight cut gears; Ratio 1.80:1	Straight cut gears; Ratio 1.80:1
Rake	24.5°	24,5°	24,5°
Exhaust	4-2-1-2 system, with 2 catalytic converters and 2 lambda probes	4-2-1-2 system, with 2 catalytic converters and 4 lambda probes	4-2-1-2 system, with 2 catalytic converters and 4 lambda probes
Wheels - Front	3-spokes forged aluminum alloy 3.50 x 17 in	3.50 x 17 in ↑	3.50 x 17 in, 5-spoke aluminium alloy
Wheels - Rear	3-spokes forged aluminum alloy 6.00 x 17 in	6.00 x 17 in ↑	6.00 x 17 in, 5-spoke aluminium alloy
Transmission / Drive	6 Speed with Ducati Quick Shift (DQS) up/down EVO	Six-speed with Ducati Quick Shift (DQS) up/down EVO 2 ↓	Six-speed with Ducati Quick Shift (DQS) up/down EVO 2
Wheel Travel - Front	120 mm / 4.7 in	125 mm / 4.9 in ↑	125 mm / 4.9 in
Max Power	172 kW / 231 hp @ 15500 rpm with Ducati Performance exhaust	174 kW / 237 hp @ 15500 rpm ↑	175 kW / 235 hp @ 15750 rpm ↑
