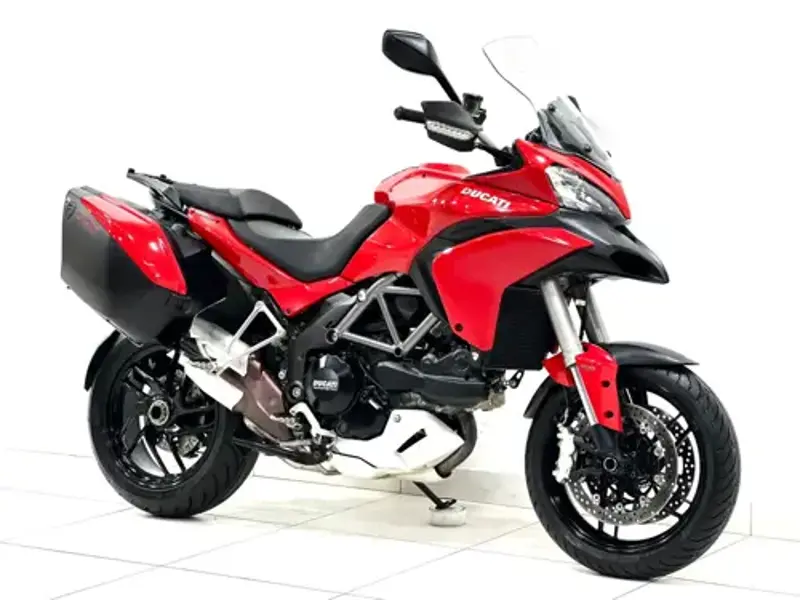

Ducati Multistrada 1200S Specs

2013 - 2014 • 2 variants

The Ducati Multistrada 1200S is an all-round motorcycle produced from 2013 to 2014 across 2 variants. It is powered by a four stroke, 90° °l° twin cylinder, dohc, desmodromic 4 valves per cylinder displacing 1198.40 cc. Peak power output is 150 hp. Peak torque is 136 Nm.

About the Ducati Multistrada 1200S

The Multistrada 1200S represents Ducati's contribution to the All-Round motorcycle segment, spanning the 2010 to 2017 production run. Our database contains detailed technical specifications for each model year, covering powertrain details, chassis geometry, suspension and braking systems, fuel capacity, and certified weight figures. Use the year navigation above to drill into year-specific data. All specifications are referenced from official Ducati documentation.

AdSense - 728Ã90

Ducati Multistrada 1200S by Year

2014 Ducati Multistrada 1200S View specs →

2013 Ducati Multistrada 1200S View specs →

Spec Evolution

How key specs changed across production years.

Specification	2010	2011	2012	2013	2014	2015	2016	2017
Dry Weight	192 kg / 423 lbs	192 kg / 423 lbs	192 kg / 423 lbs	192 kg / 423 lbs	192 kg / 423 lbs	212 kg / 467.4 lbs ↑	212 kg / 467.4 lbs	212 kg / 467.4 lbs
Seat Height	850 mm / 33.4 in	850 mm / 33.4 in	850 mm / 33.4 in	850 mm / 33.4 in	850 mm / 33.4 in	825 mm / 32.5 in. ↓	825 mm / 32.5 in.	825 mm / 32.5 in.
Engine Detail	Four stroke, 90° °L° twin cylinder, DOHC, desmodromic 4 valves per cylinder	Four stroke, 90° °L° twin cylinder, DOHC, desmodromic 4 valves per cylinder	Four stroke, 90° °L° twin cylinder, DOHC, desmodromic 4 valves per cylinder	Four stroke, 90° °L° twin cylinder, DOHC, desmodromic 4 valves per cylinder	Four stroke, 90° °L° twin cylinder, DOHC, desmodromic 4 valves per cylinder	Testastretta DVT, L-Twin cylinder, Dual Spark	Testastretta DVT, L-Twin	Testastretta DVT, L-Twin
Wheelbase	1530mm / 60.2 in	1530mm / 60.2 in	1530mm / 60.2 in	1530mm / 60.2 in	1530mm / 60.2 in	1,529 mm / 60.2 in. ↓	1,529 mm / 60.2 in.	1,529 mm / 60.2 in.
Brakes - Front	2 x 320 mm Semi-floating discs, radially mounted Brembo calipers, 4-piston, 2-pad. ABS as standard equipment	2 x 320 mm Semi-floating discs, radially mounted Brembo calipers, 4-piston, 2-pad. ABS as standard equipment	2 x 320 mm Semi-floating discs, radially mounted Brembo calipers, 4-piston, 2-pad. ABS as standard equipment	2 x 320 mm Semi-floating discs, radially mounted Brembo calipers, 4-piston, 2-pad. ABS as standard equipment	2 x 320 mm Semi-floating discs, radially mounted Brembo calipers, 4-piston, 2-pad. ABS as standard equipment	Double disc. ABS. Floating discs. Four-piston calipers. Radially mounted.	Double disc. ABS. Floating discs. Four-piston calipers. Radially mounted.	Double disc. ABS. Floating discs. Four-piston calipers. Radially mounted.
Fuel Capacity	20 Litres / 5.3 US gal / 4.4 Imp gal	20 Litres / 5.3 US gal / 4.4 Imp gal	20 Litres / 5.3 US gal / 4.4 Imp gal	20 Litres / 5.3 US gal / 4.4 Imp gal	20 Litres / 5.3 US gal / 4.4 Imp gal	20.00 litres / 5.28 gallons	20.00 litres / 5.28 gallons	20.00 litres / 5.28 gallons
Brakes - Rear	Single 245 mm disc, 2-piston caliper	Single 245 mm disc, 2-piston caliper	Single 245 mm disc, 2-piston caliper	Single 245 mm disc, 2-piston caliper	Single 245 mm disc, 2-piston caliper	Single disc. ABS. Two-piston calipers.	Single disc. ABS. Two-piston calipers.	Single disc. ABS. Two-piston calipers.
Suspension - Front	Sach 48 mm fully adjustable USD forks. Electronic compression and rebound damping adjustment with Ducati Skyhook Suspension	Sach 48 mm fully adjustable USD forks. Electronic compression and rebound damping adjustment with Ducati Skyhook Suspension	Sach 48 mm fully adjustable USD forks. Electronic compression and rebound damping adjustment with Ducati Skyhook Suspension	Sach 48 mm fully adjustable USD forks. Electronic compression and rebound damping adjustment with Ducati Skyhook Suspension	Sachs 48 mm fully adjustable USD forks. Electronic compression and rebound damping adjustment with Ducati Skyhook Suspension	48mm fully adjustable usd forks. Electronic compression and rebound damping adjustment with Ducati Skyhook Suspension (DSS)	48mm fully adjustable usd forks. Electronic compression and rebound damping adjustment with Ducati Skyhook Suspension (DSS)	48mm fully adjustable usd forks. Electronic compression and rebound damping adjustment with Ducati Skyhook Suspension (DSS)
Suspension - Rear	Progressive linkage with fully adjustable Öhlins monoshock. Electronic compression and rebound damping adjustment. Electronic spring preload with DSS aluminium single-sided swingarm	Progressive linkage with fully adjustable Öhlins monoshock. Electronic compression and rebound damping adjustment. Electronic spring preload with DSS aluminium single-sided swingarm	Progressive linkage with fully adjustable Öhlins monoshock. Electronic compression and rebound damping adjustment. Electronic spring preload with DSS aluminium single-sided swingarm	Progressive linkage with fully adjustable Öhlins monoshock. Electronic compression and rebound damping adjustment. Electronic spring preload with DSS aluminium single-sided swingarm	Progressive linkage with fully adjustable Sachs monoshock. Electronic compression and rebound damping adjustment. Electronic spring preload with DSS aluminium single-sided swingarm	Fully adjustable unit. Electronic compression and rebound damping adjustment. Electronic spring pre-load adjustment with Ducati Skyhook Suspension (DSS). Aluminium single-sided swingarm	Fully adjustable unit. Electronic compression and rebound damping adjustment. Electronic spring pre-load adjustment with Ducati Skyhook Suspension (DSS). Aluminium single-sided swingarm	Fully adjustable unit. Electronic compression and rebound damping adjustment. Electronic spring pre-load adjustment with Ducati Skyhook Suspension (DSS). Aluminium single-sided swingarm
Fuel System	Injection. Tsubishi electronic fuel injection system, Mikuni elliptical throttle bodies	-	-	-	-	Injection. Bosch electronic fuel injection system, elliptical throttle bodies with Ride-by-Wire, equivalent diameter 56 mm	Injection. Bosch electronic fuel injection system, elliptical throttle bodies with Ride-by-Wire, equivalent diameter 56 mm	Injection. Bosch electronic fuel injection system, elliptical throttle bodies with Ride-by-Wire, equivalent diameter 56 mm
Colours	Red, white, black	-	-	-	-	Red, Iceberg white	Red, White	Red, White, Grey
Clutch	Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.	Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.	Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.	Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.	Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.	Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run	Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run	Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run
Final Drive	Chain #530, front sprocket 15; rear sprocket 40	Chain #530, front sprocket 15; rear sprocket 40	Chain #530, front sprocket 15; rear sprocket 40	Chain #530, front sprocket 15; rear sprocket 40	Chain #530, front sprocket 15; rear sprocket 40	Chain	Chain	Chain
Length	2200 mm / 86.6 in	2200 mm / 86.6 in	2200 mm / 86.6 in	2200 mm / 86.6 in	2200 mm / 86.6 in	2,200 mm / 86.6 in. ↓	2,200 mm / 86.6 in.	2,200 mm / 86.6 in.
Wet Weight	220 kg / 485 lbs	220 kg / 485 lbs	220 kg / 485 lbs	220 kg / 485 lbs	220 kg / 485 lbs	235.0 kg / 518.1 lbs ↑	235.0 kg / 518.1 lbs	235.0 kg / 518.1 lbs
Compression Ratio	11.5:1	11.5:1	11.5:1	11.5:1	11.5:1	12.5:1 ↑	12.5:1	12.5:1
Gear Ratios	1st 37/15 / 2nd 30/17 / 3rd 27/20 / 4th 24/22 / 5th 23/24 / 6th 22/25	1.84:1 ↑	1.84:1	1st 37/15 / 2nd 30/17 / 3rd 27/20 / 4th 24/22 / 5th 23/24 / 6th 22/25 ↓	1st 37/15 / 2nd 30/17 / 3rd 27/20 / 4th 24/22 / 5th 23/24 / 6th 22/25	-	-	-
Emissions	-	-	-	-	-	Euro 3	Euro 4 ↑	Euro 4
Tyres - Front	120/70 - ZR17	120/70 - ZR17	120/70 - ZR17	120/70 - ZR17	120/70 - ZR17	120/70-17	120/70-17	120/70-17
Tyres - Rear	190/55 - ZR17	190/55 - ZR17	190/55 - ZR17	190/55 - ZR17	190/55 - ZR17	190/55-17	190/55-17	190/55-17
Rake	25°	25°	25°	25°	25°	24.0° ↓	24.0°	24.0°
Fuel Consumption	6.0 L/100 km / 16.8 km/l / 39.5 US mpg / 47.5 Imp mpg	6.0 L/100 km / 16.8 km/l / 39.5 US mpg / 47.5 Imp mpg	6.0 L/100 km / 16.8 km/l / 39.5 US mpg / 47.5 Imp mpg	6.0 L/100 km / 16.8 km/l / 39.5 US mpg / 47.5 Imp mpg	6.0 L/100 km / 16.8 km/l / 39.5 US mpg / 47.5 Imp mpg	-	4.90 litres/100 km (20.4 km/l or 48.00 mpg)	4.90 litres/100 km (20.4 km/l or 48.00 mpg)
Trail	110 mm / 4.33 in	110 mm / 4.33 in	110 mm / 4.33 in	110 mm / 4.33 in	110 mm / 4.33 in	109 mm / 4.3 in. ↓	109 mm / 4.3 in.	109 mm / 4.3 in.
Wheel Travel - Front	170 mm / 6.7 in	170 mm / 6.7 in	170 mm / 6.7 in	170 mm / 6.7 in	170 mm / 6.7 in	170 mm / 6.7 in.	170 mm / 6.7 in.	170 mm / 6.7 in.
Wheel Travel - Rear	170 mm / 6.7 in	170 mm / 6.7 in	170 mm / 6.7 in	170 mm / 6.7 in	170 mm / 6.7 in	170 mm / 6.7 in.	170 mm / 6.7 in.	170 mm / 6.7 in.
Ignition	Marelli electronic	Marelli electronic	Marelli electronic	Marelli electronic	Marelli electronic	-	Dual Spark	Dual Spark
Max Torque	118.7Nm / 12.1 kgm / 87.5 lb-ft @ 7500rpm	118.7Nm / 12.1 kgm / 87.5 lb-ft @ 7500rpm	118.7 Nm / 12.1 kgm / 87.5 lb-ft @ 7500rpm	124.5 Nm / 12.7 kgm / 91.8 lb-ft @ 7500rpm ↑	124.5 Nm / 12.7 kgm / 91.8 lb-ft @ 7500rpm	136.00 Nm (13.9 kgf-m or 100.3 ft.lbs) @ 7500 Revolutions ↑	136.00 Nm (13.9 kgf-m or 100.3 ft.lbs) @ 7500 Revolutions	136.00 Nm (13.9 kgf-m or 100.3 ft.lbs) @ 7500 Revolutions
Power-to-Weight Ratio	0.7813 HP/kg	-	-	-	-	0.7547 HP/kg	0.7547 HP/kg	0.7547 HP/kg
