Key Specifications
Engine
Four stroke, 90° °L° twin cylinder, SOHC, desmodromic 2 valves per cylinder
Power
64 kW / 87 hp @ 8250 rpm
Torque
78.5 Nm / 8.0 kgf-m 58 lb-ft @ 6250rpm
Top Speed
200.4 km/h / 124.5 mph
Fuel Capacity
15 L / 4.0 USgal / 3.3 Imp gal (13.5 L / 3.6 US gal / 3.0 Imp gal ABS version)

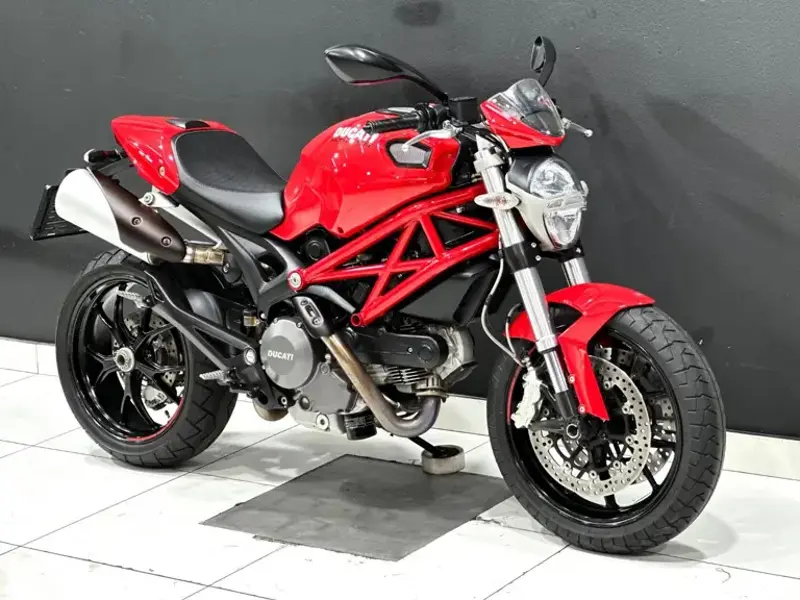

Full 2011 Ducati Monster 796 Specifications
Year
2011
Make Model
Ducati Monster 796
Seat Height
800 mm / 31.5 in
Wheelbase
1450 mm / 57.1in
Dry Weight (kg)
167
Wet Weight (kg)
187
Dry Weight
167 kg - 369 lbs / 169 kg -373 lbs ABS version
Fuel Capacity
15 L / 4.0 USgal / 3.3 Imp gal (13.5 L / 3.6 US gal / 3.0 Imp gal ABS version)
Wet Weight
187 kg / 412 lbs
Displacement
803 cc / 49.0 cu in
Engine Detail
Four stroke, 90° °L° twin cylinder, SOHC, desmodromic 2 valves per cylinder
Bore x Stroke
88 x 66 mm
Compression Ratio
11.0:1
Cooling System
Air cooled
Exhaust
Lightweight 2-1-2 system with catalytic converter with twin lambda probes
Fuel Consumption
5.2 L/100 km / 19.1 km/l . 45 US mpg / 54 Imp mpg
Fuel Induction
Siemens electronic fuel injection, 45mm throttle body
Ignition
Marelli electronic
Starter
Electric
Clutch
APTC wet multiplate with hydraulic control
Final Drive
Chain; front sprocket 15; rear sprocket 39
Gear Ratios
1st 32/13, 2nd 30/18, 3rd 28/21, 4th 26/23, 5th 22/22, 6th 24/26
Primary Drive
Straight cut gears; ratio 1.85:1
Transmission / Drive
6 Speed
Frame Type
Tubular steel trellis
Suspension - Front
Showa 43mm upside-down forks
Suspension - Rear
Progressive linkage with fully adjustable Sachs monoshock with piggy back aluminum swing arm
Rake
24°
Trail
87mm / 3.42 in
Wheel Travel - Front
120 mm / 4.7 in
Wheel Travel - Rear
148 mm / 5.8 in
Instrumentation
Digital unit displaying: Speedometer, rev counter, clock, scheduled maintenance warning, oil temperature, trip fuel, lap time, warning light for low oil pressure, fuel level, fuel reserve, neutral, turn signals, overrev, immobilizer. Ready for DDA system.
Brakes - Front
2 x 320mm Discs, 4 piston calipers
Brakes - Rear
Single 245 mm disc, 2 piston caliper
Tyres - Front
120/70 -ZR17
Tyres - Rear
160/55 -ZR17
