Key Specifications
Engine
Four stroke, 90° °L° twin cylinder, DOHC, desmodromic 4 valves per cylinder.
Power
119 kW / 162 hp / @ 9500rpm
Torque
127.5 Nm / 13.0 kgf-m / 94 lb-ft / @ 8000rpm
Top Speed
252.4 km/h / 156.8 mph
Fuel Capacity
17 Litres / 4.5 US gal / 3.7 Imp gal

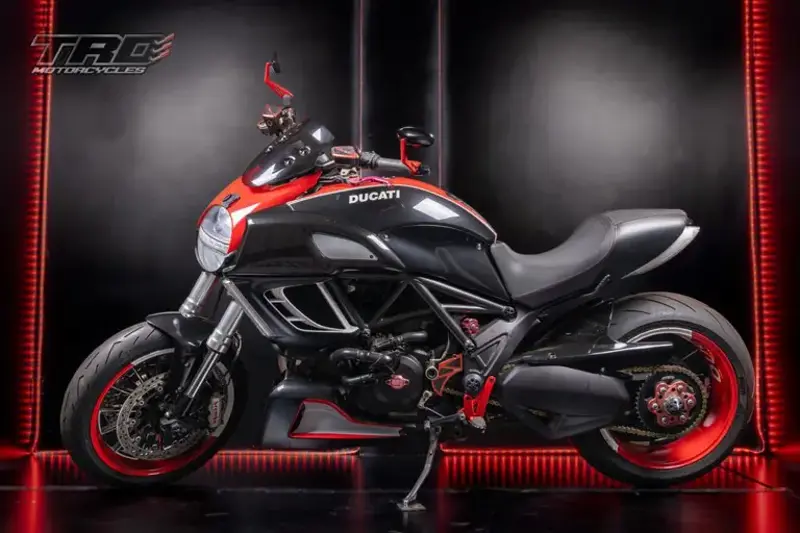

Full 2011 Ducati Diavel Specifications
Year
2011
Make Model
Ducati Diavel
Seat Height
770 mm / 30.3in
Wheelbase
1590 mm / 62.6 in
Height
1192 mm / 46.9 in
Length
2235 mm / 87.9 in
Width
860 mm / 33.8 in
Wet Weight (kg)
239
Dry Weight (kg)
210
Dry Weight
210 Kg / 463 lbs
Fuel Capacity
17 Litres / 4.5 US gal / 3.7 Imp gal
Wet Weight
239 kg / 527lbs
Displacement
1198.4 cc / 73.1 cu in
Engine Detail
Four stroke, 90° °L° twin cylinder, DOHC, desmodromic 4 valves per cylinder.
Bore x Stroke
106 x 67.9 mm
Compression Ratio
11.5:1
Cooling System
Liquid cooled
Exhaust
Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers
Fuel Consumption
5.2 L/100 km / 19.4 km/l / 45.6 US mpg / 54.8 Imp mpg
Fuel Induction
Mitsubishi electronic fuel injection system, Mikuni elliptical throttle bodies with RbW
Ignition
Marelli electronic
Starter
Electric
Clutch
Light action, wet, multiplate clutch with hydraulic control. Self-servo action on drive, slipper action on over-run.
Final Drive
Chain Front sprocket 15; Rear sprocket 43
Gear Ratios
1st 37/15 / 2nd 30/17 / 3rd 27/20 / 4th24/22 / 5th 23/24 / 6th 22/25
Transmission / Drive
6 Speed
Frame Type
Tubular steel Trellis frame
Suspension - Front
Marzocchi 50mm fully adjustable USD forks
Suspension - Rear
Progressive linkage with fully adjustable Sachs monoshock. Aluminium single-sided swingarm,
Rake
28°
Steering Angle
70°
Wheel Travel - Front
120 mm / 4.72 in
Wheel Travel - Rear
120 mm / 4.72 in
Instrumentation
Tank mounted instrumentation with TFT colour display: Gear selected, air temp, battery voltage, trips 1 & 2, fuel reserve trip, average and actual fuel consumption and speed, trip time, scheduled maintenance. Full status and/or management of Riding Modes, DTC, RbW and ABS.
Brakes - Front
2 x 320 mm Semi-floating discs, radially mounted Monobloc Brembo calipers, 4-piston with ABS
Brakes - Rear
Single 265 mm disc, 2-piston floating caliper with ABS
Tyres - Front
120/70 ZR 17
Tyres - Rear
240/45 ZR17
