Key Specifications
Engine
Four stroke, two cylinder horizontally opposed Boxer, DOHC, 4 valves per cylinder, intake 40mm, outlet 34 mm
Power
92 kW / 125 hp @ 7750 rpm
Torque
125 Nm / 12.7 kgf-m / 92 lb-ft @ 6500 rpm
Weight
231 kg / 509.2 lbs
Fuel Capacity
18 Liters / 5.3 US gal

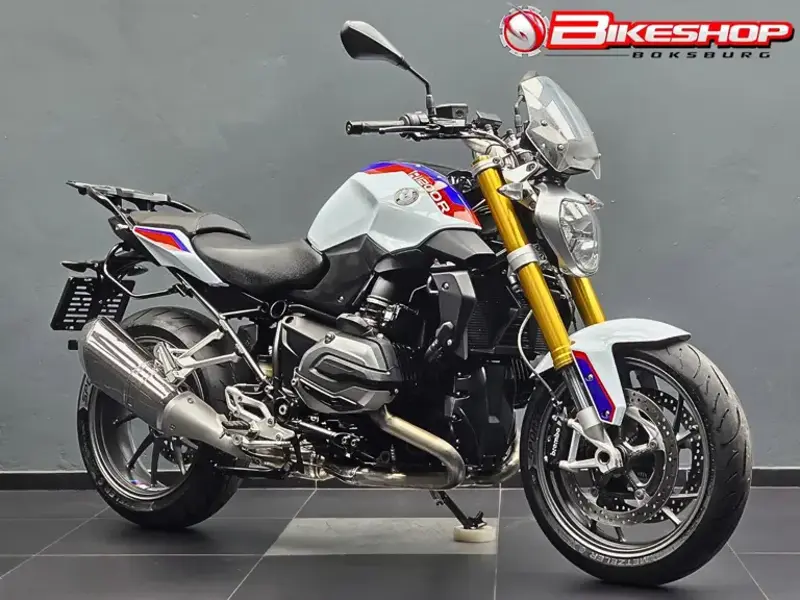

Full 2016 BMW R 1200R LC Specifications
Year
2016
Make Model
BMW R 1200R LC
Seat Height
760 mm - 820 mm / 29.9 in - 32.2 in
Wheelbase
1515 mm / 59.6 in
Height
1300 mm / 51.1 in (excl. mirrors)
Length
2165 mm / 85.2 in
Width
880 mm / 34.6 in (incl. mirrors)
Wet Weight (kg)
231
Fuel Capacity
18 Liters / 5.3 US gal
Max Load
450 kg / 992 lbs
Wet Weight
231 kg / 509.2 lbs
Displacement
1170 cc / 71.4 cub in.
Engine Detail
Four stroke, two cylinder horizontally opposed Boxer, DOHC, 4 valves per cylinder, intake 40mm, outlet 34 mm
Bore x Stroke
101 x 73 mm
Compression Ratio
12.5:1
Cooling System
Liquid / Air cooled
Fuel Induction
Throttle valve mm 52 Carburetion BMS-X Emission control Closed-loop 3-way catalytic converter
Fuel Reserve
4 Litres / 1.0 US gal
Fuel Type
Premium unleaded (95 RON)
Ignition
BMS-K
Starter
Electric
Battery Capacity
12 V / 11,8 Ah, maintenance-free
Clutch
Oil lubricated clutch, hydraulically operated
Final Drive
Shaft
Transmission / Drive
Constant mesh 6-speed gearbox with helical gear teeth
Frame Type
Two-section frame, front- and bolted on rear frame, load-bearing engine
Suspension - Front
Telescopic Upside-Down fork; stanchion diameter 45 mm
Suspension - Rear
Cast aluminium single-sided swing arm with BMW Motorrad Paralever; WAD strut (travel-related damping), spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable at handwheel
Steering Head Angle
62.3°
Wheel Travel - Front
140 mm / 5.5 in
Wheel Travel - Rear
140 mm / 5.5 in
Alternator
Three-phase alternator 510 W (nominal power)
Electrical System
Alternator three-phase alternator 508 W (nominal power) Battery /Ah 12V/12 maintenance-free Headlight H7W / LED (SA) Starter 0.9 kW
Brakes - Front
2 x 320 floating discs, 4 piston calipers
Brakes - Rear
Single 275mm disc, 2 piston caliper
ABS
BMW Motorrad Integral ABS (part-integral), disengageable
Rims - Front
3.50 x 17
Rims - Rear
5.50 x 17
Tyres - Front
120/70 ZR 17
Tyres - Rear
180/55 ZR 17
Wheel Caster
125,6 mm / 4.9 in
