Key Specifications
Engine
Four stroke, transverse six cylinder, 4 valves per cylinder
Power
118 kW / 160.5 hp @ 7750 rpm
Torque
175 Nm / 17.8 kgf-m / 129 lb-ft @ 5250 rpm
Weight
348.0 kg / 767.2 in
Fuel Capacity
26.5 Litres / 7.0 US gal

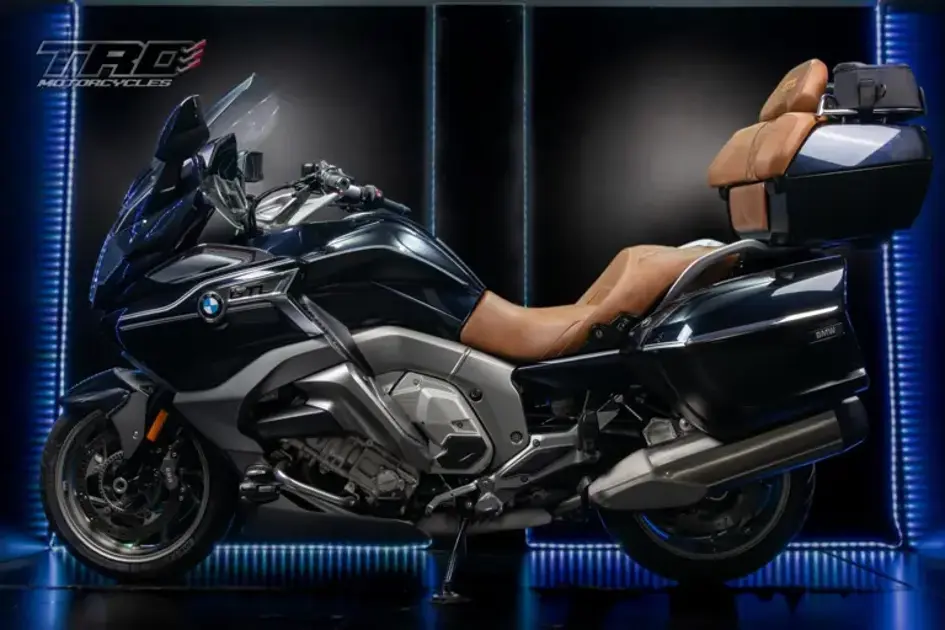

Full 2018 BMW K 1600 GTL Specifications
Year
2017 - 18
Make Model
BMW K 1600 GTL
Seat Height
750 mm / 29.5 in If adjustable, lowest setting
Wheelbase
1680 mm / 66.1 in
Height
1465 mm / 57.7 in
Length
2489 mm / 98.0 in
Width
1000 mm / 39.4 in
Wet Weight (kg)
348.0
Dry Weight (kg)
321
Dry Weight
321 kg / 707.7 lbs
Fuel Capacity
26.5 Litres / 7.0 US gal
Wet Weight
348.0 kg / 767.2 in
Displacement
1649 cc / 100.6 cu in.
Engine Detail
Four stroke, transverse six cylinder, 4 valves per cylinder
Bore x Stroke
72 x 67.5 mm
Compression Ratio
12.2:1
Cooling System
Liquid cooled
Fuel Induction
52mm Throttle valve diameter, BMS-X
Fuel Reserve
4 Litres / 1.1 US gal
Fuel Type
Premium unleaded (95 RON)
Ignition
Digital CDI
Starter
Electric
Battery Capacity
12 V / 19 Ah maintenance free
Clutch
Multiplate wet clutch, hydraulically activated
Final Drive
Shaft
Gear Ratios
1st 2.23 / 2nd 1.641 / 3rd 1.319 / 4th 1.101 / 5th 0.926 / 6th 0.788
Transmission / Drive
Constant-mesh 6-speed gearbox, helical cut
Frame Type
Bridge-type frame, cast aluminium, load-bearing engine
Suspension - Front
Dual longitudinal control arm, Dynamic ESA semi-active suspension (road and dynamic modes)
Suspension - Rear
Paralever (single-sided swing arm), central spring strut, rebound/continuously variable, Dynamic ESA semi-active suspension (road and dynamic modes)
Steering Head Angle
62.2°
Trail
108.4 mm / 4.3 in
Wheel Travel - Front
115 mm / 4.9 in
Wheel Travel - Rear
135 mm / 5.3 in
Brakes - Front
2 x 320mm discs, 4 piston calipers
Brakes - Rear
Single 320mm disc, 2 piston caliper
ABS
BMW Motorrad ABS (partial integral)
Rims - Front
3.0 x 17
Rims - Rear
6.00 x 17
Tyres - Front
120/70 ZR17
Tyres - Rear
190/55 ZR17
Wheels
Cast aluminium wheels
