Key Specifications
Power
78 kW / 105 hp @ 8500 rpm
Torque
92 Nm / 67 .8 lb-ft @ 6500 rpm
Fuel Capacity
3.43 US gallons

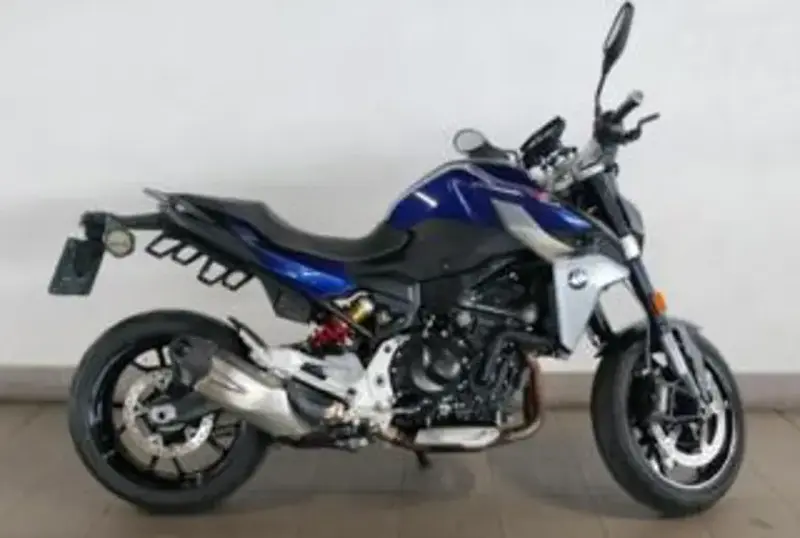

Full 2020 BMW F 900R Specifications
Year
2020
Colours
Red/silver, blue/black, black
Make Model
BMW F 900R
Warranty
3 years
Width (mm)
860 mm
Height (in.)
44.5 inches
Width (in.)
33.9 inches
Height (mm)
1130 mm
Wheelbase (mm)
1521 mm
Wheelbase (in.)
59.9 inches
Seat Heigth -Alternate (mm)
860 mm
Seat Heigth -Alternate (in.)
33.9 inches
Seat Height (mm)
770 mm
Seat Height (in.)
30.3 inches
Length (mm)
2140 mm
Length (in.)
84.3 inches
Seat Height
815 mm / 32.0 in (OE suspension lowering kit: 770 mm, OE low seat: 790 mm, OA high seat: 835 mm, OA comfort seat: 840 mm, OE extra high seat: 865 mm)
Wheelbase
1518 mm / 59.7 in
Height
1130 mm / 44.4 om
Length
2140 mm / 84.2 in
Width
815 mm / 32.0 in
Fuel Capacity (gal.)
3.43 US gallons
Fuel Capacity (l)
13.00 litres
Wet Weight (lbs.)
465.2 pounds
Wet Weight (kg)
211.0 kg
Fuel Capacity
13 Litres / 3.4 US gal
Wet Weight
211 kg / 465 lbs
Fuel Reserve (l)
3.50 litres
Fuel Reserve (gal.)
0.92 US gallons
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Bore x Stroke (in,)
3.4 x 3.0 inches
Bore x Stroke (mm)
86.0 x 77.0 mm
CO2
97.4 CO2 g/km. (CO2 - Carbon dioxide emission)
Displacement (cc)
895.0 cc
Displacement (ci)
54.61 cubic inches
Engine Type
Twin, four-stroke
Displacement
895 cc / 54.6 cu-in
Engine Detail
Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Fuel System
Injection. Electronic injection
Bore x Stroke
86 x 77 mm
Compression Ratio
13.1:1
Cooling System
Liquid cooled
Emissions
Closed-loop 3-way catalytic converter, emission standard EU-5
Engine Lubrication
Dry sump
Fuel Consumption
4.20 litres/100 km (23.8 km/l or 56.00 mpg)
Fuel Induction
Electronic injection
Ignition
Electronic
Starter
Electric
Valve System
4
Battery Capacity
12 V / 12 Ah, maintenance-free
Clutch
Multiple-disc wet clutch (anti hopping), mechanically operated
Final Drive
Endless O-ring chain with shock damping in rear wheel hub
Gearbox
6-speed
Primary Drive
Endless O-ring chain with shock damping in rear wheel hub
Transmission / Drive
Constant mesh 6-speed gearbox integrated in crankcase
Trail (in.)
4.5 inches
Trail (mm)
114 mm
Wheel Travel - Front (in.)
5.3 inches
Wheel Travel - Front (mm)
135 mm
Wheel Travel - Rear (in.)
5.6 inches
Wheel Travel - Rear (mm)
142 mm
Frame Type
Bridge-type frame, steel shell construction
Suspension - Front
43mm Upside-down telescopic fork
Suspension - Rear
Cast aluminium dual swing arm, central spring strut, spring pre-load hydraulically adjustable, rebound damping adjustable
Rake
29.5°
Steering Head Angle
60,5°
Trail
114.3 mm / 4.5 in
Wheel Travel - Front
135 mm / 5.3 in
Wheel Travel - Rear
142 mm / 5.5 in
Alternator
permanent magnetic alternator 416 W (nominal power)
Lighting system
LED headlamps
Brakes - Front
2X 320mm floating discs, 4-piston radial brake calipers
Brakes - Rear
Single 265mm discs, single-piston floating caliper
ABS
BMW Motorrad ABS
Tyres - Front
120/70 ZR 17
Tyres - Rear
180/55 ZR 17
Wheels
Cast aluminium wheels
Wheels - Front
3.50 x 17
Wheels - Rear
5.50 x 17
