Key Specifications
Power
64 kW / 87 hp @ 8000 rpm
Torque
86 Nm / 8.8 kgf-m / 63 lbs/ft @ 6000 rpm
Top Speed
218 km/h / 135.5 mph
Fuel Capacity
16.00 litres

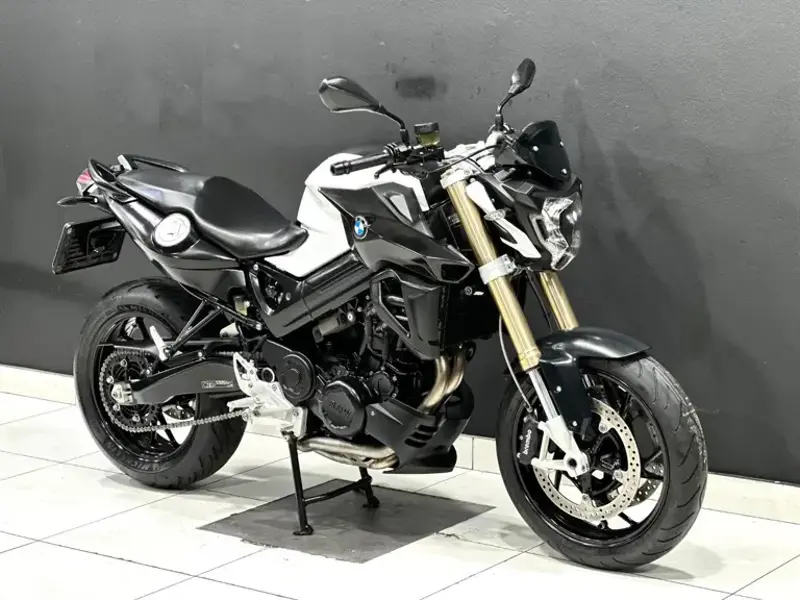

Full 2015 BMW F 800R Specifications
Year
2015
Colours
Blue/white, White, Black/white, Blue
Make Model
BMW F 800R
Height (mm)
1,235 mm
Height (in.)
48.6 inches
Width (mm)
860 mm
Seat Height (mm)
790 mm
Seat Height (in.)
31.1 inches
Length (mm)
2,145 mm
Length (in.)
84.4 inches
Wheelbase (in.)
59.8 inches
Width (in.)
33.9 inches
Wheelbase (mm)
1,520 mm
Seat Height
800 mm / 31.5 in. (low seat: 775 mm / 30.5 in., high seat: 825 mm / 32.5 in)
Height
1160 mm / 45.7 in (excl. mirrors)
Length
2145 mm / 84.4 in.
Width
905 mm / 35.6 in. (incl. mirrors)
Wet Weight (kg)
202.0 kg
Wet Weight (lbs.)
445.3 pounds
Fuel Capacity (l)
16.00 litres
Fuel Capacity (gal.)
4.23 gallons
Dry Weight (lbs.)
390.2 pounds
Dry Weight (kg)
177
Dry Weight
177 kg / 390 lbs
Fuel Capacity
16 Litres / 4.2 US gal
Wet Weight
199 kg / 439 lbs.
CO2
83.5 CO2 g/km. (CO2 - Carbon dioxide emission)
Displacement (cc)
798.00 cc
Displacement (ci)
48.69 cubic inches
Engine Type
Twin, four-stroke
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Fuel Reserve (gal.)
1.06 gallons
Bore x Stroke (mm)
82.0 x 75.6 mm
Bore x Stroke (in,)
3.2 x 3.0 inches
Fuel Reserve (l)
4.00 litres
Displacement
798 cc / 47.7 cub. in.
Engine Detail
Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder
Fuel System
Injection. Electronic intake pipe injection / digital engine management (BMS-KP)
Bore x Stroke
82 x 75.8 mm
Compression Ratio
12.0:1
Cooling System
Liquid cooled
Emissions
Closed-loop 3-way catalytic converter, emission standard EU-3
Engine Lubrication
Dry sump
Exhaust
Closed-loop 3-way catalytic converter, emission standard EU-3
Fuel Consumption
6.1 L/100 km / 16.4 km/l / 38.6 US mpg
Fuel Induction
Electronic injection, digital engine electronics (BMS-KP)
Ignition
Knock control and oxygen sensors.
Lubrication
Wet sump
Starter
Electric
Valve System
4
Battery Capacity
12 V / 14 Ah, maintenance-free
Clutch
Multi-plate clutch in oil bath, mechanically operated
Final Drive
Chain
Gear Ratios
1st 2.462 / 2nd 1.750 / 3rd 1.381 / 4th 1.227 / 5th 1.130 / 6th 1.042: 1
Gearbox
6-speed
Primary Drive
O-ring chain with shock damping in rear wheel hub
Transmission / Drive
6 Speed
Trail (in.)
3.6 inches
Trail (mm)
91 mm
Wheel Travel - Front (in.)
4.9 inches
Wheel Travel - Front (mm)
125 mm
Wheel Travel - Rear (in.)
4.9 inches
Wheel Travel - Rear (mm)
125 mm
Frame Type
Bridge frame made aluminium, load-supporting engine
Suspension - Front
43mm Telescopic fork
Suspension - Rear
Cast aluminium double-sided swing arm, central, suspension strut, spring pre-tension by means of hand
Rake
25°
Trail
91 mm / 3.6 in.
Wheel Travel - Front
125 mm / 4.9 in.
Wheel Travel - Rear
125 mm / 4.9 in.
Alternator
Three-phase alternator 400 W
Brakes - Rear Diameter (mm)
265 mm
Brakes - Rear Diameter (in.)
10.4 inches
Brakes - Front Diameter (mm)
320 mm
Brakes - Front Diameter (in.)
12.6 inches
Brakes - Front
2 x 320mm discs, 4 piston calipers
Brakes - Rear
Single 265mm disc, 1 piston caliper
Rims
Cast aluminium
Tyres - Front
120/70 ZR17
Tyres - Rear
180/55 ZR17
Wheels
Cast aluminium
Wheels - Front
3.50 x 17"
Wheels - Rear
5.50 x 17"
