Key Specifications
Engine
Four stroke, longitudinal 90°V twin, DOHC with mixed gear/chain timing system, 4 valves per cylinder Twin Spark
Power
125 hp / 91.9 kW @ 8500 rpm
Torque
114 Nm / 11.6 kgf-m / 84.6 lb/ft @ 6500 rpm
Weight
214 kg / 471.7 lbs 228kg / 502 lbs Travel Pack
Fuel Capacity
24 Litres / 6.34 US gal
Advertisement

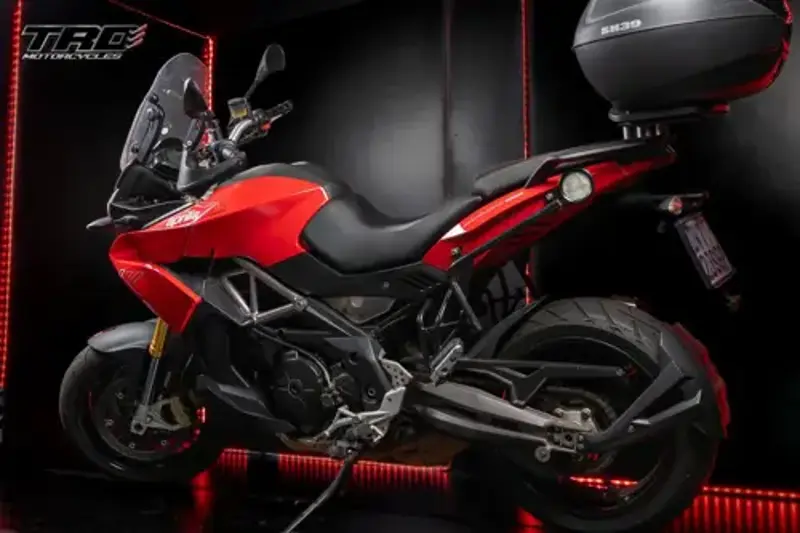

Full 2015 Aprilia Caponord 1200 Specifications
Year
2015
Make Model
Aprilia Caponord 1200
Seat Height
840 mm / 33.0 in
Wheelbase
1564.6 mm / 61.6 in
Height
1440 mm / 56.6 in
Length
2245 mm / 88.3 in
Dry Weight
214 kg / 471.7 lbs 228kg / 502 lbs Travel Pack
Fuel Capacity
24 Litres / 6.34 US gal
Displacement
1197 cc / 73.0 cu in
Engine Detail
Four stroke, longitudinal 90°V twin, DOHC with mixed gear/chain timing system, 4 valves per cylinder Twin Spark
Bore x Stroke
106 x 67.8 mm
Compression Ratio
12.0 ± 0.5 : 1
Cooling System
Liquid cooled
Exhaust
2 into 1 exhaust system in 100% stainless steel with three-way catalytic converter and lambda probe
Fuel Induction
Integrated engine management system. Injection with triple map Ride by Wire throttle management: Sport (S), Touring (T), Rain (R)
Fuel Reserve
5 Litres / 1.3 US gal
Ignition
Digital electronic, integrated with the injection, two spark plugs per cylinder
Starter
Electric
Clutch
Multiple discs in oil bath, hydraulically operated
Final Drive
Chain.
Final Drive Ratio
17/42
Gear Ratios
1st 14/37 2nd 18/32 3rd 21/28 4th 24/26 5th 25/24 6th 27/24
Transmission / Drive
6 Speed
Frame Type
Modular tubular steel frame fastened to aluminum side plates by high strength bolts. Removable steel rear
Suspension - Front
Sachs ø43 mm upside-down front fork with fully adjustable compression and rebound damping and spring preload.
Suspension - Rear
Sachs hydraulic shock absorber with adjustable rebound and preload.
Rake
26.1°
Trail
125 mm / 4.9 in
Wheel Travel - Front
167 mm / 6.5 in
Wheel Travel - Rear
150 mm / 5.9 in
Alternator
690 W/6000 rpm
Brakes - Front
2x Ø320 mm stainless steel floating discs. Brembo four-piston radial callipers. Metal braided brake hoses.
Brakes - Rear
Single Ø240 mm stainless steel disc. Single piston Brembo caliper. Metal braided brake hose. Continental two channel ABS system and Aprilia Traction Control (ATC).
Tyres - Front
120/70 -ZR17
Tyres - Rear
180/55 -ZR17
Wheels
Lightweight aluminium alloy with three split spokes.
Wheels - Front
3.50 X 17
Wheels - Rear
6.00 x 17
