| General |
| Comments | Windscreen | Throttle By Wire. Model id NC750XA. |
| Year | 2015 | - |
| Colours | Black, White, Matt Khaki Green | Candy Chromosphere Red, Matte Jeans Blue Metallic, Pearl Deep Mud Grey |

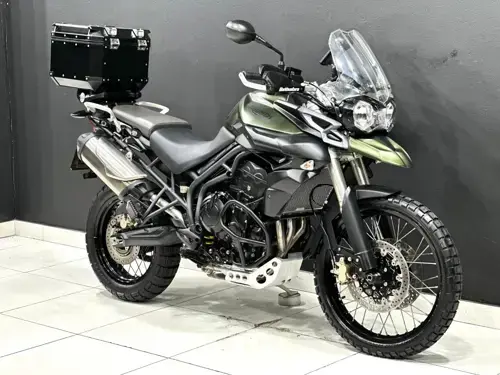

| Make Model | Triumph Tiger 800 XC | - |
| Warranty | 24 months unlimited milage | One year transferable, unlimited-mileage limited warranty. |
| Dimensions |
| Ground Clearance (in.) | - | 5.7 inches |
| Seat Height (in.) | 33.3 inches | 31.5 inches |
| Seat Height (mm) | 845 mm | 800 mm |
| Storage | Top box, saddle bags | 22-liter utility compartment |
| Length (mm) | 2,215 mm | 2210 mm |
| Length (in.) | 87.2 inches | 87.0 inches |
| Ground Clearance (mm) | - | 145 mm |
| Wheelbase (mm) | 1,545 mm | 1527 mm |
| Width (in.) | 34.1 inches | 33.3 inches |
| Width (mm) | 865 mm | 846 mm |
| Height (mm) | 1,390 mm | 1330 mm |
| Wheelbase (in.) | 60.8 inches | 60.1 inches |
| Height (in.) | 54.7 inches | 52.4 inches |
| Seat Height | 845 mm - 865 mm / 33.3 in- 34.1 in adjustable | 800 mm / 31.5 in. |
| Wheelbase | 1545 mm / 60.8 in | 1527 mm / 60.1 in. |
| Height | 1390 mm / 54.7 in (without mirrors) | 1330 mm / 52.4 in. |
| Length | 2215 mm / 87.1in | 2210 mm / 87.0 in. |
| Width | 865 mm / 34.1 in (with handlebars) | 846 mm / 33.3 in. |
| Weights & Capacities |
| Wet Weight (lbs.) | 474.0 pounds | 471.8 pounds |
| Wet Weight (kg) | 215.0 kg | 214.0 kg |
| Oil Capacity (Quarts) | 0.24 quarts | 4.23 US quarts |
| Fuel Capacity (l) | 19.00 litres | 14.10 litres |
| Fuel Capacity (gal.) | 5.02 gallons | 3.73 US gallons |
| Dry Weight (lbs.) | 418.9 pounds | - |
| Dry Weight (kg) | 190 | - |
| Oil Capacity (l) | 3.70 litres | 4.00 litres |
| Dry Weight | 190 kg / 419 lbs | - |
| Fuel Capacity | 19 Litres / 5.0 US gal / 4.2 Imp gal | 14.10 litres / 3.73 US gallons |
| Oil Capacity | 3.7 L / 0.98 US gal / 0.81 Imp gal | - |
| Wet Weight | 215 kg / 474 lbs | 214.0 kg / 471.8 lbs |
| Performance |
| Max Power | 70.8 KW / 95 hp @ 9300 rpm | - |
| Max Torque | 79 Nm / 8.1 kgf-m / 58 ft.lb @ 7850 rpm | 69.0 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 4000 rpm |
| Power-to-Weight Ratio | 0.5000 HP/kg | - |
| Engine |
| Displacement (cc) | - | 745.0 cc |
| Displacement (ci) | - | 45.46 cubic inches |
| Bore x Stroke (in,) | 2.9 x 2.4 inches | 3.0 x 3.1 inches |
| Engine Type | In-line three, four-stroke | Twin, four-stroke |
| Bore x Stroke (mm) | 74.0 x 61.9 mm | 77.0 x 80.0 mm |
| CO2 | 133.2 CO2 g/km. (CO2 - Carbon dioxide emission) | 81.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Fuel Control | Double Overhead Cams/Twin Cam (DOHC) | Single Overhead Cams (SOHC) |
| Displacement | 799 cc / 48.7 cub in | - |
| Engine Detail | Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder. | - |
| Fuel System | Injection. Multipoint sequential electronic fuel injection | Injection. PGM-FI electronic fuel injection |
| Bore x Stroke | 74 x 61.9 mm | - |
| Compression Ratio | - | 10.7:1 |
| Cooling System | Liquid cooled | - |
| Emissions | - | Meets current EPA standards. California version meets current CARB standards. |
| Exhaust | Stainless Steel, 3 into 1, high-level stainless steel silencer | - |
| Fuel Consumption | 5.74 litres/100 km (17.4 km/l or 40.98 mpg) | 3.50 litres/100 km (28.6 km/l or 67.21 mpg) |
| Fuel Induction | Multipoint sequential electronic fuel injection | - |
| Ignition | Digital CDI | Computer controlled digital transistorised with electronic advance |
| Lubrication | Wet sump | - |
| Starter | Electric | Electric |
| Valve System | 4 | 4 |
| Drivetrain |
| Clutch | Wet, multi-plate | Multiplate wet, optional DCT |
| Final Drive | Chain, O-ring | Chain (final drive) |
| Gearbox | 6-speed | 6-speed |
| Primary Drive | O ring chain | - |
| Sprocket | - | 16/43 (front/rear) |
| Transmission / Drive | 6 Speed | - |
| Chassis |
| Trail (in.) | 3.8 inches | 4.3 inches |
| Wheel Travel - Rear (mm) | 215 mm | 120 mm |
| Wheel Travel - Rear (in.) | 8.5 inches | 4.7 inches |
| Wheel Travel - Front (mm) | 220 mm | 120 mm |
| Wheel Travel - Front (in.) | 8.7 inches | 4.7 inches |
| Trail (mm) | 95 mm | 110 mm |
| Frame Type | Tubular steel trellis frame, swingarm: Twin-sided, cast aluminum alloy | Diamond; steel pipe |
| Suspension - Front | Showa 43mm upside down forks | Showa 41mm telescopic fork |
| Suspension - Rear | Showa monoshock with hydraulically adjustable preload | Monoshock damper, Pro-Link swingarm |
| Rake | 24.3° | 27.0° |
| Trail | 95.3 mm / 3.75 in | 110 mm / 4.3 in. |
| Wheel Travel - Front | 180 mm / 7.1 in | 120 mm / 4.7 in. |
| Wheel Travel - Rear | 170 mm / 6.7 in | 120 mm / 4.7 in. |
| Electrical Systems |
| Instrumentation | LCD multi-functional instrument pack with digital speedometer, trip computer, analogue tachometer, gear position indicator, fuel gauge, service indicator, switchable ABS and clock | LCD instruments |
| Lighting system | - | LED lights front and rear |
| Wheels & Brakes |
| Brakes - Front Diameter (in.) | 12.1 inches | - |
| Brakes - Front Diameter (mm) | 308 mm | - |
| Brakes - Rear Diameter (in.) | 10.0 inches | - |
| Brakes - Rear Diameter (mm) | 255 mm | - |
| Brakes - Front | 2 x 308 mm floating discs, Nissin 2-piston sliding caliper, ABS available | Single disc. ABS. Hydraulic. Two-piston calipers. |
| Brakes - Rear | Single 255 mm disc, Nissin single-piston sliding caliper, ABS available | Single disc. ABS. Hydraulic. Single-piston caliper. |
| Rims | 32-spoke, aluminium rim | Multi-Spoke Aluminium Cast |
| Tyres - Front | 90/90 R21 | 120/70-ZR17 |
| Tyres - Rear | 150/70 R17 | - |
| Wheels - Front | 36-Spoke 21 x 2.5in | - |
| Wheels - Rear | 32-Spoke 17 x 4.25in | - |
