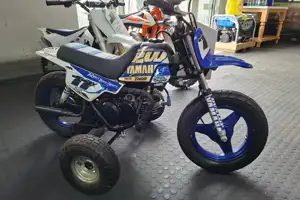

2022 KTM 65 SX vs 2019 Yamaha PW50
Full specifications comparison •
2 motorcycles
Full Specifications
Differs
Same
| General |
| Colours | Orange/white/black | Team Yamaha Blue |
| Warranty | - | 90 Day Limited Factory Warranty |
| Dimensions |
| Wheelbase (in.) | 50.0 inches | 33.7 inches |
| Seat Height (mm) | 750 mm | 485 mm |
| Seat Height (in.) | 29.5 inches | 19.1 inches |
| Ground Clearance (mm) | 280 mm | 94 mm |
| Ground Clearance (in.) | 11.0 inches | 3.7 inches |
| Height (in.) | - | 27.8 inches |
| Height (mm) | - | 706 mm |
| Length (in.) | - | 49.0 inches |
| Length (mm) | - | 1245 mm |
| Width (in.) | - | 24.0 inches |
| Wheelbase (mm) | 1270 mm | 856 mm |
| Width (mm) | - | 610 mm |
| Weights & Capacities |
| Wet Weight (kg) | - | 40.8 kg |
| Wet Weight (lbs.) | - | 90.0 pounds |
| Dry Weight (kg) | 53 | - |
| Dry Weight (lbs.) | 116.8 pounds | - |
| Fuel Capacity (gal.) | 0.92 US gallons | 0.53 US gallons |
| Fuel Capacity (l) | 3.50 litres | 2.01 litres |
| Engine |
| Displacement (cc) | 64.9 cc | 49.0 cc |
| Bore x Stroke (in,) | 1.8 x 1.6 inches | 1.6 x 1.5 inches |
| Engine Type | Single cylinder, two-stroke | Single cylinder, two-stroke |
| Displacement (ci) | 3.96 cubic inches | 2.99 cubic inches |
| Bore x Stroke (mm) | 45.0 x 40.8 mm | 40.0 x 39.2 mm |
| Engine Detail | - | Reed-valve inducted |
| Fuel System | Carburettor | Carburettor. Mikuni VM12/1 |
| Compression Ratio | - | 6.0:1 |
| Engine Lubrication | Mixture oil lubrication | Autolube oil injection system |
| Ignition | AET digital | CDI |
| Starter | Kick | Kick |
| Drivetrain |
| Clutch | Wet, multi-disc clutch, Formula hydraulics | Wet centrifugal automatic clutch |
| Final Drive | Chain (final drive) | Shaft drive (cardan) (final drive) |
| Gearbox | 6-speed | Automatic |
| Primary Drive | 1/2 x 1/4´ chain | - |
| Chassis |
| Wheel Travel - Rear (mm) | 270 mm | 51 mm |
| Wheel Travel - Rear (in.) | 10.6 inches | 2.0 inches |
| Wheel Travel - Front (mm) | 215 mm | 61 mm |
| Wheel Travel - Front (in.) | 8.5 inches | 2.4 inches |
| Trail (mm) | - | 51 mm |
| Trail (in.) | - | 2.0 inches |
| Frame Type | Central-tube frame with double-cradle | Steel tube backbone |
| Suspension - Front | XACT 35 WP Upside-Down fork, Ø 35 mm | Telescopic fork |
| Suspension - Rear | XACT WP mono shock | Unit swingarm |
| Rake | 25.5° | 25.5° |
| Wheels & Brakes |
| Brakes - Front | Single disc | Expanding brake (drum brake) |
| Brakes - Rear | Single disc | Expanding brake (drum brake) |
| Tyres - Front | - | 2.50-10 |
