Key Specifications
Engine
Single cylinder, two-stroke
Fuel Capacity
0.53 US gallons

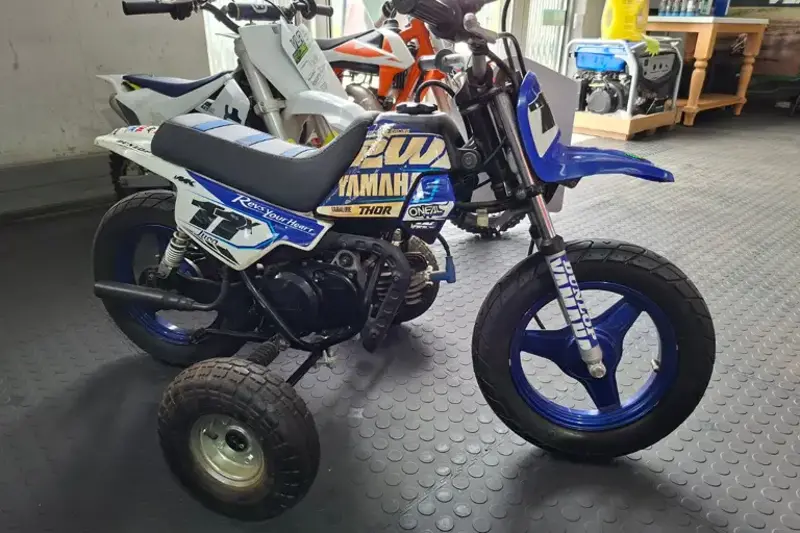

Full 2019 Yamaha PW50 Specifications
Colours
Team Yamaha Blue
Warranty
90 Day Limited Factory Warranty
Width (mm)
610 mm
Width (in.)
24.0 inches
Wheelbase (mm)
856 mm
Wheelbase (in.)
33.7 inches
Seat Height (mm)
485 mm
Seat Height (in.)
19.1 inches
Length (mm)
1245 mm
Length (in.)
49.0 inches
Height (mm)
706 mm
Ground Clearance (in.)
3.7 inches
Ground Clearance (mm)
94 mm
Height (in.)
27.8 inches
Wet Weight (lbs.)
90.0 pounds
Wet Weight (kg)
40.8 kg
Fuel Capacity (gal.)
0.53 US gallons
Fuel Capacity (l)
2.01 litres
Bore x Stroke (in,)
1.6 x 1.5 inches
Bore x Stroke (mm)
40.0 x 39.2 mm
Displacement (cc)
49.0 cc
Displacement (ci)
2.99 cubic inches
Engine Type
Single cylinder, two-stroke
Engine Detail
Reed-valve inducted
Fuel System
Carburettor. Mikuni VM12/1
Compression Ratio
6.0:1
Engine Lubrication
Autolube oil injection system
Ignition
CDI
Starter
Kick
Clutch
Wet centrifugal automatic clutch
Final Drive
Shaft drive (cardan) (final drive)
Gearbox
Automatic
Trail (in.)
2.0 inches
Trail (mm)
51 mm
Wheel Travel - Front (in.)
2.4 inches
Wheel Travel - Front (mm)
61 mm
Wheel Travel - Rear (in.)
2.0 inches
Wheel Travel - Rear (mm)
51 mm
Frame Type
Steel tube backbone
Suspension - Front
Telescopic fork
Suspension - Rear
Unit swingarm
Rake
25.5°
Brakes - Front
Expanding brake (drum brake)
Brakes - Rear
Expanding brake (drum brake)
Tyres - Front
2.50-10
