Key Specifications
Engine
Single cylinder, two-stroke
Fuel Capacity
0.92 US gallons

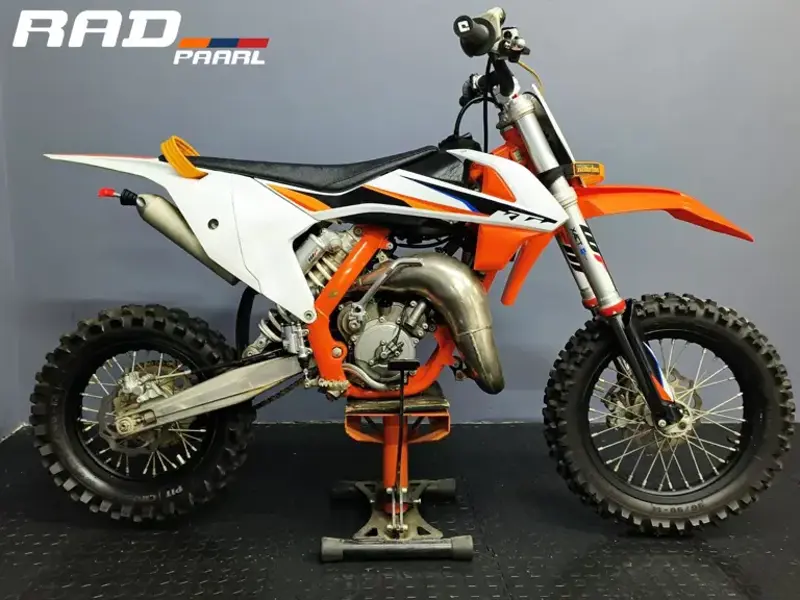

Full 2022 KTM 65 SX Specifications
Colours
Orange/white/black
Ground Clearance (in.)
11.0 inches
Ground Clearance (mm)
280 mm
Seat Height (in.)
29.5 inches
Seat Height (mm)
750 mm
Wheelbase (in.)
50.0 inches
Wheelbase (mm)
1270 mm
Dry Weight (kg)
53
Dry Weight (lbs.)
116.8 pounds
Fuel Capacity (gal.)
0.92 US gallons
Fuel Capacity (l)
3.50 litres
Bore x Stroke (in,)
1.8 x 1.6 inches
Bore x Stroke (mm)
45.0 x 40.8 mm
Displacement (cc)
64.9 cc
Displacement (ci)
3.96 cubic inches
Engine Type
Single cylinder, two-stroke
Fuel System
Carburettor
Engine Lubrication
Mixture oil lubrication
Ignition
AET digital
Starter
Kick
Clutch
Wet, multi-disc clutch, Formula hydraulics
Final Drive
Chain (final drive)
Gearbox
6-speed
Primary Drive
1/2 x 1/4´ chain
Wheel Travel - Front (in.)
8.5 inches
Wheel Travel - Front (mm)
215 mm
Wheel Travel - Rear (in.)
10.6 inches
Wheel Travel - Rear (mm)
270 mm
Frame Type
Central-tube frame with double-cradle
Suspension - Front
XACT 35 WP Upside-Down fork, Ø 35 mm
Suspension - Rear
XACT WP mono shock
Rake
25.5°
Brakes - Front
Single disc
Brakes - Rear
Single disc
