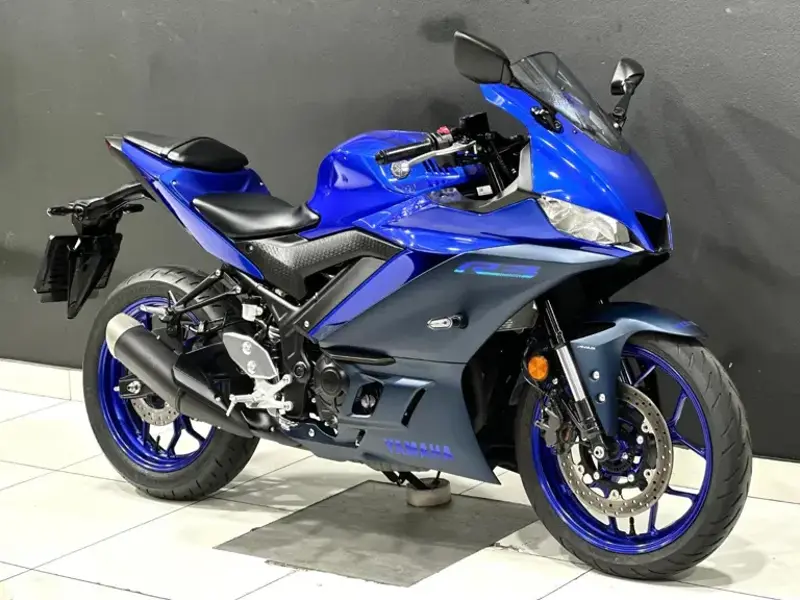

2023 Yamaha YZF-R 3 Overview
The 2023 Yamaha YZF-R 3 is a sport motorcycle built around 321 cc of displacement. Under the tank sits a Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder engine, a compression ratio of 11.2:1. 2023 Yamaha YZF-R 3 delivers 30.9 kW @ 10750 rpm of peak power and 29.6 Nm @ 9000 rpm of torque. From a practical standpoint, the 2023 YZF-R 3 tips the scales at 170 kg, carries a 14-litre fuel tank, offers a seat height of 780 mm and spans a 1379.2 mm wheelbase. That's roughly 32.7 kg lighter than the average sport motorcycle in our database. Scroll down for the complete 2023 Yamaha YZF-R 3 spec sheet covering every technical detail from suspension travel to tyre sizes.
2023 YZF-R 3 - Pros & Cons
Strengths
-
⚡
Strong power output: 2023 Yamaha YZF-R 3 makes 30.9 kW @ 10750 rpm with 29.6 Nm @ 9000 rpm of torque - competitive figures for its class.
-
🔧
Fuel injection: The fuel injection system delivers crisp throttle response and reliable cold starts regardless of altitude or temperature.
Considerations
-
⚙️
Chain final drive upkeep: Chain final drive needs regular cleaning, lubrication and tension checks to get full life out of the sprockets.
Wear Points & Servicing Notes
Cooling system servicing
The Liquid cooled system on the YZF-R 3 needs a coolant change roughly every two years (or per the service schedule) - skipping it lets the coolant turn acidic and corrode the aluminium water passages over time.
Fuelling & injector care
Fuelling comes from fuel injection. Systems like this are largely maintenance-free beyond keeping fuel quality decent and injectors clear - a fuel-system cleaner every service interval is cheap insurance.
Brake disc and pad wear
The Single 298mm disc 2 piston caliper front brake gives strong, progressive stopping power. Disc thickness and pad depth are worth checking at every tyre change, since worn pads can score the disc surface.
Suspension condition on used examples
Up front, the YZF-R 3 runs 37 mm USD Inverted telescopic fork and Monocross single Kayaba shock, adjustable preload at the rear. On a used example, check fork seals for weeping oil and test the rear linkage for play - seals are a relatively cheap fix but useful when negotiating price.
Final drive maintenance
Final drive is by chain - expect to clean and lube it every few hundred kilometres and check tension regularly; a neglected chain wears the sprockets faster than the chain itself.
Frame & chassis check
The frame is Delta box - worth a visual check for corrosion or impact damage around the head-stock and swingarm pivot on any used example, since frame damage is far costlier to fix than any service item.
YZF-R 3 - Buying & Maintenance Guide
What to check before buying
When inspecting a used 2023 Yamaha YZF-R 3, start with the basics: check the service book for oil change frequency, inspect the chain and sprockets for wear, and look for oil seepage around the engine casings and rocker covers. A cold start test is invaluable - a well-maintained YZF-R 3 should fire up cleanly and settle to a smooth idle within a few seconds.
Oil and filter changes
Regular oil changes are the single most important maintenance task on any YZF-R 3. Stick to the manufacturer's interval - typically every 6,000 km or once a year, whichever comes first. Always use the correct viscosity grade as specified in the owner's manual.
Fuel system care
The YZF-R 3's fuel injection system is durable but benefits from quality fuel and the occasional use of a fuel-system cleaner additive. If the bike has been stored for more than three months, drain and replace the fuel to prevent varnish deposits in the injectors.
2023 Yamaha YZF-R 3 - Frequently Asked Questions
What engine does the 2023 Yamaha YZF-R 3 have?
The 2023 Yamaha YZF-R 3 uses a Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder engine with 321 cc of displacement. It is liquid cooled.
How much does the 2023 Yamaha YZF-R 3 weigh?
The 2023 Yamaha YZF-R 3 weighs 170 kg. This is the manufacturer's wet figure.
How much power does the 2023 Yamaha YZF-R 3 make?
The 2023 Yamaha YZF-R 3 produces 30.9 kW @ 10750 rpm of power and 29.6 Nm @ 9000 rpm of torque. These are peak figures.
What is the fuel tank capacity of the 2023 Yamaha YZF-R 3?
The 2023 Yamaha YZF-R 3 has a 14-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 233-280 km between stops.
Is the 2023 Yamaha YZF-R 3 suitable for shorter riders?
The 2023 Yamaha YZF-R 3 has a seat height of 780 mm. This is a moderate seat height that suits a wide range of rider heights.
What brakes does the 2023 Yamaha YZF-R 3 have?
The 2023 Yamaha YZF-R 3 uses Single 298mm disc 2 piston caliper at the front and Single 220mm disc 1 piston caliper at the rear.
What tyre sizes does the 2023 Yamaha YZF-R 3 use?
The 2023 Yamaha YZF-R 3 runs 110/70-17M/C 54H front and 140/70-17M/C 66H rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.
What gearbox does the 2023 Yamaha YZF-R 3 have?
The 2023 Yamaha YZF-R 3 is fitted with a Constant Mesh, 6-speed transmission.
Yamaha YZF-R 3 Spec Evolution
The Yamaha YZF-R 3 was produced across 3 model years (2018-2023). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.
| Specification |
2018 |
2021 |
2023 |
| Max Power |
30.9 kW 41.4 hp @ 10750 rpm |
30.9 kW 41.4 hp @ 10750 rpm |
30.9 kW / 41.4 hp @ 10750 rpm |
| Wet Weight |
169 kg / 373 lbs |
170 kg / 374.7 lbs ABS |
170 kg / 374.7 lbs ABS |
| Seat Height |
779.7 mm / 30.7 in |
780 mm / 30.7 in |
780 mm / 30.7 in |
| Suspension - Front |
41mm KYBø telescopic fork |
37 mm USD Inverted telescopic fork |
37 mm USD Inverted telescopic fork |
| Suspension - Rear |
Adjustable KYB® single shock |
Monocross single Kayaba shock, adjustable preload |
Monocross single Kayaba shock, adjustable preload |
| Height |
1 135.3 mm / 44.7 in |
1140 mm / 44.9 in |
1140 mm / 44.9 in |
| Width |
718.8 mm / 28.3 in |
729 mm / 28.7 in |
729 mm / 28.7 in |
| Wheel Travel - Rear |
124.4 mm / 4.9 in |
125mm / 4.9 in |
125mm / 4.9 in |
Key Specifications
Engine
Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder
Power
30.9 kW / 41.4 hp @ 10750 rpm
Torque
29.6 Nm / 3.0 kg-m @ 9000 rpm
Top Speed
Not published by manufacturer
Weight
170 kg / 374.7 lbs ABS
Fuel Capacity
14 Litres / 3.7 US gal
Advertisement
Full 2023 Yamaha YZF-R 3 Specifications
Year
2023
Make Model
Yamaha YZF-R3
Seat Height
780 mm / 30.7 in
Wheelbase
1379.2 mm / 54.3 in
Ground Clearance
160 mm / 6.2 in
Height
1140 mm / 44.9 in
Length
2090 mm / 82.3 in
Width
729 mm / 28.7 in
Fuel Capacity
14 Litres / 3.7 US gal
Wet Weight
170 kg / 374.7 lbs ABS
Displacement
321 cc / 19.5 cu-in
Engine Detail
Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder
Bore x Stroke
68.0 x 44.1mm
Compression Ratio
11.2:1
Cooling System
Liquid cooled
Emissions
EURO5
Fuel Induction
Electronic Fuel Injection, 32 mm throttle body
Ignition
TCI: Transistor Controlled Ignition
Lubrication
Wet sump
Starter
Electric
Clutch
Wet, multiple-disc coil spring
Final Drive
O-ring chain
Transmission / Drive
Constant Mesh, 6-speed
Frame Type
Delta box
Suspension - Front
37 mm USD Inverted telescopic fork
Suspension - Rear
Monocross single Kayaba shock, adjustable preload
Rake
25°
Trail
93.9 mm / 3.7 in
Wheel Travel - Front
130 mm / 5.1 in
Wheel Travel - Rear
125mm / 4.9 in
Brakes - Front
Single 298mm disc 2 piston caliper
Brakes - Rear
Single 220mm disc 1 piston caliper
ABS
Standard
Tyres - Front
110/70-17M/C 54H
Tyres - Rear
140/70-17M/C 66H
Wheels
10-spoke cast aluminum wheels
Specifications are compiled from manufacturer documentation and cross-referenced
technical sources, and corrected on an ongoing basis.
