2006 Yamaha YZF 600 R6 Specifications

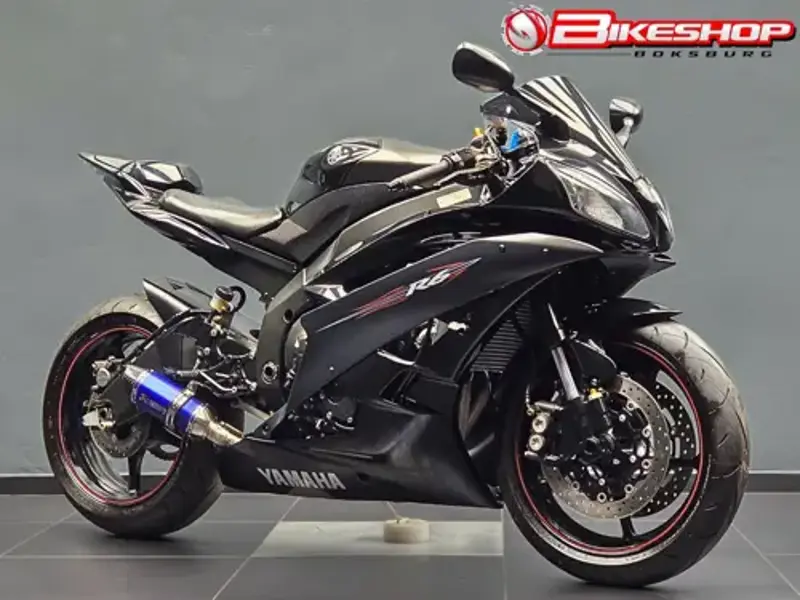

Name: 2006 Yamaha YZF 600 R6
Brand: Yamaha

Sport • Specs last verified 13 July 2026

No images available

Tap to enlarge

2006 Yamaha YZF 600 R6 Overview

For 2006, Yamaha offers the YZF 600 R6 as a sport motorcycle with 599 cc on tap. The 2006 Yamaha YZF 600 R6 is built around a Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder engine, a compression ratio of 12.8:1. Out on the road, the YZF 600 R6 delivers 125.3 hp @ @14500 rpm of peak power and 59.4 Nm @ 11500 rpm of torque. Flat out, it's quoted at 255.1 km/h. In everyday use, the 2006 YZF 600 R6 tips the scales at 162 kg, carries a 17-litre fuel tank and spans a 1380 mm wheelbase. That's roughly 40.7 kg lighter than the average sport motorcycle in our database. Every technical detail, from suspension travel to tyre sizes, is covered in the full 2006 Yamaha YZF 600 R6 spec sheet below.

2006 YZF 600 R6 - Pros & Cons

Strengths

Strong power output: Peak output on the YZF 600 R6 is 125.3 hp @ @14500 rpm and 59.4 Nm @ 11500 rpm of torque - strong numbers for what it is.
Fuel injection: No choke, no jetting, no altitude compensation to think about - fuel injection just works across a wider range of conditions than carburetion.

Considerations

Chain final drive upkeep: A chain drivetrain is the most common setup in its class, but it's also the one that demands the most regular hands-on maintenance.

Wear Points & Servicing Notes

Cooling system servicing

With Liquid cooled, thermal management is largely automatic, but the coolant has a service life of its own - replace it on the manufacturer's interval to protect the water passages and thermostat.

Fuelling & injector care

Fuelling on the YZF 600 R6 comes from fuel injectionwith YCCT (Yamaha Chip Controlled Throttle). Cold starts and throttle response stay consistent across altitude and temperature, the main practical edge over a carbureted equivalent.

Brake disc and pad wear

2x 310mm floating discs up front provides the primary stopping power; inspect disc thickness and pad wear at each tyre change to catch scoring before it becomes a rotor replacement.

Suspension condition on used examples

Suspension duties are handled by 41 mm inverted telescopic fork w/adjustable preload, separate high & low-speed compression damping, rebound damping up front and Fully adjustable rear shock absorber with 2-way compression damping at the rear. Weeping fork seals aren't a dealbreaker on a used bike, but they're a fair basis for negotiating price.

Final drive maintenance

Chain final drive on the YZF 600 R6 means routine lubing and tension checks are part of ownership - skip them and sprocket wear accelerates noticeably.

Frame & chassis check

The Deltabox aluminium frame with revised rigidity balance chassis holds up well with normal use; on a used bike it's still worth checking the head-stock and swingarm pivot area for impact damage or corrosion.

YZF 600 R6 - Buying & Maintenance Guide

What to check before buying

A pre-purchase check on the 2006 Yamaha YZF 600 R6 should cover the same ground every time: service history, chain and sprocket condition, and any oil seepage around the casings. Start it from cold if you can - a well-kept YZF 600 R6 settles to a smooth idle within seconds.

Oil and filter changes

Oil changes are the cheapest insurance you can buy for a YZF 600 R6's engine - keep to the manufacturer's interval rather than stretching it. Use the viscosity grade the manual specifies, not whatever's on sale.

Fuel system care

Injector systems like the YZF 600 R6's hold up well with basic care - decent fuel, an occasional cleaner additive, and draining old fuel before any layup longer than three months.

2006 Yamaha YZF 600 R6 - Frequently Asked Questions

What engine does the 2006 Yamaha YZF 600 R6 have?

The 2006 Yamaha YZF 600 R6 uses a Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder engine with 599 cc of displacement. It is liquid cooled.

What is the top speed of the 2006 Yamaha YZF 600 R6?

The 2006 Yamaha YZF 600 R6 has a factory-quoted top speed of 255.1 km/h. Real-world speeds vary depending on rider weight, conditions and state of tune.

How much does the 2006 Yamaha YZF 600 R6 weigh?

The 2006 Yamaha YZF 600 R6 weighs 162 kg. This is the manufacturer's dry figure.

How much power does the 2006 Yamaha YZF 600 R6 make?

The 2006 Yamaha YZF 600 R6 produces 125.3 hp @ @14500 rpm of power and 59.4 Nm @ 11500 rpm of torque. These are peak figures.

What is the fuel tank capacity of the 2006 Yamaha YZF 600 R6?

The 2006 Yamaha YZF 600 R6 has a 17-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 283-340 km between stops.

What brakes does the 2006 Yamaha YZF 600 R6 have?

The 2006 Yamaha YZF 600 R6 uses 2x 310mm floating discs at the front and Single 220mm disc at the rear.

What tyre sizes does the 2006 Yamaha YZF 600 R6 use?

The 2006 Yamaha YZF 600 R6 runs 120/70 ZR17 front and 180/55 ZR17 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

What gearbox does the 2006 Yamaha YZF 600 R6 have?

The 2006 Yamaha YZF 600 R6 is fitted with a 6 Speed transmission.

Yamaha YZF 600 R6 Spec Evolution

The Yamaha YZF 600 R6 was produced across 11 model years (2006-2020). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	2006	2007	2008	2010	2014	2015	2016	2017	2018	2019	2020
Max Power	125.3 hp / 93.4 kW @ @14500 rpm	125.3 hp / 93.4 kW @ @14500 rpm	94.9 kW / 129 hp @ 14500 rpm	94.9 kW / 129 hp @ 14500 rpm	94.9 kW / 129 hp @ 14500 rpm	123.7 hp / 91 kW @ 14500 rpm	94.9 kW / 129 hp @ 14500 rpm	87.1 kW / 116.7 hp @ 14500 rpm	87.1 kW / 116.7 hp @ 14500 rpm	87.1 kW / 116.7 hp @ 14500 rpm	87.1 kW / 116.7 hp @ 14500 rpm
Wet Weight	-	-	188 kg / 413.6 lb	189 kg / 415.8 lbs.	189 kg / 415.8 lbs.	189 kg / 415.8 lbs.	189 kg / 415.8 lbs.	190 kg / 419 lbs	190 kg / 419 lbs	190 kg / 419 lbs	190 kg / 419 lbs
Dry Weight	162 kg / 357 lbs (single seat 161 kg)	162 kg / 357 lbs (single seat 161 kg)	166 kg / 366 lbs	-	-	-	-	-	-	-	-
Engine Detail	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
Top Speed	255.1 km/h	255.1 km/h	256.9 km/h	256.9 km/h	256.9 km/h	256.9 km/h	256.9 km/h	-	-	-	-
Fuel Capacity	17 Litres / 4.5 gal	17 Litres / 4.5 gal	17 Litres / 4.5 US gal	17.5 Liters / 3.7 gal	17.5 Liters / 3.7 gal	17.5 Liters / 3.7 gal	17.5 Liters / 3.7 gal	17.5 Litres / 4.5 US gal	17.5 Litres / 4.5 US gal	17.5 Litres / 4.5 US gal	17.5 Litres / 4.5 US gal
Wheelbase	1380 mm / 53.4 in	1380 mm / 53.4 in	1380 mm / 54.3 in	1375 mm / 54.1 in	1375 mm / 54.1 in	1375 mm / 54.1 in	1375 mm / 54.1 in	1375 mm / 54.1 in	1375 mm / 54.1 in	1375 mm / 54.1 in	1375 mm / 54.1 in
Brakes - Front	2x 310mm floating discs	2x 310mm floating discs	2x 310mm discs 4 piston calipers	2x 310mm discs 4 piston calipers	2x 310mm discs 4 piston calipers	2x 310mm discs 4 piston calipers	2x 310mm discs 4 piston calipers	2x 320mm discs 4 piston calipers	2x 320mm discs 4 piston calipers	2x 320mm discs 4 piston calipers	2x 320mm discs 4 piston calipers

Key Specifications

Engine

Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder

Power

125.3 hp / 93.4 kW @ @14500 rpm

Torque

59.4 Nm / 43.8 lb-ft @ 11500 rpm

Top Speed

255.1 km/h

Weight

162 kg / 357 lbs (single seat 161 kg)

Fuel Capacity

17 Litres / 4.5 gal

Full 2006 Yamaha YZF 600 R6 Specifications

Year 2006

Make Model Yamaha YZF 600 R6

Wheelbase 1380 mm / 53.4 in

Ground Clearance 130 mm / 5.1 in

Height 1090 mm / 42.9 in

Length 2040 mm / 80.3 in

Width 700 mm / 27.6 in

Dry Weight 162 kg / 357 lbs (single seat 161 kg)

Fuel Capacity 17 Litres / 4.5 gal

Top Speed 255.1 km/h

Max Power 125.3 hp / 93.4 kW @ @14500 rpm

Max Torque 59.4 Nm / 43.8 lb-ft @ 11500 rpm

Standing Start ¼ Mile 11.1 sec

Displacement 599 cc / 36.5 cu-in

Engine Detail Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder

Bore x Stroke 67 x 42.5 mm

Compression Ratio 12.8:1

Cooling System Liquid cooled

Fuel Induction Fuel injection with YCCT (Yamaha Chip Controlled Throttle)

Ignition TCI (Transistor Controlled Ignition)

Lubrication Wet sump

Starter Electric

Clutch Back torque-limiting slipper clutch

Final Drive O-ring Chain

Transmission / Drive 6 Speed

Frame Type Deltabox aluminium frame with revised rigidity balance

Suspension - Front 41 mm inverted telescopic fork w/adjustable preload, separate high & low-speed compression damping, rebound damping

Suspension - Rear Fully adjustable rear shock absorber with 2-way compression damping

Trail 850 mm / 33.5 in

Wheel Travel - Front 120 mm / 4.7 in

Wheel Travel - Rear 120 mm / 4.7 in

Brakes - Front 2x 310mm floating discs

Brakes - Rear Single 220mm disc

Tyres - Front 120/70 ZR17

Tyres - Rear 180/55 ZR17

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
