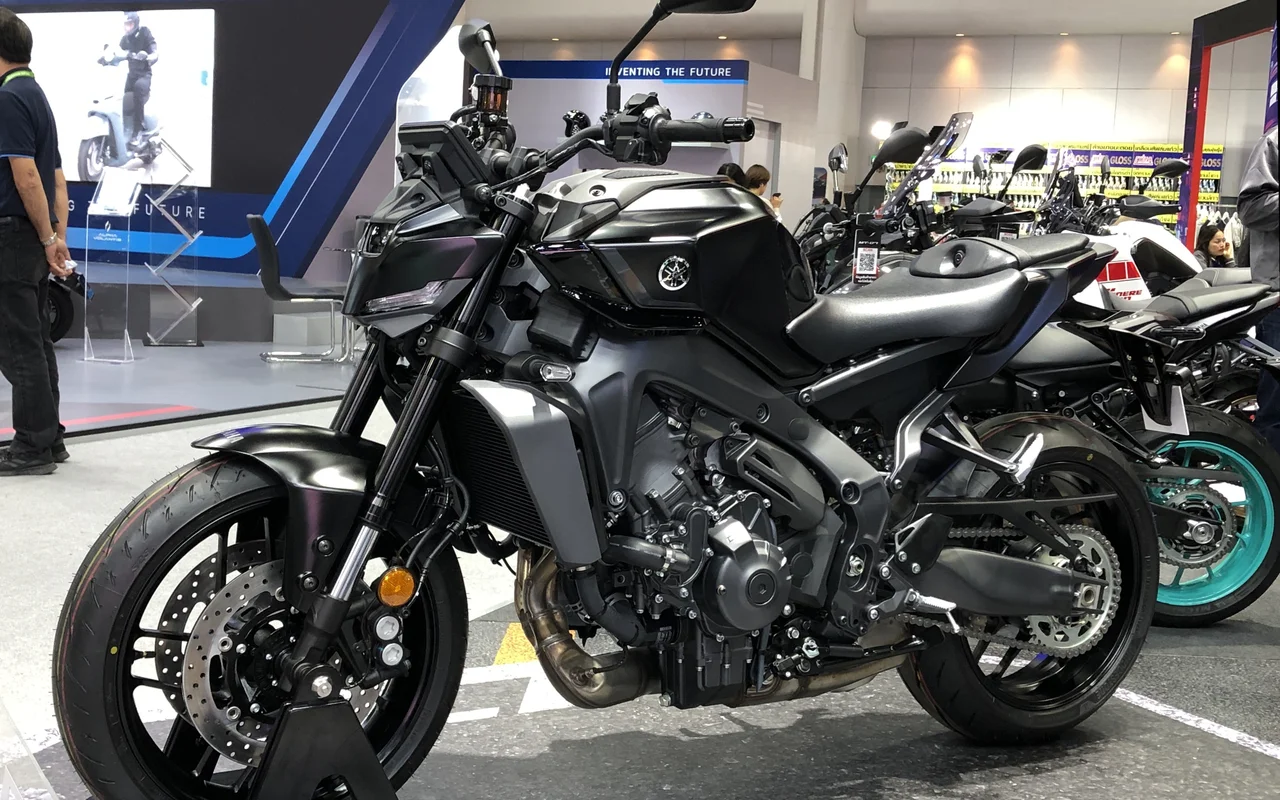

2024 Yamaha MT-09 Overview
The 2024 Yamaha MT-09 is a naked bike motorcycle built around 889 cc of displacement. Under the tank sits a Four stroke, transverse triple cylinder, DOHC, 4 valves per cylinder engine, a compression ratio of 11.5:1. 2024 Yamaha MT-09 delivers 117.4 hp @ 10000 rpm of peak power and 93 Nm @ 7000 rpm of torque. From a practical standpoint, the 2024 MT-09 tips the scales at 193 kg, carries a 14-litre fuel tank, offers a seat height of 825.5 mm and spans a 1430 mm wheelbase. That's roughly 12.9 kg lighter than the average naked bike motorcycle in our database. Scroll down for the complete 2024 Yamaha MT-09 spec sheet covering every technical detail from suspension travel to tyre sizes.
2024 MT-09 - Pros & Cons
Strengths
-
⚡
Strong power output: 2024 Yamaha MT-09 makes 117.4 hp @ 10000 rpm with 93 Nm @ 7000 rpm of torque - competitive figures for its class.
-
🔧
Fuel injection: The fuel injectionwith YCC-T system delivers crisp throttle response and reliable cold starts regardless of altitude or temperature.
Considerations
-
📏
Tall seat height: The 825.5 mm seat height will challenge shorter riders - tiptoeing at low speeds is something to factor into your decision.
-
⚙️
Chain final drive upkeep: Chain final drive needs regular cleaning, lubrication and tension checks to get full life out of the sprockets.
Wear Points & Servicing Notes
Cooling system servicing
The Liquid cooled system on the MT-09 needs a coolant change roughly every two years (or per the service schedule) - skipping it lets the coolant turn acidic and corrode the aluminium water passages over time.
Fuelling & injector care
Fuelling comes from fuel injectionwith YCC-T. Systems like this are largely maintenance-free beyond keeping fuel quality decent and injectors clear - a fuel-system cleaner every service interval is cheap insurance.
Brake disc and pad wear
The 2x 298mm hydraulic discs, 4-piston calipers front brake gives strong, progressive stopping power. Disc thickness and pad depth are worth checking at every tyre change, since worn pads can score the disc surface.
Suspension condition on used examples
Up front, the MT-09 runs 41mm KYB inverted fork, adjustable preload, compression and rebound and Linkage, fully adjustable horizontal shock at the rear. On a used example, check fork seals for weeping oil and test the rear linkage for play - seals are a relatively cheap fix but useful when negotiating price.
Final drive maintenance
Final drive is by chain - expect to clean and lube it every few hundred kilometres and check tension regularly; a neglected chain wears the sprockets faster than the chain itself.
Frame & chassis check
The frame is Controlled-fill die-cast aluminum with sub frame - worth a visual check for corrosion or impact damage around the head-stock and swingarm pivot on any used example, since frame damage is far costlier to fix than any service item.
MT-09 - Buying & Maintenance Guide
What to check before buying
When inspecting a used 2024 Yamaha MT-09, start with the basics: check the service book for oil change frequency, inspect the chain and sprockets for wear, and look for oil seepage around the engine casings and rocker covers. A cold start test is invaluable - a well-maintained MT-09 should fire up cleanly and settle to a smooth idle within a few seconds.
Oil and filter changes
Regular oil changes are the single most important maintenance task on any MT-09. Stick to the manufacturer's interval - typically every 6,000 km or once a year, whichever comes first. Always use the correct viscosity grade as specified in the owner's manual.
Fuel system care
The MT-09's fuel injection system is durable but benefits from quality fuel and the occasional use of a fuel-system cleaner additive. If the bike has been stored for more than three months, drain and replace the fuel to prevent varnish deposits in the injectors.
2024 Yamaha MT-09 - Frequently Asked Questions
What engine does the 2024 Yamaha MT-09 have?
The 2024 Yamaha MT-09 uses a Four stroke, transverse triple cylinder, DOHC, 4 valves per cylinder engine with 889 cc of displacement. It is liquid cooled.
How much does the 2024 Yamaha MT-09 weigh?
The 2024 Yamaha MT-09 weighs 193 kg. This is the manufacturer's wet figure.
How much power does the 2024 Yamaha MT-09 make?
The 2024 Yamaha MT-09 produces 117.4 hp @ 10000 rpm of power and 93 Nm @ 7000 rpm of torque. These are peak figures.
What is the fuel tank capacity of the 2024 Yamaha MT-09?
The 2024 Yamaha MT-09 has a 14-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 233-280 km between stops.
Is the 2024 Yamaha MT-09 suitable for shorter riders?
The 2024 Yamaha MT-09 has a seat height of 825.5 mm. This is towards the tall end of the spectrum and will require most riders under 175 cm to tiptoe at stops.
What brakes does the 2024 Yamaha MT-09 have?
The 2024 Yamaha MT-09 uses 2x 298mm hydraulic discs, 4-piston calipers at the front and Single 245mm hydraulic disc, single piston caliper at the rear.
What tyre sizes does the 2024 Yamaha MT-09 use?
The 2024 Yamaha MT-09 runs 120/70 ZR17 M/C front and 180/55 ZR17 M/C rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.
What gearbox does the 2024 Yamaha MT-09 have?
The 2024 Yamaha MT-09 is fitted with a 6 Speed transmission.
Yamaha MT-09 Spec Evolution
The Yamaha MT-09 was produced across 5 model years (2018-2024). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.
| Specification |
2018 |
2019 |
2020 |
2021 |
2024 |
| Max Power |
84.6 kW / 115 hp @ 10,000 rpm |
84.6 kW / 115 hp @ 10,000 rpm |
84.6 kW / 115 hp @ 10,000 rpm |
117.4 hp / 119PS / 87.5 kW @ 10000 rpm |
117.4 hp / 119PS / 87.5 kW @ 10000 rpm |
| Wet Weight |
188 kg / 414 lbs - ABS 191 kg / 421 lbs |
188 kg / 414 lbs - ABS 191 kg / 421 lbs |
188 kg / 414 lbs - ABS 191 kg / 421 lbs |
189 kg / 417 lbs |
193 kg / 425 lbs |
| Engine Detail |
Four stroke, transverse triple cylinder, DOHC, 4 valve per cylinder |
Four stroke, transverse triple cylinder, DOHC, 4 valve per cylinder |
Four stroke, transverse triple cylinder, DOHC, 4 valve per cylinder |
Four stroke, transverse triple cylinder, DOHC, 4 valves per cylinder |
Four stroke, transverse triple cylinder, DOHC, 4 valves per cylinder |
| Seat Height |
815 mm / 32.1 in |
815 mm / 32.1 in |
815 mm / 32.1 in |
825.5 mm / 32.5 in |
825.5 mm / 32.5 in |
| Frame Type |
Diamond frame |
Diamond frame |
Diamond frame |
Diamond frame |
Controlled-fill die-cast aluminum with sub frame |
| Displacement |
847 cc / 51.6 cu-in |
847 cc / 51.6 cu-in |
847 cc / 51.6 cu-in |
889 cc / 54.2 cu-in |
889 cc / 54.2 cu-in |
| Wheelbase |
1440 mm / 56.7 in |
1440 mm / 56.7 in |
1440 mm / 56.7 in |
1430 mm / 56.3 in |
1430 mm / 56.3 in |
| Brakes - Front |
2x 298mm discs |
2x 298mm discs |
2x 298mm discs |
2x 298mm hydraulic discs, 4-piston calipers |
2x 298mm hydraulic discs, 4-piston calipers |
Key Specifications
Engine
Four stroke, transverse triple cylinder, DOHC, 4 valves per cylinder
Power
117.4 hp / 119PS / 87.5 kW @ 10000 rpm
Torque
93 Nm / 68.6lb-ft @ 7000 rpm
Top Speed
Not published by manufacturer
Fuel Capacity
14 Litres / 3.7 US gal
Advertisement
Full 2024 Yamaha MT-09 Specifications
Year
2024
Make Model
Yamaha MT-09
Seat Height
825.5 mm / 32.5 in
Wheelbase
1430 mm / 56.3 in
Ground Clearance
140 mm / 5.5 in
Height
1145 mm / 45.1 in
Length
1145 mm / 45.1 in
Width
820 mm / 32.3 in
Fuel Capacity
14 Litres / 3.7 US gal
Wet Weight
193 kg / 425 lbs
Displacement
889 cc / 54.2 cu-in
Engine Detail
Four stroke, transverse triple cylinder, DOHC, 4 valves per cylinder
Bore x Stroke
78 x 62.1 mm
Compression Ratio
11.5:1
Cooling System
Liquid cooled
Fuel Induction
Fuel injection with YCC-T
Ignition
TCI: Transistor Controlled Ignition
Lubrication
Wet sump
Starter
Electric
Clutch
Multiplate assist and slipper clutch
Final Drive
O-ring chain
Transmission / Drive
6 Speed
Frame Type
Controlled-fill die-cast aluminum with sub frame
Suspension - Front
41mm KYB inverted fork, adjustable preload, compression and rebound
Suspension - Rear
Linkage, fully adjustable horizontal shock
Rake
24.4°
Trail
108 mm / 4.3 in
Wheel Travel - Front
130 mm / 5.1 in
Wheel Travel - Rear
117 mm / 4.6 in
Brakes - Front
2x 298mm hydraulic discs, 4-piston calipers
Brakes - Rear
Single 245mm hydraulic disc, single piston caliper
ABS
Standard
Tyres - Front
120/70 ZR17 M/C
Tyres - Rear
180/55 ZR17 M/C
Specifications are compiled from manufacturer documentation and cross-referenced
technical sources, and corrected on an ongoing basis.
