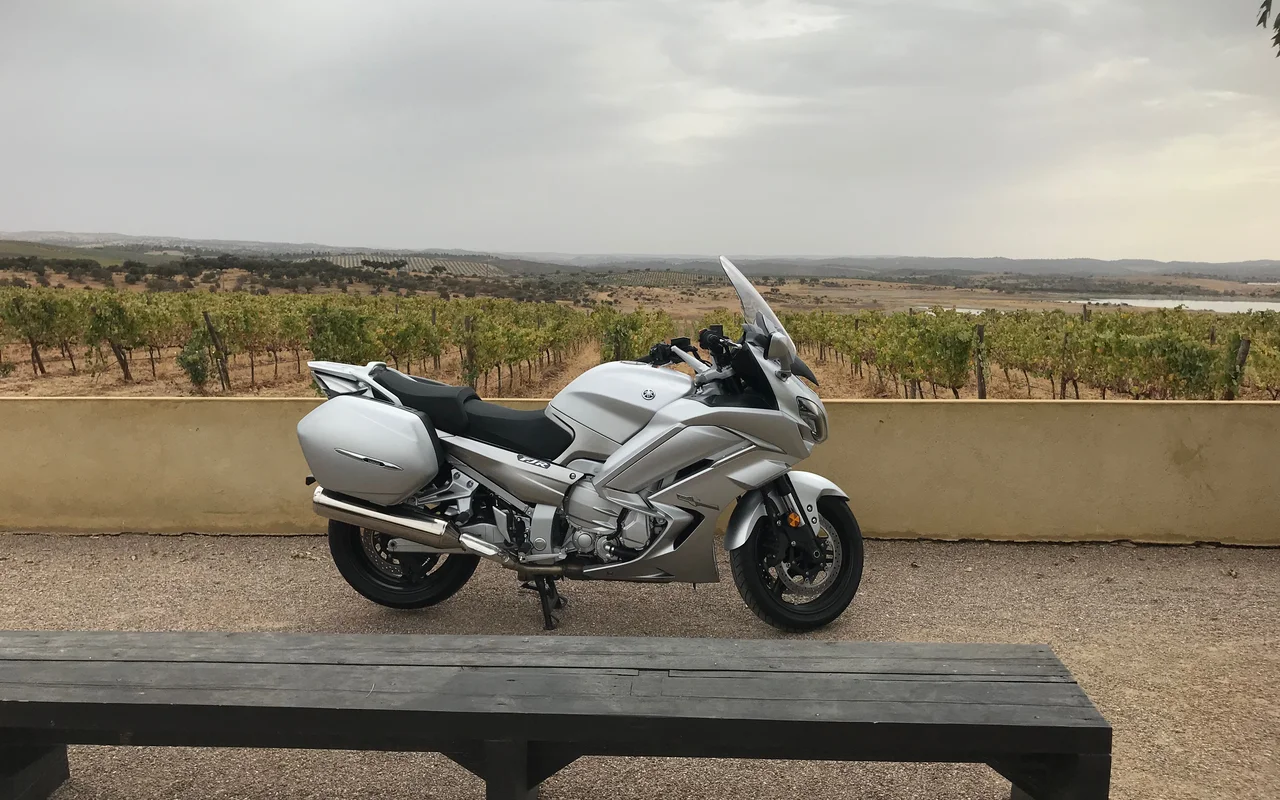

Yamaha FJR1300AE Specs

2017 • 1 variants

The Yamaha FJR1300AE is a sport tourer produced from 2017 across 1 variant. It is powered by a forward-inclined parallel cylinder displacing 1298.0 cc. Peak torque is 138 Nm.

About the Yamaha FJR1300AE

As a Sport touring motorcycle, the Yamaha FJR1300AE was offered from the 2007 through to the 2022 model year. The technical data presented here covers the complete specification range for this model, including all engine variants, chassis dimensions, suspension travel, brake specifications, and weight figures. This information is useful for prospective buyers, current owners, and mechanics working on the Yamaha FJR1300AE.

Yamaha FJR1300AE by Year

2017 Yamaha FJR1300AE View specs →

Spec Evolution

How key specs changed across production years.

Specification	2007	2008	2009	2010	2015	2016	2017	2018	2019	2020	2021	2022
Oil Capacity (Quarts)	-	-	-	-	0.32 quarts	0.32 quarts	0.32 quarts	0.32 quarts	5.18 US quarts ↑	5.18 US quarts	5.18 US quarts	5.18 US quarts
Ground Clearance (mm)	135 mm	135 mm	135 mm	135 mm	130 mm ↓	130 mm	130 mm	130 mm	125 mm ↓	125 mm	125 mm	125 mm
Ground Clearance (in.)	5.3 inches	5.3 inches	5.3 inches	5.3 inches	5.1 inches ↓	5.1 inches	5.1 inches	5.1 inches	4.9 inches ↓	4.9 inches	4.9 inches	4.9 inches
Fuel Control	DOHC	DOHC	DOHC	DOHC	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)
Engine Type	In-line four	In-line four, four-stroke	In-line four	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke
Displacement (cc)	1298.00 cc	1298.00 cc	1298.00 cc	1298.00 cc	1298.00 cc	1298.00 cc	1298.00 cc	1298.00 cc	1298.0 cc	1298.0 cc	1298.0 cc	1298.0 cc
Comments	-	-	-	-	Windshield. Heated grips. Electronically adjustable suspension system.	Windshield. Heated grips. Electronically adjustable suspension system.	Windshield. Heated grips. Electronically adjustable suspension system.	Windshield. Heated grips. Electronically adjustable suspension system. Traction control. Cruise control systems.	-	-	-	Windscreen. Electronically adjusted suspension. Traction control. Cruise control.
CO2	-	-	-	139.9 CO	151.5 CO2 g/km. (CO2 - Carbon dioxide emission) ↑	151.5 CO2 g/km. (CO2 - Carbon dioxide emission)	151.5 CO2 g/km. (CO2 - Carbon dioxide emission)	151.5 CO2 g/km. (CO2 - Carbon dioxide emission)	143.8 CO2 g/km. (CO2 - Carbon dioxide emission) ↓	143.8 CO2 g/km. (CO2 - Carbon dioxide emission)	143.8 CO2 g/km. (CO2 - Carbon dioxide emission)	143.8 CO2 g/km. (CO2 - Carbon dioxide emission)
Seat Height	800 mm / 31.5 in.	800 mm / 31.5 in.	805 mm / 31.7 in. ↑	805 mm / 31.7 in.	805 mm / 31.7 in.	805 mm / 31.7 in.	805 mm / 31.7 in.	805 mm / 31.7 in.	805 mm / 31.7 in.	805 mm / 31.7 in.	805 mm / 31.7 in.	805 mm / 31.7 in.
Wheelbase	1,539 mm / 60.6 in.	1,539 mm / 60.6 in.	1,544 mm / 60.8 in.	1,544 mm / 60.8 in.	1,544 mm / 60.8 in.	1,544 mm / 60.8 in.	1,544 mm / 60.8 in.	1,544 mm / 60.8 in.	1545 mm / 60.8 in. ↑	1545 mm / 60.8 in.	1545 mm / 60.8 in.	1545 mm / 60.8 in.
Brakes - Front	Double disc	Double disc	Double disc	Double disc. ABS	Double disc	Double disc	Double disc	Double disc	Double disc	Double disc. ABS. Hydraulic.	Double disc. ABS. Hydraulic.	Double disc. ABS. Hydraulic.
Brakes - Rear	Single disc	Single disc	Single disc	Single disc. ABS	Single disc	Single disc	Single disc	Single disc	Single disc	Single disc. ABS. Hydraulic.	Single disc. ABS. Hydraulic.	Single disc. ABS. Hydraulic.
Fuel Capacity	24.98 litres / 6.60 gallons	24.98 litres / 6.60 gallons	24.98 litres / 6.60 gallons	24.98 litres / 6.60 gallons	24.98 litres / 6.60 gallons	24.98 litres / 6.60 gallons	24.98 litres / 6.60 gallons	24.98 litres / 6.60 gallons	25.00 litres / 6.61 US gallons ↑	25.00 litres / 6.61 US gallons	25.00 litres / 6.61 US gallons	25.00 litres / 6.61 US gallons
Suspension - Front	48mm Soqi telescopic fork w/adjustable preload, compression and rebound damping	48mm fork	48mm fork	48mm fork	Upside-down telescopic fork, ? 48 mm	Upside-down telescopic fork, ? 48 mm	Upside-down telescopic fork, ? 48 mm	Upside-down telescopic fork, ? 48 mm	Upside-down telescopic fork, Ø 48 mm	Telescopic fork	Telescopic fork	Telescopic fork
Suspension - Rear	Single shock, link-type, w/adjustable preload and rebound damping	Single shock	Single shock	Single shock	Linked monoshock with spring preload adjustment	Linked monoshock with spring preload adjustment	Linked monoshock with spring preload adjustment	Linked monoshock with spring preload adjustment	Linked monoshock with spring preload adjustment	Swingarm	Swingarm	Swingarm
Colours	-	Granite grey	Metallic Titanium/Liquid Silver	Metallic Titanium/Liquid Silver	Tech Graphite, Magnetic Bronze	Tech Graphite, Matt Silver	Graphite, Silver	Graphite, Silver, Blue	Tech Graphite, Phantom Blue	Gun Metal	Midnight Black	Tech Graphite
Clutch	-	-	-	Yamaha Chip-Controlled Shift (YCC-S)	-	Assist and slipper clutch	Assist and slipper clutch	Assist and slipper clutch	Assist and slipper clutch	Assist and slipper clutch	Assist and slipper clutch	Assist and slipper clutch
Final Drive	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan) (final drive)	Shaft drive (cardan) (final drive)	Shaft drive (cardan) (final drive)	Shaft drive (cardan) (final drive)
Height	1,331 mm / 52.4 in.	1,331 mm / 52.4 in.	1,331 mm / 52.4 in.	1,331 mm / 52.4 in.	1,455 mm / 57.3 in. ↑	1,455 mm / 57.3 in.	1,455 mm / 57.3 in.	1,455 mm / 57.3 in.	1455 mm / 57.3 in. ↑	1455 mm / 57.3 in.	1455 mm / 57.3 in.	1455 mm / 57.3 in.
Length	2,240 mm / 88.2 in.	2,240 mm / 88.2 in.	2,240 mm / 88.2 in.	2,240 mm / 88.2 in.	2,230 mm / 87.8 in. ↓	2,230 mm / 87.8 in.	2,230 mm / 87.8 in.	2,230 mm / 87.8 in.	2230 mm / 87.8 in. ↑	2230 mm / 87.8 in.	2230 mm / 87.8 in.	2230 mm / 87.8 in.
Wet Weight	-	-	294.8 kg / 650.0 lbs	294.8 kg / 650.0 lbs	292.0 kg / 643.7 lbs ↓	292.0 kg / 643.7 lbs	292.0 kg / 643.7 lbs	292.0 kg / 643.7 lbs	292.0 kg / 643.7 lbs	292.0 kg / 643.7 lbs	292.0 kg / 643.7 lbs	292.0 kg / 643.7 lbs
Gearbox	5-speed	5-speed	5-speed	5-speed	5-speed	6-speed ↑	6-speed	6-speed	6-speed	6-speed	6-speed	6-speed
Width	744 mm / 29.3 in.	744 mm / 29.3 in.	744 mm / 29.3 in.	744 mm / 29.3 in.	749 mm / 29.5 in. ↑	749 mm / 29.5 in.	749 mm / 29.5 in.	749 mm / 29.5 in.	750 mm / 29.5 in. ↑	750 mm / 29.5 in.	750 mm / 29.5 in.	750 mm / 29.5 in.
Rake	26.0°	26.0°	26.0°	26.0°	26.0°	26.0°	26.0°	26.0°	26.0°	26.0°	26.0°	26.0°
Lighting system	-	-	-	-	-	Front and rear LED lights	Front LED lights with adaptive cornering lights	Front LED lights with adaptive cornering lights	Front LED lights with adaptive cornering lights	Front LED lights with adaptive cornering lights	Front LED lights with adaptive cornering lights	LED headlights with adaptive cornering lights
Fuel Consumption	-	-	-	6.03 litres/100 km (16.6 km/l or 39.01 mpg)	6.53 litres/100 km (15.3 km/l or 36.02 mpg) ↑	6.53 litres/100 km (15.3 km/l or 36.02 mpg)	6.53 litres/100 km (15.3 km/l or 36.02 mpg)	6.53 litres/100 km (15.3 km/l or 36.02 mpg)	6.20 litres/100 km (16.1 km/l or 37.94 mpg) ↓	6.20 litres/100 km (16.1 km/l or 37.94 mpg)	6.20 litres/100 km (16.1 km/l or 37.94 mpg)	6.20 litres/100 km (16.1 km/l or 37.94 mpg)
Wheel Travel - Front	137 mm / 5.4 in.	137 mm / 5.4 in.	137 mm / 5.4 in.	137 mm / 5.4 in.	135 mm / 5.3 in. ↓	135 mm / 5.3 in.	135 mm / 5.3 in.	135 mm / 5.3 in.	135 mm / 5.3 in.	135 mm / 5.3 in.	135 mm / 5.3 in.	135 mm / 5.3 in.
Wheel Travel - Rear	122 mm / 4.8 in.	122 mm / 4.8 in.	122 mm / 4.8 in.	122 mm / 4.8 in.	124 mm / 4.9 in. ↑	124 mm / 4.9 in.	124 mm / 4.9 in.	124 mm / 4.9 in.	124 mm / 4.9 in.	125 mm / 4.9 in. ↑	125 mm / 4.9 in.	125 mm / 4.9 in.
Ignition	Digital TCI	TCI	TCI: Transistor Controlled Ignition	TCI: Transistor Controlled Ignition	TCI: Transistor Controlled Ignition	TCI: Transistor Controlled Ignition	TCI	TCI	TCI	TCI	TCI	TCI
Max Torque	-	-	-	-	138.00 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 7000 Revolutions	138.00 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 7000 Revolutions	138.00 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 7000 Revolutions	138.00 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 7000 Revolutions	138.0 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 7000 Revolutions	138.0 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 7000 Revolutions	138.0 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 7000 Revolutions	138.0 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 7000 Revolutions
