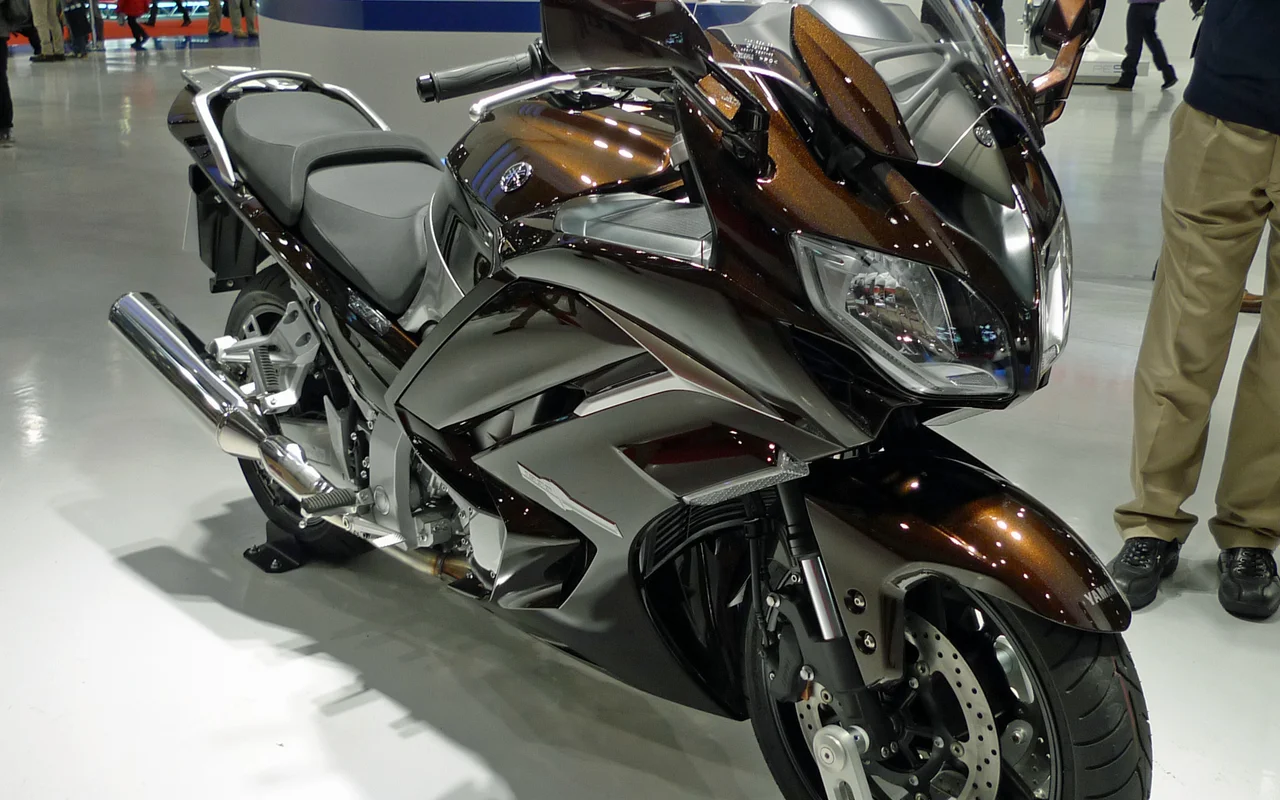

Yamaha FJR 1300A Specs

2013 • 1 variants

First introduced in 2013, the Yamaha FJR 1300A is a sport tourer that has seen 1 variant. The engine is a four stroke, transverse four cylinder, DOHC, 4 valves per cylinder. at 1298.0 cc. Peak output is rated at 145 hp. It delivers 125 Nm of torque.

About the Yamaha FJR 1300A

Documented here are the full technical specifications for the Yamaha FJR 1300A, a Sport touring motorcycle with a production run from 2004 to 2020. Specification data includes engine type and displacement, maximum power and torque output, transmission details, frame construction, suspension travel front and rear, brake types and rotor dimensions, tyre sizes, and overall weight and dimension figures. Select a year above to view the complete spec sheet for that model year.

Yamaha FJR 1300A by Year

2013 Yamaha FJR 1300A View specs →

Spec Evolution

How key specs changed across production years.

Specification	2004	2006	2007	2008	2009	2010	2011	2012	2013	2014	2015	2016	2017	2018	2019	2020
CO2	-	-	-	-	-	139.9 CO	139.9 CO	139.9 CO	151.5 CO ↑	151.5 CO	151.5 CO2 g/km. (CO2 - Carbon dioxide emission)	151.5 CO2 g/km. (CO2 - Carbon dioxide emission)	151.5 CO2 g/km. (CO2 - Carbon dioxide emission)	151.5 CO2 g/km. (CO2 - Carbon dioxide emission)	151.5 CO2 g/km. (CO2 - Carbon dioxide emission)	151.5 CO2 g/km. (CO2 - Carbon dioxide emission)
Displacement (cc)	1298.00 cc	-	-	-	-	1298.00 cc	1298.00 cc	1298.00 cc	-	1298.00 cc	-	-	1298.00 cc	-	-	1298.0 cc
Engine Type	In-line four	In-line four	In-line four	In-line four	In-line four	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke	In-line four, four-stroke
Fuel Control	DOHC	DOHC	DOHC	DOHC	DOHC	DOHC	DOHC	DOHC	DOHC	DOHC	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)	Double Overhead Cams/Twin Cam (DOHC)
Ground Clearance (in.)	5.3 inches	5.3 inches	5.3 inches	5.3 inches	-	-	5.1 inches	5.1 inches	5.1 inches	5.1 inches	5.1 inches	5.1 inches	5.1 inches	5.1 inches	5.1 inches	5.1 inches
Ground Clearance (mm)	135 mm	135 mm	135 mm	135 mm	-	-	130 mm	130 mm	130 mm	130 mm	130 mm	130 mm	130 mm	130 mm	130 mm	130 mm
Storage	-	-	-	-	-	-	-	-	-	Boot for integral helmet	Saddle bags	Saddle bags	Saddle bags	Saddle bags	Saddle bags	Saddle bags
Comments	-	-	-	-	-	-	-	-	Windshield	Windshield. Heated grips.	Windshield. Heated grips.	Windshield. Heated grips.	Windshield. Heated grips.	Windshield. Heated grips.	Windshield. Heated grips.	-
Mods from previous model	-	-	-	For 2008, the FJR1300A gets a new ABS system, new scratch-resistant hard windshield coating, a new windshield bracket design and new grips.	-	-	Heated grips	-	-	-	-	-	-	-	-	-
Frame Type	-	Aluminium, twin spar	Aluminium, twin spar	Aluminium, twin spar	Aluminium, twin spar	-	-	-	Aluminium, twin spar	-	-	-	Aluminium, Diamond Shaped	Aluminium, Diamond Shaped	Aluminium, diamond shaped	Aluminium, Diamond Shaped
Seat Height	805 mm / 31.7 in.	805 mm - 825.5 mm / 31.7 in - 32.5 in.	805 mm - 825.5 mm / 31.7 in - 32.5 in.	805 mm - 825.5 mm / 31.7 in - 32.5 in.	805 mm - 825.5 mm / 31.7 in - 32.5 in.	805 mm / 31.7 in.	805 mm / 31.7 in.	805 mm / 31.7 in.	805 mm - 825.5 mm / 31.7 in - 32.5 in.	805 mm / 31.7 in.	805 mm / 31.7 in.	805 mm / 31.7 in.	805 mm / 31.7 in.	805 mm / 31.7 in.	805 mm - 825.5 mm / 31.7 in - 32.5 in.	805 mm / 31.7 in.
Displacement	-	1298 cc / 79.2 cu-in cc / 79.2 cu-in	1298 cc / 79.2 cu-in	1298 cc / 79.2 cu-in	1298 cc / 79.2 cu-in	-	-	-	1298 cc / 79.2 cu-in	-	-	-	-	-	1298 cc / 79.2 cu-in	-
Dry Weight	251 kg / 553.4 lbs	264 kg / 582 lbs ↑	264 kg / 582 lbs	264 kg / 582 lbs	264 kg / 582 lbs	-	230 kg / 507.0 lbs	-	264 kg / 582 lbs	59 kg / 130.1 lbs ↓	-	-	-	-	-	-
Brakes - Front	Double disc	2x 320mm discs 4 piston calipers	2x 320mm discs 4 piston calipers	2x 320mm discs 4 piston calipers	2x 320mm discs 4 piston calipers	Double disc	Double disc	Double disc. UBS ABS	2x 320mm discs 4 piston calipers	Double disc. ABS.	Double disc. ABS.	Double disc. Unified Brake System and ABS	Double disc. Unified Brake System and ABS	Double disc. Unified Brake System and ABS	2 x 320mm discs, 4 piston calipers, unified brake system, ABS	Double disc. Unified Brake System and ABS
Wheelbase	1,515 mm / 59.6 in.	1544.3 mm / 60.8 in ↑	1544.3 mm / 60.8 in	1544.3 mm / 60.8 in	1544.3 mm / 60.8 in	1,544 mm / 60.8 in. ↓	1,544 mm / 60.8 in.	1,544 mm / 60.8 in.	1544.3 mm / 60.8 in ↑	1,544 mm / 60.8 in. ↓	1,544 mm / 60.8 in.	1,544 mm / 60.8 in.	1,544 mm / 60.8 in.	1,544 mm / 60.8 in.	1544.3 mm / 60.8 in ↑	1544 mm / 60.8 in. ↓
Engine Detail	-	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.	-	-	-	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.	Brushless in rear wheel hub	-	-	-	-	Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.	-
Fuel Capacity	-	25 Liters / 6.6 US gal	25 Liters / 6.6 US gal	25 Liters / 6.6 US gal	25 Liters / 6.6 US gal	24.98 litres / 6.60 gallons ↓	24.98 litres / 6.60 gallons	24.98 litres / 6.60 gallons	25 Liters / 6.6 US gal ↑	24.98 litres / 6.60 gallons ↓	24.98 litres / 6.60 gallons	24.98 litres / 6.60 gallons	24.98 litres / 6.60 gallons	24.98 litres / 6.60 gallons	25 Litres / 6.6 US gal ↑	24.98 litres / 6.60 US gallons ↓
Brakes - Rear	Single disc	Single 283mm disc 2 piston caliper	Single 283mm disc 2 piston caliper	Single 283mm disc 2 piston caliper	Single 283mm disc 2 piston caliper	Single disc	Single disc	Single disc. UBS ABS	Single 283mm disc 2 piston caliper	Single disc. ABS.	Single disc. ABS.	Single disc. Unified Brake System and ABS	Single disc. Unified Brake System and ABS	Single disc. Unified Brake System and ABS	Single 282 mm disc, 2 piston caliper, unified brake system, ABS	Single disc. Unified Brake System and ABS
Ground Clearance	-	130 mm / 5.1 in.	130 mm / 5.1 in.	130 mm / 5.1 in.	130 mm / 5.1 in.	-	-	-	130 mm / 5.1 in.	-	-	-	-	-	130 mm / 5.1 in.	-
Suspension - Front	Telescopic fork, 48mm tubes	48mm upside-down telescopic fork w/adjustable preload, compression and rebound damping	48mm upside-down telescopic fork w/adjustable preload, compression and rebound damping	48mm upside-down telescopic fork w/adjustable preload, compression and rebound damping;	48mm upside-down telescopic fork w/adjustable preload, compression and rebound damping	48mm fork	48mm fork	48mm fork; fully adjustable, 5.3-in travel	48mm upside-down telescopic fork w/adjustable preload, compression and rebound damping;	48mm fork	48mm fork	48mm fork	48mm fork	48mm fork, fully adjustable	48mm Upside-down telescopic fork with adjustable preload, compression and rebound damping (AE/AS/ES: Suspension electronically adjustable)	48mm fork, fully adjustable
Suspension - Rear	Link-type swingarm	Single shock, link-type, w/adjustable preload and rebound damping	Single shock, link-type, w/adjustable preload and rebound damping	Single shock, link-type, w/adjustable preload and rebound damping;	Single shock, link-type, w/adjustable preload and rebound damping	Single shock	Single shock	Single shock; adjustable preload and rebound damping, 4.9-in travel	Single shock, link-type, w/adjustable preload and rebound damping;	Single shock, adjustable preload and rebound damping,	Single shock, adjustable preload and rebound damping, 4.9-in travel	Single shock, adjustable preload and rebound damping, 4.9-in travel	Single shock, adjustable preload and rebound damping, 4.9-in travel	Single shock, adjustable preload and rebound damping, 4.9-in travel	Single shock, link-type, with adjustable preload and rebound damping (AE/AS/ES: Suspension electronically adjustable)	Single shock, adjustable preload and rebound damping, 4.9-in travel
Top Speed	-	244.9 km/h / 152.1 mph	244.9 km/h / 152.1 mph	244.9 km/h / 152.1 mph	244.9 km/h / 152.1 mph	-	-	-	244.9 km/h / 152.1 mph	120.0 km/h / 74.6 mph ↓	-	-	-	-	-	-
Fuel System	Injection	Injection. Electronic fuel injection	Injection	Injection	Injection	Injection	Injection	Injection	Injection	Injection	Injection	Injection	Injection	Injection	Injection	Injection
Colours	Silver storm, Galaxy blue	-	-	Raven	Raven	Liquid Silver	Liquid Silver	Cobalt Blue	Stone Gray	Candy Red	Liquid Graphite	Cobalt Blue	Graphite, Silver	Matte Phantom Blue	Liquid Graphite	Liquid Graphite
Clutch	-	Wet, multiple discs, cable operated	Wet, multiple discs, cable operated	Wet, multiple discs, cable operated	Wet, multiple discs, cable operated	-	Multiplate wet clutch	Wet, multiplate	Wet, multiple discs, hydraulic operated	No clutch	-	-	-	Multiplate assist-and-slipper wet clutch	Wet, multiple discs, hydraulic operated A/ES: Assist -and-Slipper clutch AS: Electronic clutch-less gearshift system	Multiplate assist-and-slipper wet clutch
Final Drive	Shaft drive (cardan)	Shaft	Shaft	Shaft	Shaft	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan)	Shaft	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan)	Shaft drive (cardan)	Shaft	Shaft drive (cardan) (final drive)
Height	1,435 mm / 56.5 in.	1455 mm / 57.3 in. ↑	1455 mm / 57.3 in.	1455 mm / 57.3 in.	1455 mm / 57.3 in.	1,331 mm / 52.4 in. ↓	1,450 mm / 57.1 in. ↑	1,450 mm / 57.1 in.	1455 mm / 57.3 in. ↑	1,326 mm / 52.2 in. ↓	1,326 mm / 52.2 in.	1,326 mm / 52.2 in.	1,326 mm / 52.2 in.	1,326 mm / 52.2 in.	1455 mm / 57.3 in. ↑	1455 mm / 57.3 in.
Length	2,195 mm / 86.4 in.	2230 mm / 87.8 in. ↑	2230 mm / 87.8 in.	2230 mm / 87.8 in.	2230 mm / 87.8 in.	2,240 mm / 88.2 in. ↓	2,230 mm / 87.8 in. ↓	2,230 mm / 87.8 in.	2230 mm / 87.8 in. ↑	2,230 mm / 87.8 in. ↓	2,230 mm / 87.8 in.	2,230 mm / 87.8 in.	2,230 mm / 87.8 in.	2,230 mm / 87.8 in.	2230 mm / 87.8 in. ↑	2230 mm / 87.8 in.
Wet Weight	-	292 kg / 644 lbs	292 kg / 644 lbs	292 kg / 644 lbs	292 kg / 644 lbs	290.8 kg / 641.0 lbs ↓	292.1 kg / 644.0 lbs ↑	292.1 kg / 644.0 lbs	292 kg / 644 lbs ↓	288.9 kg / 637.0 lbs ↓	288.9 kg / 637.0 lbs	288.9 kg / 637.0 lbs	288.9 kg / 637.0 lbs	288.9 kg / 637.0 lbs	A: 288 kg / 635 lbs AE/ ES: 292 kg / 644 lbs AS: 296 kg / 653 lbs ↓	288.0 kg / 635.0 lbs
Emissions	-	-	-	-	-	-	3-way catalytic	-	-	No direct emission	-	-	-	-	-	-
Tyres - Front	120/70-ZR17	120/70 ZR17	120/70 ZR17	120/70 ZR17	120/70 ZR17	120/70-ZR17	120/70-ZR17	120/70-ZR17	120/70 ZR17	120/70-ZR17	120/70-ZR17	120/70-ZR17	120/70-ZR17	120/70-ZR17	120/70 ZR17	120/70-ZR17
Gearbox	-	5-speed	5-speed	5-speed	5-speed	5-speed	5-speed	5-speed	5-speed	5-speed	5-speed	6-speed ↑	6-speed	6-speed	6-speed	6-speed
Width	760 mm / 29.9 in.	749.3 mm / 29.5 in. ↓	749.3 mm / 29.5 in.	749.3 mm / 29.5 in.	749.3 mm / 29.5 in.	744 mm / 29.3 in. ↓	749 mm / 29.5 in. ↑	749 mm / 29.5 in.	749.3 mm / 29.5 in. ↑	749 mm / 29.5 in. ↓	749 mm / 29.5 in.	749 mm / 29.5 in.	749 mm / 29.5 in.	749 mm / 29.5 in.	749.3 mm / 29.5 in. ↑	749 mm / 29.5 in. ↓
Tyres - Rear	180/55-ZR17	180/55 ZR17	180/55 ZR17	180/55 ZR17	180/55 ZR17	180/55-ZR17	180/55-ZR17	180/55-ZR17	180/55 ZR17	130/60-13 ↓	180/55-ZR17 ↑	180/55-ZR17	180/55-ZR17	180/55-ZR17	180/55 ZR17	-
Primary Drive	-	-	-	-	-	-	2WD; Yamaha Ultramatic® V-Belt / Forward, Neut.,Rev.	Yamaha On-Command pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive ↑	-	-	-	-	-	-	-	-
Rake	-	26.0°	26.0°	26.0°	26.0°	26.0°	26.0°	26.0°	26.0°	26.0°	26.0°	26.0°	26.0°	26.0°	26.0°	26.0°
Instrumentation	-	-	-	-	-	-	-	Speedometer, odometer and fuel gauge	-	Analog meter on the left, a digital speedometer in the center, and a multi-dot display on the right..	Analog meter on the left, a digital speedometer in the center, and a multi-dot display on the right..	Analog meter on the left, a digital speedometer in the center, and a multi-dot display on the right..	Analog meter on the left, a digital speedometer in the center, and a multi-dot display on the right..	Analog meter on the left, a digital speedometer in the center, and a multi-dot display on the right..	Analog meter on the left, a digital speedometer in the center, and a multi-dot display on the right..	Analog meter on the left, a digital speedometer in the center, and a multi-dot display on the right..
Lighting system	-	-	-	-	-	-	Dual 30W Krypton Multi-reflector Headlights and 21/5W Brake light	Dual 30W Krypton multireflector headlights and 21/5W brakelight	-	LED lights	-	LED headlight system and LED tail light	LED headlight system and LED tail light	LED headlight system and LED tail light	LED headlight system and LED tail light	LED headlight system and LED tail light
Seat	-	-	-	-	-	-	-	-	2-person seat	2 people seat	-	-	-	-	-	-
Fuel Consumption	-	-	-	-	-	6.03 litres/100 km (16.6 km/l or 39.01 mpg)	6.03 litres/100 km (16.6 km/l or 39.01 mpg)	6.03 litres/100 km (16.6 km/l or 39.01 mpg)	6.53 litres/100 km (15.3 km/l or 36.02 mpg) ↑	6.53 litres/100 km (15.3 km/l or 36.02 mpg)	6.53 litres/100 km (15.3 km/l or 36.02 mpg)	6.53 litres/100 km (15.3 km/l or 36.02 mpg)	6.53 litres/100 km (15.3 km/l or 36.02 mpg)	6.53 litres/100 km (15.3 km/l or 36.02 mpg)	6.5 L/100 km / 15.3 km/l / 36 US mpg ↓	6.53 litres/100 km (15.3 km/l or 36.02 mpg) ↑
Transmission / Drive	-	5 Speed	5 Speed	5 Speed	5 Speed	-	-	-	5 Speed	-	-	-	-	-	6 Speed	-
Fuel Induction	-	Electronic Fuel Injection	Electronic Fuel Injection	Electronic Fuel Injection	Electronic Fuel Injection	-	-	-	Electronic Fuel Injection	-	-	-	-	-	Yamaha Electronic Fuel Injection with YCC-T	-
Trail	-	102 mm / 4.3 in.	102 mm / 4.3 in.	102 mm / 4.3 in.	102 mm / 4.3 in.	109 mm / 4.3 in. ↑	109 mm / 4.3 in.	109 mm / 4.3 in.	102 mm / 4.3 in. ↓	109 mm / 4.3 in. ↑	109 mm / 4.3 in.	109 mm / 4.3 in.	109 mm / 4.3 in.	109 mm / 4.3 in.	109 mm / 4.3 in.	109 mm / 4.3 in.
Wheel Travel - Front	135 mm / 5.3 in.	137 mm / 5.3 in ↑	137 mm / 5.3 in	137 mm / 5.3 in	137 mm / 5.3 in	137 mm / 5.4 in.	135 mm / 5.3 in. ↓	135 mm / 5.3 in.	137 mm / 5.3 in ↑	135 mm / 5.3 in. ↓	135 mm / 5.3 in.	135 mm / 5.3 in.	135 mm / 5.3 in.	135 mm / 5.3 in.	135 mm / 5.3 in	135 mm / 5.3 in.
Max Power	-	145 hp / 105.7 kW @ 8500 rpm	145 hp / 105.7 kW @ 8500 rpm	145 hp / 105.7 kW @ 8500 rpm	145 hp / 105.7 kW @ 8500 rpm	-	-	-	145 hp / 105.7 kW @ 8500 rpm	-	-	-	-	-	105.7 kW / 146.2 hp @ 8000 rpm	-
Wheel Travel - Rear	125 mm / 4.9 in.	129 mm / 4.9 in ↑	129 mm / 4.9 in	129 mm / 4.9 in	129 mm / 4.9 in	122 mm / 4.8 in. ↓	124 mm / 4.9 in. ↑	193 mm / 7.6 in. ↑	129 mm / 4.9 in ↓	124 mm / 4.9 in. ↓	124 mm / 4.9 in.	124 mm / 4.9 in.	124 mm / 4.9 in.	124 mm / 4.9 in.	124 mm / 4.9 in	124 mm / 4.9 in.
Ignition	-	TCI (Transistor Controlled Ignition)	TCI (Transistor Controlled Ignition)	TCI (Transistor Controlled Ignition)	TCI (Transistor Controlled Ignition)	TCI: Transistor Controlled Ignition	TCI: Transistor Controlled Ignition	TCI: Transistor Controlled Ignition	TCI (Transistor Controlled Ignition)	TCI: Transistor Controlled Ignition	TCI: Transistor Controlled Ignition	TCI: Transistor Controlled Ignition	TCI: Transistor Controlled Ignition	TCI: Transistor Controlled Ignition	TCI: Transistor Controlled Ignition	TCI: Transistor Controlled Ignition
Max Torque	134.40	125 Nm / 13.7kgf-m @ 6000 rpm ↓	125 Nm / 13.7kgf-m @ 6000 rpm	125 Nm / 13.7kgf-m @ 6000 rpm	125 Nm / 13.7kgf-m @ 6000 rpm	-	134.00 Nm (13.7 kgf-m or 98.8 ft.lbs) @ 7000	-	125 Nm / 13.7kgf-m @ 6000 rpm	-	-	138.00 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 7000 Revolutions	138.00 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 7000 Revolutions	138.00 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 7000 Revolutions	138 Nm / 14,1kgf-m / 101.8 lb-ft @ 7000 rpm	138.0 Nm (14.1 kgf-m or 101.8 ft.lbs) @ 7000 Revolutions
Power-to-Weight Ratio	0.5636 HP/kg	0.5359 HP/kg ↓	-	-	-	-	-	-	0.1143 HP/kg	0.1819 HP/kg ↑	-	-	-	-	-	-
