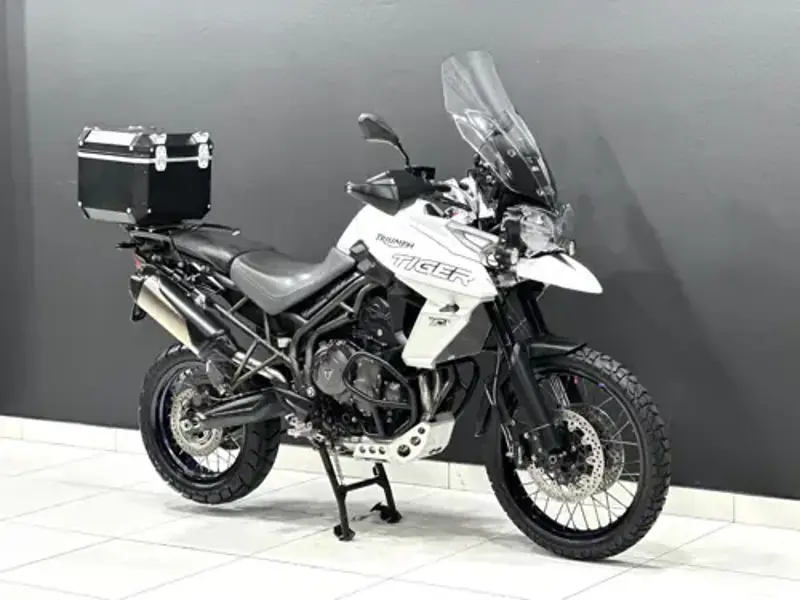

2018 Triumph Tiger 800 XCa Overview
Triumph Tiger 800 XCa is an enduro / off-road motorcycle, displacing 799 cc. Power comes from a Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder engine, a compression ratio of 11.3:1. On the performance side, it delivers 70.8 KW @ 9250 rpm of peak power and 79 Nm @ 7850 rpm of torque. On the road, the 2018 Tiger 800 XCa tips the scales at 215 kg, carries a 19-litre fuel tank, offers a seat height of 845 mm - 865 mm and spans a 1545 mm wheelbase. That's roughly 16.2 kg heavier than the average enduro / off-road motorcycle in our database. The full 2018 Triumph Tiger 800 XCa spec sheet below covers every technical detail, from suspension travel to tyre sizes.
2018 Tiger 800 XCa - Pros & Cons
Strengths
-
⚡
Strong power output: With 70.8 KW @ 9250 rpm and 79 Nm @ 7850 rpm of torque on tap, the Tiger 800 XCa is no slouch for its class.
-
🔧
Fuel injection: Fuel injection means consistent cold starts and clean throttle response without the fussiness of a carbureted setup.
-
⛽
Large fuel range: A 19-litre tank means fewer stops on longer rides - a genuine plus for touring or a lengthy daily commute.
Considerations
-
📏
Tall seat height: At 845 mm - 865 mm, shorter riders will likely be on tiptoes at a standstill - worth sitting on one before you buy.
-
⚙️
Chain final drive upkeep: Budget time for routine chain maintenance - it's cheap to replace but needs consistent attention to avoid premature sprocket wear.
Wear Points & Servicing Notes
Cooling system servicing
Tiger 800 XCa's Liquid cooled setup is low-maintenance provided the coolant interval is kept - old, acidic coolant is the main cause of long-term corrosion in the water passages.
Fuelling & injector care
The Multipoint sequential electronic fuel injection on the Tiger 800 XCa needs little beyond good fuel and periodic use of an injector-cleaner additive - no jetting or float-bowl maintenance to worry about.
Brake disc and pad wear
Braking up front comes from 2 x 308 mm floating discs, Nissin 2-piston sliding calipers, switchable ABS - solid stopping power, with disc and pad wear best checked on the same schedule as tyre changes.
Suspension condition on used examples
The Tiger 800 XCa's suspension runs WP 43mm upside down forks, adjustable rebound and compression at the front. The rear uses WP monoshock with remote oil reservoir, hudraulically adjustable preload, rebound. Fork-seal condition and rear linkage play are the two things worth checking before buying used.
Final drive maintenance
The Tiger 800 XCa uses chain final drive, which is cheap to replace but needs regular cleaning, lubrication and tension checks to get a full service life out of the sprockets.
Frame & chassis check
Built around a Tubular steel trellis frame, swingarm: twin-sided, cast aluminum alloy, the Tiger 800 XCa's chassis is straightforward to inspect: look for corrosion, cracks or repair welds around stress points like the head-stock and swingarm mounts.
Tiger 800 XCa - Buying & Maintenance Guide
What to check before buying
Before handing over money for a used 2018 Triumph Tiger 800 XCa, cover the fundamentals: service book and oil change history, chain and sprocket wear, and any sign of oil weeping around the casings. Cold-starting it yourself tells you a lot - a healthy Tiger 800 XCa should catch quickly and settle into a smooth idle.
Oil and filter changes
Nothing protects a Tiger 800 XCa's engine like disciplined oil changes - stay on the manufacturer's schedule (roughly every 6,000 km or annually). Match the viscosity grade to what the owner's manual specifies, not what's cheapest.
Fuel system care
Fuel injection on the Tiger 800 XCa needs little attention beyond decent fuel and an occasional system-cleaner additive. Anything left standing for three months or more should have its fuel drained and replaced before it varnishes the injectors.
2018 Triumph Tiger 800 XCa - Frequently Asked Questions
What engine does the 2018 Triumph Tiger 800 XCa have?
The 2018 Triumph Tiger 800 XCa uses a Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder. engine with 799 cc of displacement. It is liquid cooled.
How much does the 2018 Triumph Tiger 800 XCa weigh?
The 2018 Triumph Tiger 800 XCa weighs 215 kg. This is the manufacturer's dry figure.
How much power does the 2018 Triumph Tiger 800 XCa make?
The 2018 Triumph Tiger 800 XCa produces 70.8 KW @ 9250 rpm of power and 79 Nm @ 7850 rpm of torque. These are peak figures.
What is the fuel tank capacity of the 2018 Triumph Tiger 800 XCa?
The 2018 Triumph Tiger 800 XCa has a 19-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 316-380 km between stops.
Is the 2018 Triumph Tiger 800 XCa suitable for shorter riders?
The 2018 Triumph Tiger 800 XCa has a seat height of 845 mm - 865 mm. This is towards the tall end of the spectrum and will require most riders under 175 cm to tiptoe at stops.
What brakes does the 2018 Triumph Tiger 800 XCa have?
The 2018 Triumph Tiger 800 XCa uses 2 x 308 mm floating discs, Nissin 2-piston sliding calipers, switchable ABS at the front and Single 255 mm disc, Nissin single-piston sliding caliper, Switchable ABS at the rear.
What tyre sizes does the 2018 Triumph Tiger 800 XCa use?
The 2018 Triumph Tiger 800 XCa runs 90/90 R21 front and 150/70 R17 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.
What gearbox does the 2018 Triumph Tiger 800 XCa have?
The 2018 Triumph Tiger 800 XCa is fitted with a 6 Speed transmission.
Triumph Tiger 800 XCa Spec Evolution
The Triumph Tiger 800 XCa was produced across 3 model years (2016-2019). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.
| Specification |
2016 |
2018 |
2019 |
| Dry Weight |
203 kg / 478 lbs |
215 kg / 474 lbs |
215 kg / 474 lbs |
Key Specifications
Engine
Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder.
Power
70.8 KW / 95 hp @ 9250 rpm
Torque
79 Nm / 8.1 kgf-m / 58 ft.lb @ 7850 rpm
Top Speed
Not published by manufacturer
Fuel Capacity
19 Litres / 5.0 US gal / 4.2 Imp gal
Advertisement
Full 2018 Triumph Tiger 800 XCa Specifications
Year
2017 - 18
Make Model
Triumph Tiger 800 XCa
Seat Height
845 mm - 865 mm / 33.3 in- 34.1 in adjustable
Wheelbase
1545 mm / 60.8 in
Height
1390 mm / 54.7 in (without mirrors)
Length
2215 mm / 87.1in
Width
845 mm / 33.3 in (with handlebars)
Dry Weight
215 kg / 474 lbs
Fuel Capacity
19 Litres / 5.0 US gal / 4.2 Imp gal
Oil Capacity
3.7 L / 0.98 US gal
Displacement
799 cc / 48.7 cub in
Engine Detail
Four stroke, transverse three cylinder, DOHC, 4 valve per cylinder.
Bore x Stroke
74 x 61.9 mm
Compression Ratio
11.3:1
Cooling System
Liquid cooled
Exhaust
Stainless Steel, 3 into 1, high-level stainless steel silencer
Fuel Induction
Multipoint sequential electronic fuel injection
Ignition
Digital CDI
Lubrication
Wet sump
Starter
Electric
Clutch
Wet, multi-plate
Final Drive
Chain, O-ring
Transmission / Drive
6 Speed
Frame Type
Tubular steel trellis frame, swingarm: twin-sided, cast aluminum alloy
Suspension - Front
WP 43mm upside down forks, adjustable rebound and compression
Suspension - Rear
WP monoshock with remote oil reservoir, hudraulically adjustable preload, rebound
Rake
24.3°
Trail
95.3 mm / 3.75 in
Wheel Travel - Front
220 mm / 8.7 in
Wheel Travel - Rear
215 mm / 8.5 in
Brakes - Front
2 x 308 mm floating discs, Nissin 2-piston sliding calipers, switchable ABS
Brakes - Rear
Single 255 mm disc, Nissin single-piston sliding caliper, Switchable ABS
Tyres - Front
90/90 R21
Tyres - Rear
150/70 R17
Wheels - Front
36-Spoke 21 x 2.5 in, aluminium rim
Wheels - Rear
32-Spoke 17 x 4.25 in, aluminium rim
Specifications are compiled from manufacturer documentation and cross-referenced
technical sources, and corrected on an ongoing basis.
