Key Specifications
Engine
Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder.
Power
91.7 kW / 123 hp @ 9400 rpm
Torque
104.3 Nm / 10.63 kgf-m / 77 ft-lb @ 430 rpm
Fuel Capacity
20 Litres / 5.3 US gal / 4.4 Imp gal
Advertisement

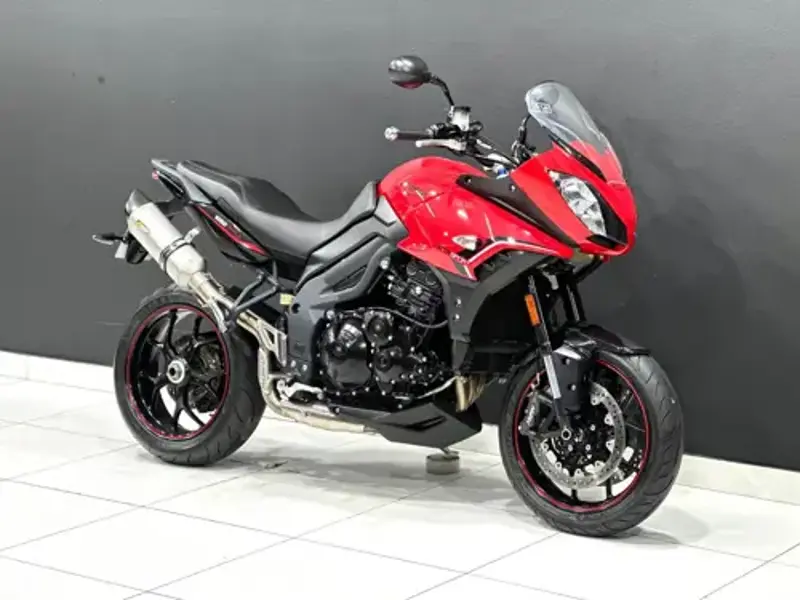

Full 2014 Triumph Tiger 1050 Sport Specifications
Year
2014
Make Model
Triumph Tiger 1050 Sport
Seat Height
830mm / 32.7in
Wheelbase
1540mm / 60.6in
Height
without mirrors 1310 mm / 51.5 in
Length
2150 mm / 84.6 in
Width
(handlebars) 835 mm / 32.8 in
Fuel Capacity
20 Litres / 5.3 US gal / 4.4 Imp gal
Oil Capacity
3.5 Litres/ 0.9 US gals / 0.77 Imp gal
Wet Weight
235kg / 517 lbs
Displacement
1050 cc / 64.1 cu in
Engine Detail
Four stroke, transverse three cylinder, DOHC, 4 valves per cylinder.
Bore x Stroke
79 x 71.4mm
Compression Ratio
12.0:1
Cooling System
Liquid cooled
Engine Oil Specification
Synthetic, 10W/40
Exhaust
Stainless Steel 3 into 1, high level brushed stainless steel silencer
Fuel Induction
Multipoint sequential electronic fuel injection
Ignition
Digital
Lubrication
Wet sump
Spark Plug
NGK, DPR8EA-9
Starter
Electric
Clutch
Wet, multi-plate
Final Drive
X ring chain
Transmission / Drive
6 Speed
Frame Type
Aluminum beam perimeter, swingarm: braced, single-sided, aluminum alloy
Suspension - Front
43mm Showa upside down forks with adjustable preload, rebound and compression damping adjustment
Suspension - Rear
Showa Mono-shock with adjustable preload and rebound damping,
Rake
22.8°
Trail
89.7mm / 3.5 in
Wheel Travel - Front
140 mm / 5.5 in
Wheel Travel - Rear
150 mm / 5.9 in
Instrumentation
LCD multi-functional instrument pack
Brakes - Front
2x 320 mm Discs, 4 piston calipers
Brakes - Rear
Single 255 mm disc, 2 piston caliper
Tyres - Front
120/70 ZR17
Tyres - Rear
180/55 ZR17
Wheels - Front
Cast aluminium alloy, 17 x 3.5in
Wheels - Rear
Cast aluminium alloy, 17 x 5.5in
