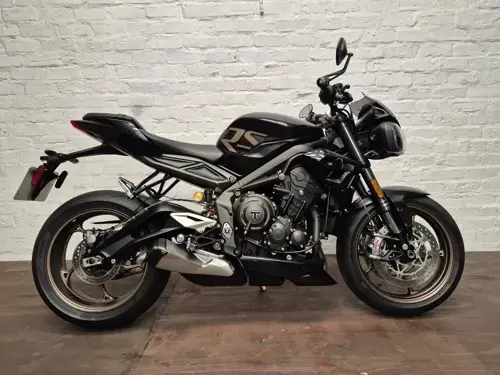

2023 Triumph Street Triple RS Specifications

Name: 2023 Triumph Street Triple RS
Brand: Triumph

Sport • Specs last verified 13 July 2026

No images available

Tap to enlarge

2023 Triumph Street Triple RS Overview

The 2023 Triumph Street Triple RS is a sport motorcycle built around 765 cc of displacement. Under the tank sits a Four stroke, In-line 3-cylinder, DOHC, 4 valve per cylinder engine, a compression ratio of 13.25:1. 2023 Triumph Street Triple RS delivers 128.2 hp @ 12000 rpm of peak power and 80 Nm @ 9500 rpm of torque. From a practical standpoint, the 2023 Street Triple RS tips the scales at 188 kg, carries a 15-litre fuel tank, offers a seat height of 836 mm and spans a 1399 mm wheelbase. That's roughly 14.7 kg lighter than the average sport motorcycle in our database. Scroll down for the complete 2023 Triumph Street Triple RS spec sheet covering every technical detail from suspension travel to tyre sizes.

2023 Street Triple RS - Pros & Cons

Strengths

Strong power output: 2023 Triumph Street Triple RS makes 128.2 hp @ 12000 rpm with 80 Nm @ 9500 rpm of torque - competitive figures for its class.
Fuel injection: The Multipoint sequential electronic fuel injection with electronic throttle control system delivers crisp throttle response and reliable cold starts regardless of altitude or temperature.

Considerations

Tall seat height: The 836 mm seat height will challenge shorter riders - tiptoeing at low speeds is something to factor into your decision.
Chain final drive upkeep: Chain final drive needs regular cleaning, lubrication and tension checks to get full life out of the sprockets.

Wear Points & Servicing Notes

Cooling system servicing

The Liquid-cooled system on the Street Triple RS needs a coolant change roughly every two years (or per the service schedule) - skipping it lets the coolant turn acidic and corrode the aluminium water passages over time.

Fuelling & injector care

Fuelling comes from Multipoint sequential electronic fuel injection with electronic throttle control. Systems like this are largely maintenance-free beyond keeping fuel quality decent and injectors clear - a fuel-system cleaner every service interval is cheap insurance.

Brake disc and pad wear

The 2 x 310 mm floating discs, Brembo Stylema 4-piston radial monobloc calipers, OC-ABS, Brembo MCS radial master cylinder front brake gives strong, progressive stopping power. Disc thickness and pad depth are worth checking at every tyre change, since worn pads can score the disc surface.

Suspension condition on used examples

Up front, the Street Triple RS runs Showa 41 mm upside down Big Piston Forks and Öhlins STX40 piggyback reservoir monoshock, adjustable compression and rebound damping, and preload adjustment at the rear. On a used example, check fork seals for weeping oil and test the rear linkage for play - seals are a relatively cheap fix but useful when negotiating price.

Final drive maintenance

Final drive is by chain - expect to clean and lube it every few hundred kilometres and check tension regularly; a neglected chain wears the sprockets faster than the chain itself.

Frame & chassis check

The frame is Aluminium beam twin spar frame with 2 piece high pressure die cast rear subframe - worth a visual check for corrosion or impact damage around the head-stock and swingarm pivot on any used example, since frame damage is far costlier to fix than any service item.

Street Triple RS - Buying & Maintenance Guide

What to check before buying

When inspecting a used 2023 Triumph Street Triple RS, start with the basics: check the service book for oil change frequency, inspect the chain and sprockets for wear, and look for oil seepage around the engine casings and rocker covers. A cold start test is invaluable - a well-maintained Street Triple RS should fire up cleanly and settle to a smooth idle within a few seconds.

Oil and filter changes

Regular oil changes are the single most important maintenance task on any Street Triple RS. Stick to the manufacturer's interval - typically every 6,000 km or once a year, whichever comes first. Always use the correct viscosity grade as specified in the owner's manual.

Fuel system care

The Street Triple RS's fuel injection system is durable but benefits from quality fuel and the occasional use of a fuel-system cleaner additive. If the bike has been stored for more than three months, drain and replace the fuel to prevent varnish deposits in the injectors.

2023 Triumph Street Triple RS - Frequently Asked Questions

What engine does the 2023 Triumph Street Triple RS have?

The 2023 Triumph Street Triple RS uses a Four stroke, In-line 3-cylinder, DOHC, 4 valve per cylinder engine with 765 cc of displacement. It is liquid-cooled.

How much does the 2023 Triumph Street Triple RS weigh?

The 2023 Triumph Street Triple RS weighs 188 kg. This is the manufacturer's wet figure.

How much power does the 2023 Triumph Street Triple RS make?

The 2023 Triumph Street Triple RS produces 128.2 hp @ 12000 rpm of power and 80 Nm @ 9500 rpm of torque. These are peak figures.

What is the fuel tank capacity of the 2023 Triumph Street Triple RS?

The 2023 Triumph Street Triple RS has a 15-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 250-300 km between stops.

Is the 2023 Triumph Street Triple RS suitable for shorter riders?

The 2023 Triumph Street Triple RS has a seat height of 836 mm. This is towards the tall end of the spectrum and will require most riders under 175 cm to tiptoe at stops.

What brakes does the 2023 Triumph Street Triple RS have?

The 2023 Triumph Street Triple RS uses 2 x 310 mm floating discs, Brembo Stylema 4-piston radial monobloc calipers, OC-ABS, Brembo MCS radial master cylinder at the front and Single 220mm disc, Brembo single-piston caliper at the rear.

What tyre sizes does the 2023 Triumph Street Triple RS use?

The 2023 Triumph Street Triple RS runs 120/70 ZR17 front and 180/55 ZR17 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

What gearbox does the 2023 Triumph Street Triple RS have?

The 2023 Triumph Street Triple RS is fitted with a 6 Speed with Triumph Shift Assist transmission.

Triumph Street Triple RS Spec Evolution

The Triumph Street Triple RS was produced across 4 model years (2020-2023). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	2020	2021	2022	2023
Max Power	121.3 hp / 123 PS / 90 kW @ 11,750 rpm	121.3 hp / 123 PS / 90 kW @ 11,750 rpm	121.3 hp / 90 kW @ 11750 rpm	128.2 hp / 95.6 kW @ 12000 rpm
Dry Weight	166 kg / 366 lbs	166 kg / 366 lbs	168 kg / 370.3 lbs	-
Engine Detail	Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder	Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder	Four stroke, in-line 3-cylinder, DOHC, 4 valve per cylinder	Four stroke, In-line 3-cylinder, DOHC, 4 valve per cylinder
Seat Height	825 mm / 32.5 in	825 mm / 32.5 in	825 mm / 32.5 in	836 mm / 32.9 in
Fuel Capacity	17.4 Litres / 4.6 US gal / 3.8 Imp gal	17.4 Litres / 4.6 US gal / 3.8 Imp gal	17.4 Litres / 4.6 US gal	15 Litres / 309 US gal
Frame Type	Front - Aluminum beam twin spar Rear - 2 piece high pressure die cast	Front - Aluminum beam twin spar Rear - 2 piece high pressure die cast	Front - Aluminum beam twin spar Rear - 2 piece high pressure die cast	Aluminium beam twin spar frame with 2 piece high pressure die cast rear subframe
Wheelbase	1405 mm / 55.3 in	1405 mm / 55.3 in	1405 mm / 55.3 in	1399 mm / 55.0 in
Brakes - Front	2 x 310mm floating discs, Brembo M50 4-piston monobloc calipers	2 x 310mm floating discs, Brembo M50 4-piston monobloc calipers	2 x 310mm floating discs, Brembo M50 4-piston radial monoblock calipers	2 x 310 mm floating discs, Brembo Stylema 4-piston radial monobloc calipers, OC-ABS, Brembo MCS radial master cylinder

Key Specifications

Engine

Four stroke, In-line 3-cylinder, DOHC, 4 valve per cylinder

Power

128.2 hp / 95.6 kW @ 12000 rpm

Torque

80 Nm / 59 lb-ft @ 9500 rpm

Top Speed

Not published by manufacturer

Weight

188 kg / 414.4 lbs

Fuel Capacity

15 Litres / 309 US gal

Full 2023 Triumph Street Triple RS Specifications

Year 2023

Make Model Triumph Street Triple RS

Seat Height 836 mm / 32.9 in

Wheelbase 1399 mm / 55.0 in

Height 1064 mm / 41.8 in

Length 2052 mm / 80.7 in

Width 792 mm /31.1 in

Fuel Capacity 15 Litres / 309 US gal

Wet Weight 188 kg / 414.4 lbs

Max Power 128.2 hp / 95.6 kW @ 12000 rpm

Max Torque 80 Nm / 59 lb-ft @ 9500 rpm

Displacement 765 cc / 46.6 cu-in

Engine Detail Four stroke, In-line 3-cylinder, DOHC, 4 valve per cylinder

Bore x Stroke 78 x 53.4 mm

Compression Ratio 13.25:1

Cooling System Liquid-cooled

Emissions Euro 5

Exhaust Stainless steel 3 into 1 header system with low single sided stainless steel silencer

Fuel Induction Multipoint sequential electronic fuel injection with electronic throttle control

Ignition Digital - inductive type

Lubrication Wet sump

Starter Electric

Clutch Wet, multi-plate, slip & assist

Final Drive X-ring chain

Transmission / Drive 6 Speed with Triumph Shift Assist

Frame Type Aluminium beam twin spar frame with 2 piece high pressure die cast rear subframe

Suspension - Front Showa 41 mm upside down Big Piston Forks (BPF), adjustable compression and rebound damping, and preload adjustment

Suspension - Rear Öhlins STX40 piggyback reservoir monoshock, adjustable compression and rebound damping, and preload adjustment

Rake 23.2°

Swingarm Twin-sided, cast aluminium alloy

Trail 96.9 mm / 3.8 in

Wheel Travel - Front 115 mm / 4.5 in

Wheel Travel - Rear 131.2 mm / 5.2 in

Brakes - Front 2 x 310 mm floating discs, Brembo Stylema 4-piston radial monobloc calipers, OC-ABS, Brembo MCS radial master cylinder

Brakes - Rear Single 220mm disc, Brembo single-piston caliper

ABS OC-ABS

Tyres - Front 120/70 ZR17

Tyres - Rear 180/55 ZR17

Wheels Cast aluminium alloy 5 spoke

Wheels - Front 3.5 x 17

Wheels - Rear 5.5 x 17

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
