Key Specifications
Engine
Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder
Power
96.5 hp / 70.5 kW @ 8500 rpm
Torque
95 Nm / 70.1 lb-ft @ 6500 rpm
Weight
209 kg / 460.7 lbs
Fuel Capacity
19.5 Litres / 5.1 gal

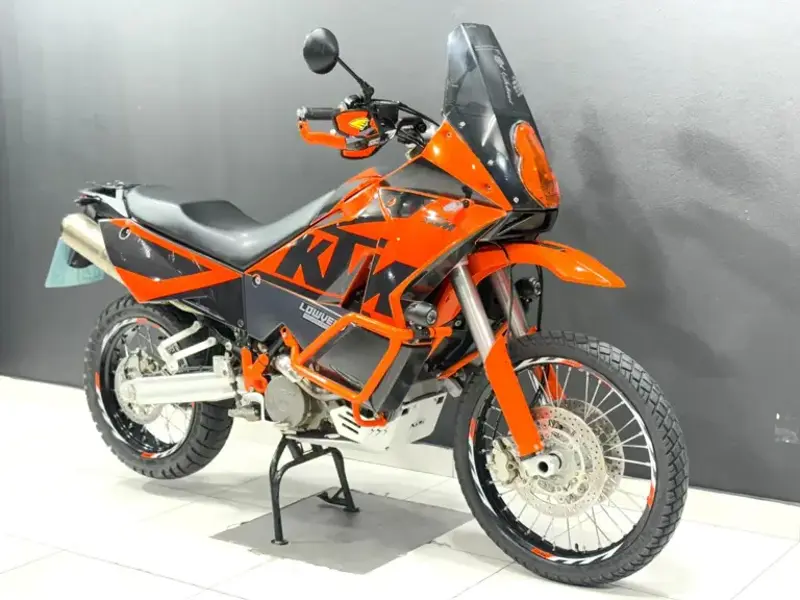

Full 2007 KTM 990 Adventure Specifications
Year
2007
Make Model
KTM 990 Adventure
Seat Height
860 mm / 33.8 in
Ground Clearance
261 mm / 9.0 in
Dry Weight (kg)
209
Dry Weight
209 kg / 460.7 lbs
Fuel Capacity
19.5 Litres / 5.1 gal
Displacement
999.8 cc / 60.9 cu-in
Engine Detail
Four stroke, 75°V-twin cylinder, DOHC, 4 valves per cylinder
Bore x Stroke
101 x 62.4mm
Compression Ratio
11.5;1
Cooling System
Liquid cooling
Engine Oil Specification
Motorex, SAE 10W-50
Exhaust
Twin stainless steel silencer with regulated catalytic converter
Fuel Consumption
15.2 km/lit
Fuel Induction
Keihin Electronic Fuel Injection EMS
Ignition
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment
Starter
Electric
Battery Capacity
12 V/11.2 Ah
Clutch
Wet Multi-disc hydraulically operated,
Final Drive
Chain, X-Ring 5/8 x 5/16"
Final Drive Ratio
16:42
Primary Drive
35:67
Transmission / Drive
6 Speed
Frame Type
Tubular cromoly spaced frame. powered coated
Suspension - Front
48mm WP USD forks
Suspension - Rear
WP-PDS rear shock, hydraulic spring preload
Handlebar
Aluminium, tapered, Ø 28/22 mm
Wheel Travel - Front
190 mm / 7.5 in
Wheel Travel - Rear
190 mm / 7.5 in
Brakes - Front
2x 300mm discs 2 piston calipers
Brakes - Rear
Single 240mm disc 1 piston caliper
Tyres - Front
90/90 -21
Tyres - Rear
150/70 -R18
