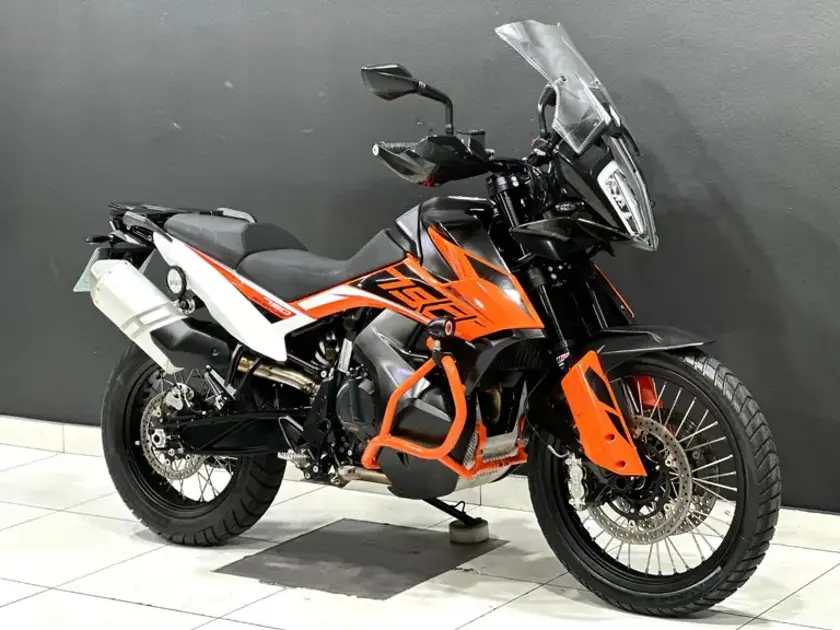

2019 KTM 790 Adventure R Overview
The 2019 KTM 790 Adventure R is an enduro / off-road motorcycle built around 799 cc of displacement. Under the tank sits a Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder engine. 2019 KTM 790 Adventure R delivers 94hp of peak power and 88 Nm of torque. From a practical standpoint, the 2019 790 Adventure R tips the scales at 203 kg, carries a 20-litre fuel tank, offers a seat height of 880 mm and spans a 1528 mm ± 15 mm wheelbase. Scroll down for the complete 2019 KTM 790 Adventure R spec sheet covering every technical detail from suspension travel to tyre sizes.
2019 790 Adventure R - Pros & Cons
Strengths
-
⚡
Strong power output: 2019 KTM 790 Adventure R makes 94hp with 88 Nm of torque - competitive figures for its class.
-
⛽
Large fuel range: The 20-litre tank is generously sized, translating to extended range between stops - ideal for touring or longer commutes.
Considerations
-
📏
Tall seat height: The 880 mm seat height will challenge shorter riders - tiptoeing at low speeds is something to factor into your decision.
-
⚙️
Chain final drive upkeep: Chain final drive needs regular cleaning, lubrication and tension checks to get full life out of the sprockets.
Wear Points & Servicing Notes
Cooling system servicing
The Liquid cooled system on the 790 Adventure R needs a coolant change roughly every two years (or per the service schedule) - skipping it lets the coolant turn acidic and corrode the aluminium water passages over time.
Brake disc and pad wear
The 2x 320mm discs. ABS front brake gives strong, progressive stopping power. Disc thickness and pad depth are worth checking at every tyre change, since worn pads can score the disc surface.
Suspension condition on used examples
Up front, the 790 Adventure R runs XPLOR 48mm WP upside-down forks and WP monoshock with PDS at the rear. On a used example, check fork seals for weeping oil and test the rear linkage for play - seals are a relatively cheap fix but useful when negotiating price.
Final drive maintenance
Final drive is by chain - expect to clean and lube it every few hundred kilometres and check tension regularly; a neglected chain wears the sprockets faster than the chain itself.
Frame & chassis check
The frame is CroMoly Tubular Steel, Engine as Stressed Member, Subframe: CroMoly Steel Trellis - worth a visual check for corrosion or impact damage around the head-stock and swingarm pivot on any used example, since frame damage is far costlier to fix than any service item.
790 Adventure R - Buying & Maintenance Guide
What to check before buying
When inspecting a used 2019 KTM 790 Adventure R, start with the basics: check the service book for oil change frequency, inspect the chain and sprockets for wear, and look for oil seepage around the engine casings and rocker covers. A cold start test is invaluable - a well-maintained 790 Adventure R should fire up cleanly and settle to a smooth idle within a few seconds.
Oil and filter changes
Regular oil changes are the single most important maintenance task on any 790 Adventure R. Stick to the manufacturer's interval - typically every 6,000 km or once a year, whichever comes first. Always use the correct viscosity grade as specified in the owner's manual.
Carburetor upkeep
Keep the carburetors clean and free of deposits. If the 790 Adventure R has been stored, strip and clean the carb float bowls before attempting to start it. Pilot jets are the first to block and the last to be checked - always include them in any carb rebuild.
2019 KTM 790 Adventure R - Frequently Asked Questions
What engine does the 2019 KTM 790 Adventure R have?
The 2019 KTM 790 Adventure R uses a Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder engine with 799 cc of displacement. It is liquid cooled.
How much does the 2019 KTM 790 Adventure R weigh?
The 2019 KTM 790 Adventure R weighs 203 kg. This is the manufacturer's wet figure.
How much power does the 2019 KTM 790 Adventure R make?
The 2019 KTM 790 Adventure R produces 94hp of power and 88 Nm of torque. These are peak figures.
What is the fuel tank capacity of the 2019 KTM 790 Adventure R?
The 2019 KTM 790 Adventure R has a 20-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 333-400 km between stops.
Is the 2019 KTM 790 Adventure R suitable for shorter riders?
The 2019 KTM 790 Adventure R has a seat height of 880 mm. This is towards the tall end of the spectrum and will require most riders under 175 cm to tiptoe at stops.
What brakes does the 2019 KTM 790 Adventure R have?
The 2019 KTM 790 Adventure R uses 2x 320mm discs. ABS at the front and Single 260mm disc. ABS at the rear.
What tyre sizes does the 2019 KTM 790 Adventure R use?
The 2019 KTM 790 Adventure R runs 90/90-21 front and 150/70-18 rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.
What gearbox does the 2019 KTM 790 Adventure R have?
The 2019 KTM 790 Adventure R is fitted with a 6 Speed transmission.
Key Specifications
Engine
Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder
Torque
88 Nm / 65 lb-ft @
Top Speed
Not published by manufacturer
Fuel Capacity
20 Litres / 5.3 US gal
Advertisement
Full 2019 KTM 790 Adventure R Specifications
Year
2019
Make Model
KTM 790 Adventure R
Seat Height
880 mm / 34.6 in
Wheelbase
1528 mm ± 15 mm / 60.2 ± 0.6 in
Ground Clearance
263 mm / 10.4 in
Dry Weight
189 kg / 416.7 lbs
Fuel Capacity
20 Litres / 5.3 US gal
Wet Weight
203 kg / 448 lbs
Displacement
799 cc / 48.7 cu-in
Engine Detail
Four stroke, parallel twin cylinder, DOHC, 4 valve per cylinder
Bore x Stroke
88 mm x 65.7 mm
Cooling System
Liquid cooled
Exhaust
Stainless steel primary and secondary silencer
Fuel Induction
DKK Dell'Orto, 46 mm Throttle Body
Ignition
Bosch EMS with Ride-By-Wire
Lubrication
Pressure Lubrication with Two Oil Pumps
Starter
Electric, 12V 10Ah
Clutch
PASC (Power Assisted Slipper Clutch), Mechanically Operated
Final Drive
Chain
Transmission / Drive
6 Speed
Frame Type
CroMoly Tubular Steel, Engine as Stressed Member, Subframe: CroMoly Steel Trellis
Suspension - Front
XPLOR 48mm WP upside-down forks.
Suspension - Rear
WP monoshock with PDS
Handlebar
Aluminum, Tapered, Ø 26/22 mm
Steering Head Angle
26.3°
Wheel Travel - Front
245 mm / 9.5 in
Wheel Travel - Rear
245 mm / 9.5 in
Brakes - Front
2x 320mm discs. ABS
Brakes - Rear
Single 260mm disc. ABS
Tyres - Front
90/90-21
Tyres - Rear
150/70-18
Wheels - Front
2.50 x 21",
Wheels - Rear
4.50 x 18"
Specifications are compiled from manufacturer documentation and cross-referenced
technical sources, and corrected on an ongoing basis.
