Key Specifications
Engine
Four stroke, single cylinder, SOHC, 4 valves per cylinder
Weight
106.5 kg / 234.7 lbs
Fuel Capacity
8.5 Litres / 2.2 US gal / 1,9 Imp gal

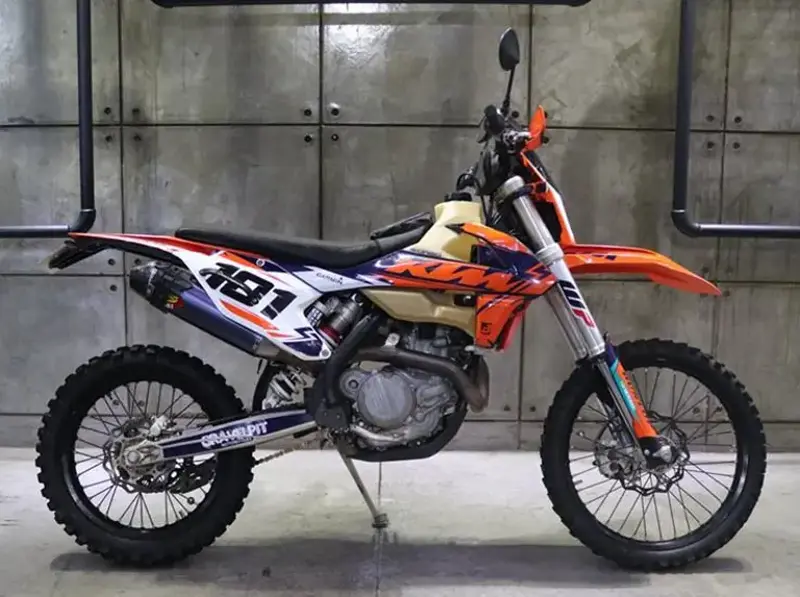

Full 2018 KTM 500 EXC-F Specifications
Year
2017 - 18
Make Model
KTM 500 EXC-F
Seat Height
960 mm . 37.7 in
Wheelbase
1482 ± 10 mm
Ground Clearance
355 mm / 13.9 in
Wet Weight (kg)
106.5
Fuel Capacity
8.5 Litres / 2.2 US gal / 1,9 Imp gal
Wet Weight
106.5 kg / 234.7 lbs
Displacement
510.4 cc / 31.1 cu-in
Engine Detail
Four stroke, single cylinder, SOHC, 4 valves per cylinder
Bore x Stroke
95 x 72 mm
Compression Ratio
11.9:1
Cooling System
Liquid cooled
Fuel Induction
Keihin MX FCR 39
Ignition
Contactless controlled fully electronic ignition with digital ignition adjustment, type Kokusan
Starter
Electric
Clutch
Multidisc clutch in oil bath, hydraulically activated
Final Drive
Chain 5/8 x 1/4"
Final Drive Ratio
13:50
Gear Ratios
1st 14:36 / 2nd 17:32 / 3rd 19:28 / 4th 22:26 / 5th 23:24 / 6th 26:21
Primary Drive Ratios
32:76
Transmission / Drive
6 Speed
Frame Type
Central double-cradle type 25CrMo4
Suspension - Front
WP Performance Systems MXMA 4860 upside down
Suspension - Rear
WP Performance Systems 4618 PDS DCC
Steering Head Angle
63.5
Wheel Travel - Front
300 mm / 11.8 in
Wheel Travel - Rear
310 mm / 12.2 in
Brakes - Front
Single 260 mm disc
Brakes - Rear
Single 220 mm disc
Tyres - Front
90/90 - 21
Tyres - Rear
120/90 - 18
