Key Specifications
Engine
Single cylinder, two-stroke
Fuel Capacity
0.55 US gallons

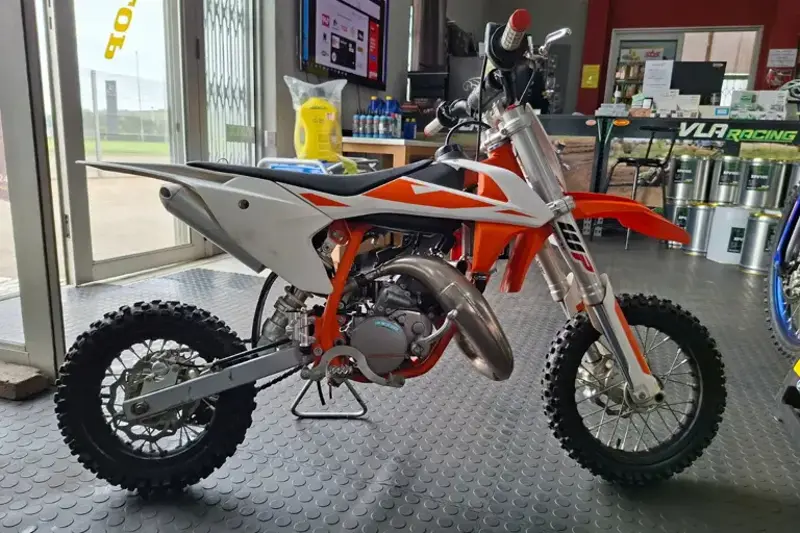

Full 2019 KTM 50 SX Mini Specifications
Comments
The engine power can be restricted to 5.5 hp with a kit.
Colours
Orange/white/black
Ground Clearance (in.)
9.9 inches
Ground Clearance (mm)
252 mm
Seat Height (in.)
26.9 inches
Seat Height (mm)
684 mm
Wheelbase (in.)
40.6 inches
Wheelbase (mm)
1032 mm
Dry Weight (kg)
40
Dry Weight (lbs.)
88.2 pounds
Fuel Capacity (gal.)
0.55 US gallons
Fuel Capacity (l)
2.10 litres
Bore x Stroke (in,)
1.6 x 1.6 inches
Bore x Stroke (mm)
39.5 x 40.0 mm
Displacement (cc)
49.0 cc
Displacement (ci)
2.99 cubic inches
Engine Type
Single cylinder, two-stroke
Engine Detail
Reed intake
Fuel System
Carburettor. Mikuni TMX
Engine Lubrication
Mixture oil lubrication
Ignition
Seletra 2p D36
Starter
Kick
Clutch
Centrifugal clutch
Final Drive
Chain (final drive)
Gearbox
1-speed
Wheel Travel - Front (in.)
3.9 inches
Wheel Travel - Front (mm)
100 mm
Wheel Travel - Rear (in.)
5.8 inches
Wheel Travel - Rear (mm)
147 mm
Frame Type
Chrome-molybdenum steel central-tube frame
Suspension - Front
WP upside-down Ø 35 mm
Suspension - Rear
WP shock absorber
Rake
24.0°
Brakes - Front
Single disc. Four-piston calipers.
Brakes - Rear
Single disc. Two-piston calipers.
Rims
Wire spoked
