Key Specifications
Engine
Four stroke, single cylinder, DOHC with finger followers, 4 valves
Power
44 hp / 32.8 kW @ 9000 rpm
Torque
37 Nm / 27.2 lb-ft@ 7000rpm
Weight
172 kg / 379 lbs fully fueled
Fuel Capacity
14.5 Litres / 3.8 US gal
Advertisement

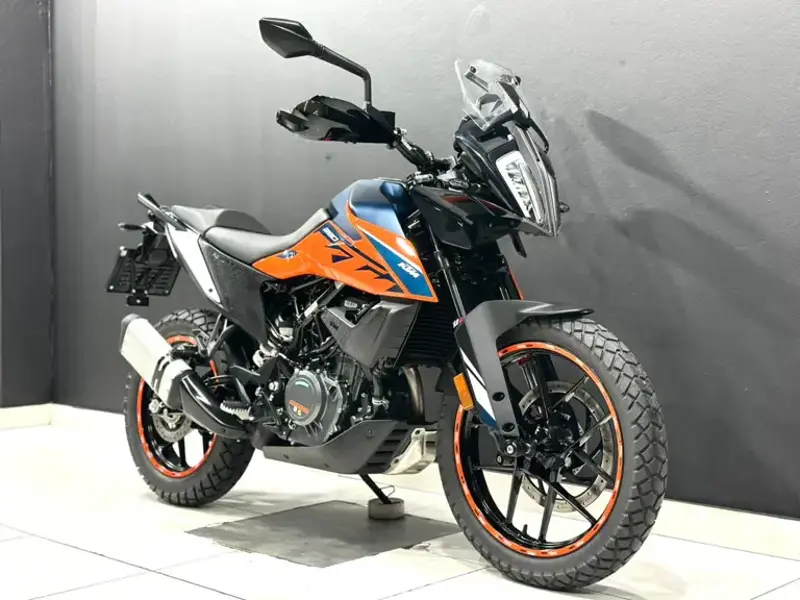

Full 2023 KTM 390 Adventure Specifications
Year
2023
Make Model
KTM 390 Adventure
Seat Height
830 - 855 mm / 32.6 in - 33.6 in
Wheelbase
1430 ± 15.5 mm / 56.3 in ± 0.6 in
Ground Clearance
200 mm / 7.8 in
Fuel Capacity
14.5 Litres / 3.8 US gal
Wet Weight
172 kg / 379 lbs fully fueled
Displacement
373 cc / 22.7 cu-in
Engine Detail
Four stroke, single cylinder, DOHC with finger followers, 4 valves
Bore x Stroke
89 x 60 mm
Compression Ratio
12.6:1
Cooling System
Liquid Cooled
Emissions
Euro 5
Engine Management
Bosch EMS with RBW
Exhaust
Stainless steel primary and aluminium secondary silencer
Fuel Induction
Bosch EFI throttle body 38 mm
Lubrication
Wet sump
Starter
Electric
Clutch
PASC antihopping clutch, mechanically operated
Final Drive
Chain X-Ring 520
Final Drive Ratio
15:45
Primary Drive Ratios
30:80
Transmission / Drive
6 Speed
Frame Type
Steel trellis frame, powder coated, Subframe Steel trellis frame, powder coated
Suspension - Front
43 mm WP APEX inverted fork
Suspension - Rear
WP APEX shock absorber, adjustbable rebound and spring preload
Steering Head Angle
63.5°
Trail
98 mm / 3.8 in
Wheel Travel - Front
170 mm / 6.7 in
Wheel Travel - Rear
177 mm / 7.0 in
Brakes - Front
Single 320 mm disc, 4 piston, radially mounted caliper
Brakes - Rear
Single 230 mm disc 2 piston caliper
ABS
Bosch 9.1 MP (incl. Cornering-ABS and offroad mode, disengageable)
Rims - Front
2.50 x 19
Rims - Rear
3.50 x 17
Tyres - Front
100/90 ZR 19
Tyres - Rear
130/80 ZR 17
Wheels
Spoked wheels or cast wheels - black/orange or blue/orange
