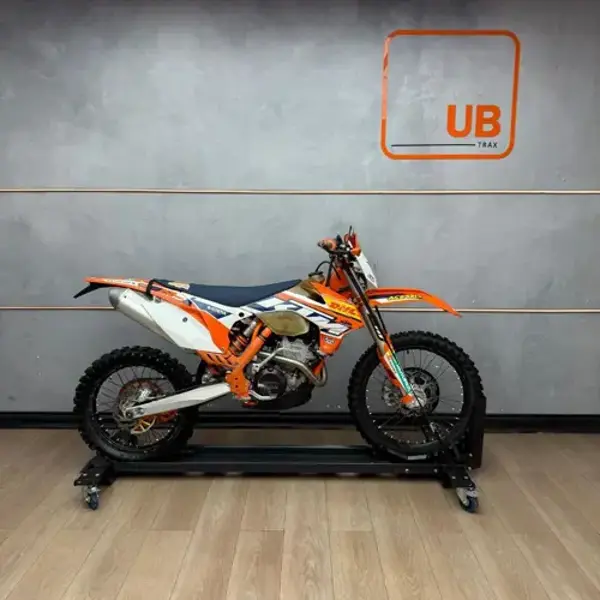

2016 KTM 250 EXC-F Overview
KTM 250 EXC-F is an enduro / off-road motorcycle, displacing 248.6 cc. Power comes from a Four stroke, single cylinder, DOHC with finger followers, 4 valves engine, a compression ratio of 13.2:1. On the road, the 2016 250 EXC-F tips the scales at 105.5 kg, carries a 9-litre fuel tank, offers a seat height of 970 mm and spans a 1482 mm wheelbase. That's roughly 93.3 kg lighter than the average enduro / off-road motorcycle in our database. The full 2016 KTM 250 EXC-F spec sheet below covers every technical detail, from suspension travel to tyre sizes.
2016 250 EXC-F - Pros & Cons
Strengths
-
✓
Factory engineering: KTM built the 250 EXC-F around a straightforward, purposeful specification rather than chasing any single standout feature.
Considerations
-
📏
Tall seat height: At 970 mm, shorter riders will likely be on tiptoes at a standstill - worth sitting on one before you buy.
-
⛽
Modest fuel capacity: Range between stops is limited by the 9-litre tank - plan fuel stops accordingly on longer routes.
-
⚙️
Chain final drive upkeep: Budget time for routine chain maintenance - it's cheap to replace but needs consistent attention to avoid premature sprocket wear.
Wear Points & Servicing Notes
Cooling system servicing
250 EXC-F's Liquid cooled setup is low-maintenance provided the coolant interval is kept - old, acidic coolant is the main cause of long-term corrosion in the water passages.
Brake disc and pad wear
Braking up front comes from Single 260 mm disc, 2 piston caliper - solid stopping power, with disc and pad wear best checked on the same schedule as tyre changes.
Suspension condition on used examples
The 250 EXC-F's suspension runs WP Suspension Up Side Down 4860 MXMA PA at the front. The rear uses WP-PDS 5018 DCC shock absorber. Fork-seal condition and rear linkage play are the two things worth checking before buying used.
Final drive maintenance
The 250 EXC-F uses chain final drive, which is cheap to replace but needs regular cleaning, lubrication and tension checks to get a full service life out of the sprockets.
Frame & chassis check
Built around a Central tube frame made of chrome molybdenum steel tubing, the 250 EXC-F's chassis is straightforward to inspect: look for corrosion, cracks or repair welds around stress points like the head-stock and swingarm mounts.
Low-speed handling
105.5 kg keeps the 250 EXC-F easy to move around in tight spaces, car parks and on the stand alike.
250 EXC-F - Buying & Maintenance Guide
What to check before buying
Before handing over money for a used 2016 KTM 250 EXC-F, cover the fundamentals: service book and oil change history, chain and sprocket wear, and any sign of oil weeping around the casings. Cold-starting it yourself tells you a lot - a healthy 250 EXC-F should catch quickly and settle into a smooth idle.
Oil and filter changes
Nothing protects a 250 EXC-F's engine like disciplined oil changes - stay on the manufacturer's schedule (roughly every 6,000 km or annually). Match the viscosity grade to what the owner's manual specifies, not what's cheapest.
Carburetor upkeep
Deposits in the carbs are the usual culprit behind poor running on a stored 250 EXC-F - strip and clean the float bowls before the first start. Pilot jets clog first and get overlooked most, so make a point of checking them.
2016 KTM 250 EXC-F - Frequently Asked Questions
What engine does the 2016 KTM 250 EXC-F have?
The 2016 KTM 250 EXC-F uses a Four stroke, single cylinder, DOHC with finger followers, 4 valves engine with 248.6 cc of displacement. It is liquid cooled.
How much does the 2016 KTM 250 EXC-F weigh?
The 2016 KTM 250 EXC-F weighs 105.5 kg. This is the manufacturer's dry figure.
What is the fuel tank capacity of the 2016 KTM 250 EXC-F?
The 2016 KTM 250 EXC-F has a 9-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 150-180 km between stops.
Is the 2016 KTM 250 EXC-F suitable for shorter riders?
The 2016 KTM 250 EXC-F has a seat height of 970 mm. This is towards the tall end of the spectrum and will require most riders under 175 cm to tiptoe at stops.
What brakes does the 2016 KTM 250 EXC-F have?
The 2016 KTM 250 EXC-F uses Single 260 mm disc, 2 piston caliper at the front and Single 220 mm disc, 1 piston caliper at the rear.
What tyre sizes does the 2016 KTM 250 EXC-F use?
The 2016 KTM 250 EXC-F runs 90/90 - 21 M/C 54M M+S TT front and 120/80 - 18 M/C 65M M+S TT rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.
What gearbox does the 2016 KTM 250 EXC-F have?
The 2016 KTM 250 EXC-F is fitted with a 6 Speed transmission.
KTM 250 EXC-F Spec Evolution
The KTM 250 EXC-F was produced across 4 model years (2012-2017). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.
| Specification |
2012 |
2013 |
2016 |
2017 |
| Dry Weight |
107.5 kg / 237 lbs |
107.5 kg / 237 lbs |
105.5 kg / 232.6 lbs |
103kg / 227.1 lbs |
| Seat Height |
970 mm / 38.2 in |
970 mm / 38.2 in |
970 mm / 38.2 in |
960 mm / 37.8 in |
| Fuel Capacity |
9.5 Litres / 2.5 US gal |
9.5 Litres / 2.5 US gal |
9 Litres / 2.38 US gal |
8.5 Litres / 2.25 US gal |
| Displacement |
248.6 cc / 15.2 cu-in |
248.6 cc / 15.2 cu-in |
248.6 cc / 15.2 cu-in |
249 cc / 15.2 cu-in |
| Wheelbase |
1482 mm / 58.4 in |
1482 mm / 58.4 in |
1482 mm / 58.4 in |
1482 mm / 58.3 in |
| Ground Clearance |
345 mm / 13.6 in |
345 mm / 13.6 in |
345 mm / 13.6 in |
355 mm / 14 in |
| Suspension - Front |
WP Suspension Up Side Down 4860 MXMA PA |
WP Suspension Up Side Down 4860 MXMA PA |
WP Suspension Up Side Down 4860 MXMA PA |
48mm WP-USD Xplor with preload adjuster |
| Suspension - Rear |
WP-PDS 5018 DCC shock absorber |
WP-PDS 5018 DCC shock absorber |
WP-PDS 5018 DCC shock absorber |
WP Xplor PDS shock absorber |
Key Specifications
Engine
Four stroke, single cylinder, DOHC with finger followers, 4 valves
Power
Not published by manufacturer
Torque
Not published by manufacturer
Top Speed
Not published by manufacturer
Weight
105.5 kg / 232.6 lbs
Fuel Capacity
9 Litres / 2.38 US gal
Advertisement
Full 2016 KTM 250 EXC-F Specifications
Year
2014 - 16
Make Model
KTM 250 EXC-F
Seat Height
970 mm / 38.2 in
Wheelbase
1482 mm / 58.4 in
Ground Clearance
345 mm / 13.6 in
Dry Weight
105.5 kg / 232.6 lbs
Fuel Capacity
9 Litres / 2.38 US gal
Displacement
248.6 cc / 15.2 cu-in
Engine Detail
Four stroke, single cylinder, DOHC with finger followers, 4 valves
Bore x Stroke
78 x 52.3 mm
Compression Ratio
13.2:1
Cooling System
Liquid cooled
Fuel Induction
Keihin EFI, flow restrictor, 42 mm
Ignition
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan
Lubrication
Forced oil lubrication with 2 Eaton pumps
Starter
Kick and electric
Battery Capacity
YTX4L-BS, 12V 3Ah
Clutch
Wet multi-disc clutch, hydraulically operated
Final Drive
Chain, 5/8 x 1/4 in
Final Drive Ratio
14:52 (13:52)
Primary Drive Ratios
24:73
Transmission / Drive
6 Speed
Frame Type
Central tube frame made of chrome molybdenum steel tubing
Suspension - Front
WP Suspension Up Side Down 4860 MXMA PA
Suspension - Rear
WP-PDS 5018 DCC shock absorber
Rake
26.5°
Steering Head Angle
63.5°
Wheel Travel - Front
300 mm / 11.8 in
Wheel Travel - Rear
335 mm / 13.2 in
Brakes - Front
Single 260 mm disc, 2 piston caliper
Brakes - Rear
Single 220 mm disc, 1 piston caliper
Tyres - Front
90/90 - 21 M/C 54M M+S TT
Tyres - Rear
120/80 - 18 M/C 65M M+S TT
Specifications are compiled from manufacturer documentation and cross-referenced
technical sources, and corrected on an ongoing basis.
