Key Specifications
Engine
Single cylinder, two-stroke
Weight
91.5 kg / 201.7 lbs
Fuel Capacity
9.50 litres / 2.51 gallons
Advertisement

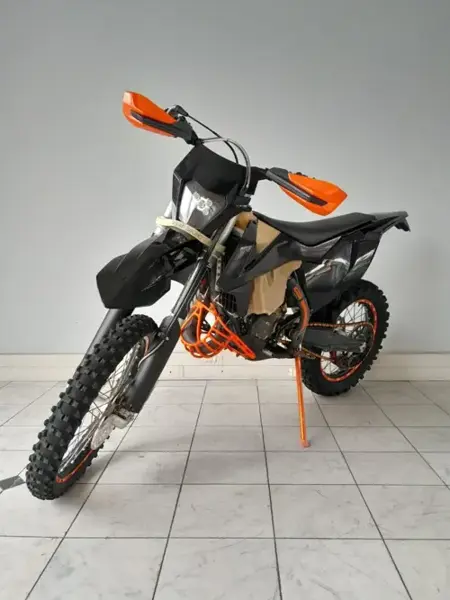

Full 2017 KTM 150 XC-W Specifications
Colours
Orange/white/black
Ground Clearance (in.)
14.6 inches
Ground Clearance (mm)
370 mm
Seat Height
960 mm / 37.8 in.
Wheelbase
1,471 mm / 57.9 in.
Dry Weight
91.5 kg / 201.7 lbs
Fuel Capacity
9.50 litres / 2.51 gallons
Bore x Stroke (in,)
2.3 x 2.1 inches
Bore x Stroke (mm)
58.0 x 54.5 mm
Displacement (cc)
143.90 cc
Displacement (ci)
8.78 cubic inches
Engine Type
Single cylinder, two-stroke
Engine Detail
Reed intake.
Fuel System
Carburettor
Ignition
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan
Starter
Kick
Clutch
Multi-plate clutch, Brembo hydraulics
Final Drive
Chain
Gearbox
6-speed
Primary Drive
14:50. Primary drive: 23:73.
Frame Type
25CrMo4 steel central-tube frame
Suspension - Front
WP XPlor 48 upside-down fork
Suspension - Rear
WP Xplor PDS shock absorber
Rake
26.5°
Wheel Travel - Front
300 mm / 11.8 in.
Wheel Travel - Rear
310 mm / 12.2 in.
Brakes - Front Diameter (in.)
10.2 inches
Brakes - Front Diameter (mm)
260 mm
Brakes - Rear Diameter (in.)
8.7 inches
Brakes - Rear Diameter (mm)
220 mm
Brakes - Front
Single disc. Four-piston calipers.
Brakes - Rear
Single disc. Two-piston calipers.
