Key Specifications
Power
38 hp / 28.3 kW @ 11,000rpm
Torque
19.9 lb-ft / 26.9 Nm @ 10,000rpm
Fuel Capacity
4.49 gallons

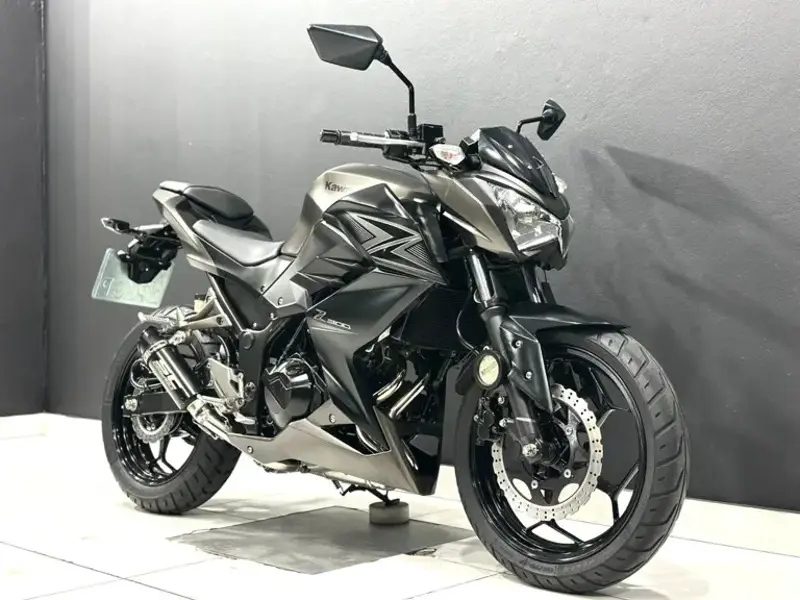

Full 2016 Kawasaki Z 300 Specifications
Comments
ABS brakes adds 2 kg.
Comments
ABS brakes adds 2 kg.
Year
2015 - 16
Colours
Candy Flat Blazed Green/Metallic Spark Black, Metallic Spa
Colours
Green/black, Grey/black
Make Model
Kawasaki Z 300
Width (mm)
750 mm
Width (in.)
29.5 inches
Wheelbase (mm)
1,405 mm
Wheelbase (in.)
55.3 inches
Seat Height (mm)
785 mm
Seat Height (in.)
30.9 inches
Length (mm)
2,015 mm
Length (in.)
79.3 inches
Height (mm)
1,025 mm
Height (in.)
40.4 inches
Ground Clearance (mm)
145 mm
Ground Clearance (in.)
5.7 inches
Width (mm)
750 mm
Width (in.)
29.5 inches
Wheelbase (mm)
1,405 mm
Wheelbase (in.)
55.3 inches
Seat Height (mm)
785 mm
Seat Height (in.)
30.9 inches
Length (mm)
2,015 mm
Length (in.)
79.3 inches
Height (mm)
1,025 mm
Height (in.)
40.4 inches
Ground Clearance (mm)
145 mm
Ground Clearance (in.)
5.7 inches
Seat Height
780 mm / 30.5 in
Height
1025 mm / 41.3 in
Length
2010 mm / 79.1 in
Width
750 mm / 29.5 in
Fuel Capacity (gal.)
4.49 gallons
Fuel Capacity (l)
17.00 litres
Wet Weight (lbs.)
370.4 pounds
Fuel Capacity (gal.)
4.49 gallons
Fuel Capacity (l)
17.00 litres
Wet Weight (kg)
168.0 kg
Wet Weight (kg)
168.0 kg
Wet Weight (lbs.)
370.4 pounds
Fuel Capacity
17 Litres / 4.5 US gal
Wet Weight
168 kg / 370 lbs
Displacement (ci)
18.06 cubic inches
Displacement (cc)
296.00 cc
Engine Type
Twin, four-stroke
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Bore x Stroke (mm)
62.0 x 49.0 mm
Bore x Stroke (in,)
2.4 x 1.9 inches
Bore x Stroke (in,)
2.4 x 1.9 inches
Bore x Stroke (mm)
62.0 x 49.0 mm
Fuel Control
Double Overhead Cams/Twin Cam (DOHC)
Engine Type
Twin, four-stroke
Displacement (cc)
296.00 cc
Displacement (ci)
18.06 cubic inches
Displacement
296 cc / 18.0 cu-in
Engine Detail
Four stroke . parallel twin, DOHC, 4 valves per cylinder.
Engine Detail
Die-cast aluminium cylinder and lightweight coated pistons
Fuel System
Injection. 32 mm x 2, with dual throttle valves
Fuel System
Injection. 32 mm x 2, with dual throttle valves
Bore x Stroke
62 x 49 mm
Compression Ratio
10.6:1
Compression Ratio
10.6:1
Cooling System
Liquid cooled,
Engine Lubrication
Forced lubrication, wet sump
Engine Lubrication
Forced lubrication, wet sump
Fuel Induction
Fuel injection: Ø32 mm x 2 (Keihin), with dual throttle valves
Ignition
TCBI with Digital Advance
Ignition
Digital
Lubrication
Forced lubrication, wet sump
Starter
Electric
Starter
Electric
Valve System
4
Valve System
4
Clutch
Wet multi-disc, manual
Clutch
Wet multi-disc, manual
Final Drive
Chain
Final Drive
Chain
Gear Ratios
1st 2.600 (39/15) 2nd 1.789 (34/19) 3rd 1.409 (31/22) 4th 1.160 (29/25) 5th 1.000 (27/27) 6th 0.893 (25/28)
Gearbox
6-speed
Gearbox
6-speed
Primary Drive Ratios
3,087 (71/23)
Transmission / Drive
6 Speed
Trail (in.)
3.2 inches
Wheel Travel - Rear (mm)
132 mm
Wheel Travel - Rear (in.)
5.2 inches
Wheel Travel - Front (mm)
119 mm
Wheel Travel - Front (in.)
4.7 inches
Trail (mm)
82 mm
Trail (in.)
3.2 inches
Trail (mm)
82 mm
Wheel Travel - Rear (mm)
132 mm
Wheel Travel - Rear (in.)
5.2 inches
Wheel Travel - Front (mm)
119 mm
Wheel Travel - Front (in.)
4.7 inches
Frame Type
Tube diamond, steel
Frame Type
Semi-double cradle, high-tensile steel,
Suspension - Front
37 mm telescopic fork
Suspension - Front
37mm hydraulic telescopic fork
Suspension - Rear
Bottom-Link Uni-Trak with gas-charged shock and adjustable preload
Suspension - Rear
Bottom-Link Uni-Trak with gas-charged shock and 5-way adjustable preload
Rake
26.0°
Rake
26°
Trail
82 mm / 3.6 in
Brakes - Rear Diameter (mm)
220 mm
Brakes - Rear Diameter (in.)
8.7 inches
Brakes - Front Diameter (mm)
290 mm
Brakes - Front Diameter (in.)
11.4 inches
Brakes - Rear Diameter (mm)
220 mm
Brakes - Rear Diameter (in.)
8.7 inches
Brakes - Front Diameter (mm)
290 mm
Brakes - Front Diameter (in.)
11.4 inches
Brakes - Front
Single disc. Optional ABS.
Brakes - Front
Single 290 mm petal disc 2 piston caliper
Brakes - Rear
Single disc. Optional ABS.
Brakes - Rear
Single 220 mm petal disc 2 piston caliper
Tyres - Front
110/70-17
Tyres - Front
110/70-17
Tyres - Rear
140/70-17
Tyres - Rear
130/70-17
