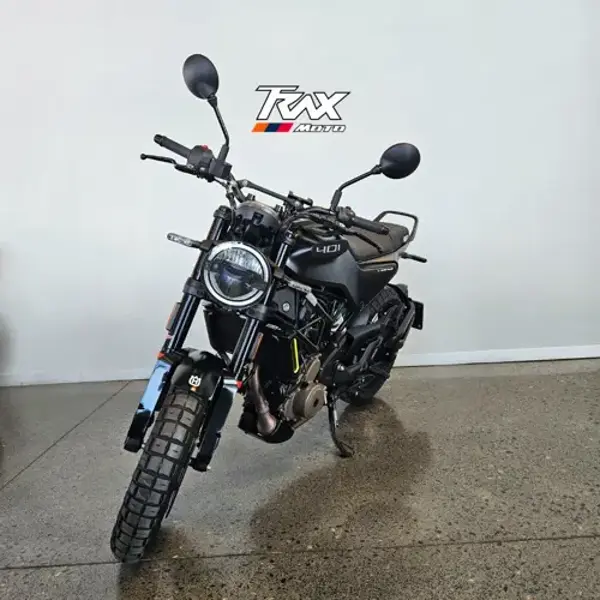

2022 Husqvarna Svartpilen 401 Specifications

Name: 2022 Husqvarna Svartpilen 401
Brand: Husqvarna

Naked bike • Specs last verified 13 July 2026

No images available

Tap to enlarge

2022 Husqvarna Svartpilen 401 Overview

Husqvarna Svartpilen 401 is a naked bike motorcycle, displacing 373.2 cc. Power comes from a Four stroke, single cylinder, DOHC with cam levers, 4 valves engine, a compression ratio of 12.6:1. On the performance side, it delivers 44 hp @ 9000 rpm of peak power and 37 Nm @ 7000 rpm of torque. On the road, the 2022 Svartpilen 401 tips the scales at 152 kg, carries a 9.5-litre fuel tank, offers a seat height of 835 mm and spans a 1357 ± 15.5 mm wheelbase. That's roughly 56.5 kg lighter than the average naked bike motorcycle in our database. The full 2022 Husqvarna Svartpilen 401 spec sheet below covers every technical detail, from suspension travel to tyre sizes.

2022 Svartpilen 401 - Pros & Cons

Strengths

Strong power output: With 44 hp @ 9000 rpm and 37 Nm @ 7000 rpm of torque on tap, the Svartpilen 401 is no slouch for its class.

Considerations

Tall seat height: At 835 mm, shorter riders will likely be on tiptoes at a standstill - worth sitting on one before you buy.
Modest fuel capacity: Range between stops is limited by the 9.5-litre tank - plan fuel stops accordingly on longer routes.
Chain final drive upkeep: Budget time for routine chain maintenance - it's cheap to replace but needs consistent attention to avoid premature sprocket wear.

Wear Points & Servicing Notes

Cooling system servicing

Svartpilen 401's Liquid cooled setup is low-maintenance provided the coolant interval is kept - old, acidic coolant is the main cause of long-term corrosion in the water passages.

Brake disc and pad wear

Braking up front comes from Single 320mm disc, ByBre 4 piston caliper - solid stopping power, with disc and pad wear best checked on the same schedule as tyre changes.

Suspension condition on used examples

The Svartpilen 401's suspension runs 43mm WP APEX upside-down forks, with compression rebound adjustability at the front. The rear uses WP APEX monoshock with preload adjustability. Fork-seal condition and rear linkage play are the two things worth checking before buying used.

Final drive maintenance

The Svartpilen 401 uses chain final drive, which is cheap to replace but needs regular cleaning, lubrication and tension checks to get a full service life out of the sprockets.

Frame & chassis check

Built around a Steel trellis frame, powder coated, the Svartpilen 401's chassis is straightforward to inspect: look for corrosion, cracks or repair welds around stress points like the head-stock and swingarm mounts.

Svartpilen 401 - Buying & Maintenance Guide

What to check before buying

Before handing over money for a used 2022 Husqvarna Svartpilen 401, cover the fundamentals: service book and oil change history, chain and sprocket wear, and any sign of oil weeping around the casings. Cold-starting it yourself tells you a lot - a healthy Svartpilen 401 should catch quickly and settle into a smooth idle.

Oil and filter changes

Nothing protects a Svartpilen 401's engine like disciplined oil changes - stay on the manufacturer's schedule (roughly every 6,000 km or annually). Match the viscosity grade to what the owner's manual specifies, not what's cheapest.

Carburetor upkeep

Deposits in the carbs are the usual culprit behind poor running on a stored Svartpilen 401 - strip and clean the float bowls before the first start. Pilot jets clog first and get overlooked most, so make a point of checking them.

2022 Husqvarna Svartpilen 401 - Frequently Asked Questions

What engine does the 2022 Husqvarna Svartpilen 401 have?

The 2022 Husqvarna Svartpilen 401 uses a Four stroke, single cylinder, DOHC with cam levers, 4 valves engine with 373.2 cc of displacement. It is liquid cooled.

How much does the 2022 Husqvarna Svartpilen 401 weigh?

The 2022 Husqvarna Svartpilen 401 weighs 152 kg. This is the manufacturer's dry figure.

How much power does the 2022 Husqvarna Svartpilen 401 make?

The 2022 Husqvarna Svartpilen 401 produces 44 hp @ 9000 rpm of power and 37 Nm @ 7000 rpm of torque. These are peak figures.

What is the fuel tank capacity of the 2022 Husqvarna Svartpilen 401?

The 2022 Husqvarna Svartpilen 401 has a 9.5-litre fuel tank. At around 5-6 litres per 100 km, that is roughly 158-190 km between stops.

Is the 2022 Husqvarna Svartpilen 401 suitable for shorter riders?

The 2022 Husqvarna Svartpilen 401 has a seat height of 835 mm. This is towards the tall end of the spectrum and will require most riders under 175 cm to tiptoe at stops.

What brakes does the 2022 Husqvarna Svartpilen 401 have?

The 2022 Husqvarna Svartpilen 401 uses Single 320mm disc, ByBre 4 piston caliper at the front and Single 230mm disc, ByBre, single piston, floating caliper at the rear.

What tyre sizes does the 2022 Husqvarna Svartpilen 401 use?

The 2022 Husqvarna Svartpilen 401 runs 110/70-R17 Pirelli Scorpion Rally STR front and 150/60-R17 Pirelli Scorpion Rally STR rear tyres. A good selection of sport, touring and all-weather rubber is available in these sizes.

What gearbox does the 2022 Husqvarna Svartpilen 401 have?

The 2022 Husqvarna Svartpilen 401 is fitted with a 6 Speed transmission.

Husqvarna Svartpilen 401 Spec Evolution

The Husqvarna Svartpilen 401 was produced across 4 model years (2019-2024). The table below highlights the key specifications that changed across the production run - useful whether you are comparing years or tracking down a specific variant.

Specification	2019	2021	2022	2024
Max Power	43 hp / 32 kW @ 9000 rpm	43 hp / 32 kW @ 9000 rpm	44 hp / 32 kW @ 9000 rpm	33 kW / 45 hp @ 8500 rpm
Dry Weight	152 kg / 335.6 lbs	152 kg / 335.6 lbs	152 kg / 335.6 lbs	159 kg / 350 lbs
Engine Detail	Four stroke, single cylinder, DOHC, 4 valve	Four stroke, single cylinder, DOHC, 4 valve	Four stroke, single cylinder, DOHC with cam levers, 4 valves	Four stroke, single cylinder, DOHC with cam levers, 4 valves
Seat Height	835 mm / 32.8 in	835 mm / 32.8 in	835 mm / 32.8 in	820 mm / 32.3 in
Fuel Capacity	9.5 Litres / 2.5 US gal	9.5 Litres / 2.5 US gal	9.5 Litres / 2.5 US gal	13 Litres / 3.4 US gal
Displacement	373.2 cc / 22.8 cu-in	373.2 cc / 22.8 cu-in	373.2 cc / 22.8 cu-in	398.6 cc / 24.3 cu in
Brakes - Front	Single 320mm disc, 4 piston floating calliper	Single 320mm disc, 4 piston floating calliper	Single 320mm disc, ByBre 4 piston caliper	Single 320mm disc, ByBre opposed 4 piston caliper
Wheelbase	1357 ± 15.5 mm / 53.4 in	1357 ± 15.5 mm / 53.4 in	1357 ± 15.5 mm / 53.4 in	1368 ± 15.5 mm / 53.8 ±0.6 in

Key Specifications

Engine

Four stroke, single cylinder, DOHC with cam levers, 4 valves

Power

44 hp / 32 kW @ 9000 rpm

Torque

37 Nm / 27.3 lb-ft @ 7000 rpm

Top Speed

Not published by manufacturer

Weight

152 kg / 335.6 lbs

Fuel Capacity

9.5 Litres / 2.5 US gal

Full 2022 Husqvarna Svartpilen 401 Specifications

Year 2022

Make Model Husqvarna Svartpilen 401

Seat Height 835 mm / 32.8 in

Wheelbase 1357 ± 15.5 mm / 53.4 in

Ground Clearance 145 mm / 5.6 in

Dry Weight 152 kg / 335.6 lbs

Fuel Capacity 9.5 Litres / 2.5 US gal

Max Power 44 hp / 32 kW @ 9000 rpm

Max Torque 37 Nm / 27.3 lb-ft @ 7000 rpm

Displacement 373.2 cc / 22.8 cu-in

Engine Detail Four stroke, single cylinder, DOHC with cam levers, 4 valves

Bore x Stroke 89 x 60 mm

Compression Ratio 12.6:1

Cooling System Liquid cooled

Emissions EURO 5

Engine Management Bosch EMS

Exhaust Stainless steel / Aluminium silencer with regulated catalytic converter

Fuel Induction Bosch EFI (throttle body 46 mm)

Lubrication Wet sump with 2 oil pumps

Starter Electric

Clutch Multi disc slipper clutch

Final Drive Chain, X-Ring 5/8 x 1/4″

Final Drive Ratio 15:45

Primary Drive Ratios 30:80

Transmission / Drive 6 Speed

Frame Type Steel trellis frame, powder coated

Suspension - Front 43mm WP APEX upside-down forks, with compression rebound adjustability

Suspension - Rear WP APEX monoshock with preload adjustability

Clamp Offset - Triple 32 mm / 1.8 in

Rake 25°

Steering Head Angle 65°

Trail 95 mm / 3.7 in

Wheel Travel - Front 142 mm / 5.6 in

Wheel Travel - Rear 142 mm / 5.6 in

Brakes - Front Single 320mm disc, ByBre 4 piston caliper

Brakes - Rear Single 230mm disc, ByBre, single piston, floating caliper

ABS Two channel Bosch 10.1MB

Tyres - Front 110/70-R17 Pirelli Scorpion Rally STR

Tyres - Rear 150/60-R17 Pirelli Scorpion Rally STR

Wheels Spoked wheels with aluminium rims

Wheels - Front 3.00 x 17

Wheels - Rear 4.00 x 17

Specifications are compiled from manufacturer documentation and cross-referenced technical sources, and corrected on an ongoing basis. Spot an error? Let us know.
